S331M-ZMGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1711)S331

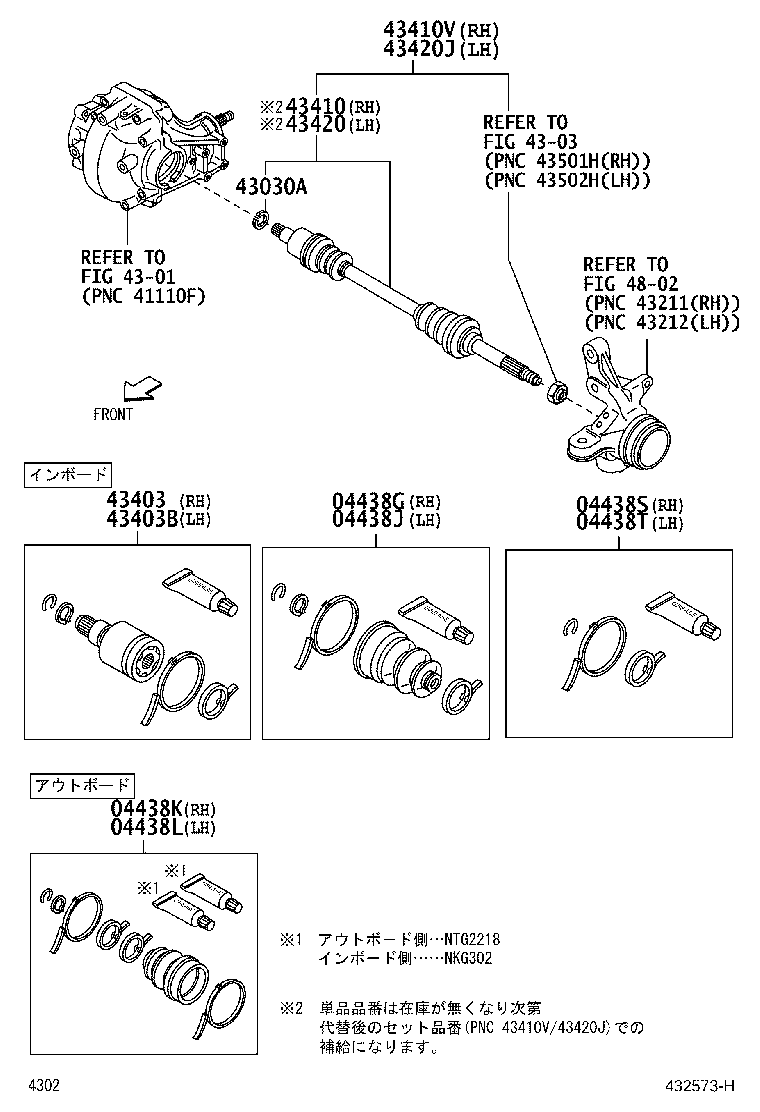

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-B5010 |
S331..PS2 |
1 | ||
| 04437-B2010 |
S331 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-B2010 |
S331..PS2 NTN |
1 | ||
| 04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH | ||||
| 04425-B5050 |
S331..PS2 NTN |
1 | ||
| 04425-B5040 |
S331 NTN |
1 | ||
| 04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH | ||||
| 04425-B5040 |
S331..PS2 NTN |
1 | ||
| 04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH | ||||
| 04435-B5010 |
S331..PS2 |
1 | ||
| 04435-B2010 |
S331 |
1 | ||
| 04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH | ||||
| 04435-B2010 |
S331..PS2 NTN |
1 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90045-20298 |
S331..PS2 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43408-B9490 |
S331 |
1 | ||
| 43408-B9310 |
S331..PS2 |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43408-B9320 |
S331..PS2 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-B5080 |
S331..CR 外径=20 (ｼｬﾌﾄ ｻｲｽﾞ) |
1 | ||
| 43410-B5041 |
S331..CR..PS2 外径=20 (ｼｬﾌﾄ ｻｲｽﾞ) |
1 | ||
| 43410V - SHAFT SET, FRONT DRIVE, RH | ||||
| 43410-B9760 |
S331..CR..PS2 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-B5041 |
S331..CR..PS2 外径=20 (ｼｬﾌﾄ ｻｲｽﾞ) |
1 | ||
| 43420-B5080 |
S331..CR 外径=20 (ｼｬﾌﾄ ｻｲｽﾞ) |
1 | ||
| 43420J - SHAFT SET, FRONT DRIVE, LH | ||||
| 43420-B9680 |
S331..CR..PS2 |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
| 4303 | ||||
| 4802 | ||||
