S331M-ZMGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

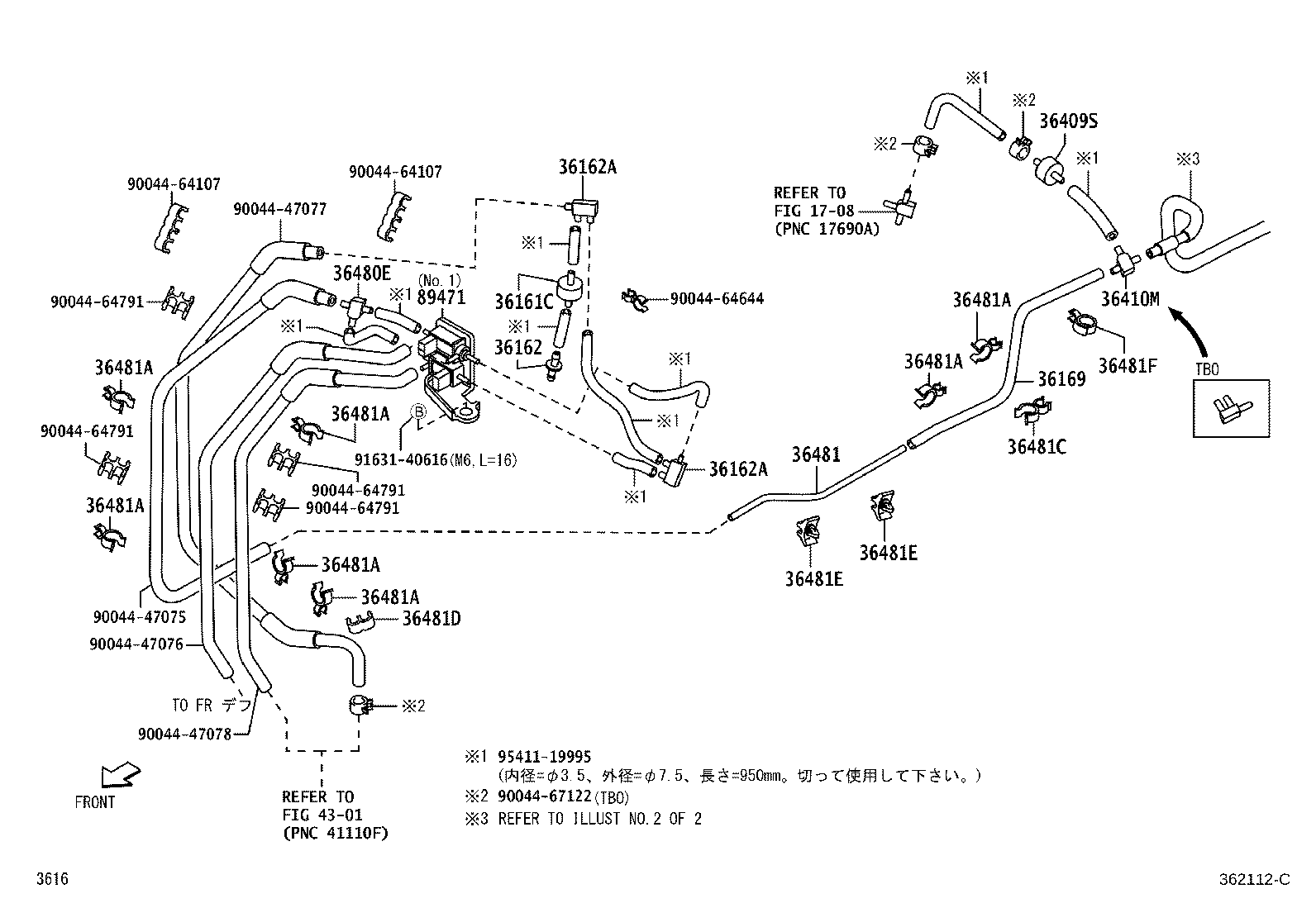

ILLUST NO. 1 OF 2(1504-1711)S331

Click highlighted areas on diagram

diagram 1708 36161C 36162 36162A 36162A 36169 36409S 36410M 36480E 36481 36481A 36481A 36481A 36481A 36481A 36481A 36481A 36481C 36481D 36481E 36481E 36481F 4301 89471 9004447075 9004447076 9004447077 9004447078 9004464107 9004464107 9004464644 9004464791 9004464791 9004464791 9004464791 9004467122 9163140616 9541119995
Part # Description Qty Price
36161C - FILTER ASSY, AIR(FOR 2WAY)
90048-24005

S331..PS2

 2
36162 - WAY, 2(FOR FRONT CHECK VALVE)
90044-12061

S331..PS2

 2
36162A - WAY,3(FOR VACUUM HOSE)
90044-13034

S331..PS2

 2
36162A - WAY,3(FOR VACUUM HOSE)
90044-13034

S331..PS2

 2
36169 - HOSE
31432-B5040

S331..PS2

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90048-20008

S331..PS2

 1
36410M - WAY, 3 (FOR TRANSFER VACUUM)
90044-13034

S331..TBO

 1
90044-13060

S331..NTBO..PS2

 1
36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE)
90044-13060

S331..PS2

 2
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-B5010

S331

 1
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64706

S331..PS2

 7
36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2
90044-64184

S331..PS2

 1
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90044-64108

S331..PS2

 2
36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM)
90044-64826

S331

 2
36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM)
90044-64826

S331

 2
36481F - CLAMP, NO.3(FOR TRANSFER VACUUM)
90044-64761

S331..PS2

 1
89471 - VALVE ASSY, VACUUM SWITCHING
89470-B5020

S331..PS2

NO.2

 1
89470-B5010

S331..PS2

NO.1

 1
Common parts
90044-47075
90044-47076
90044-47077
90044-47078
90044-64107
90044-64644
90044-64791
90044-67122
91631-40616
95411-19995
Linked diagrams
1708
4301

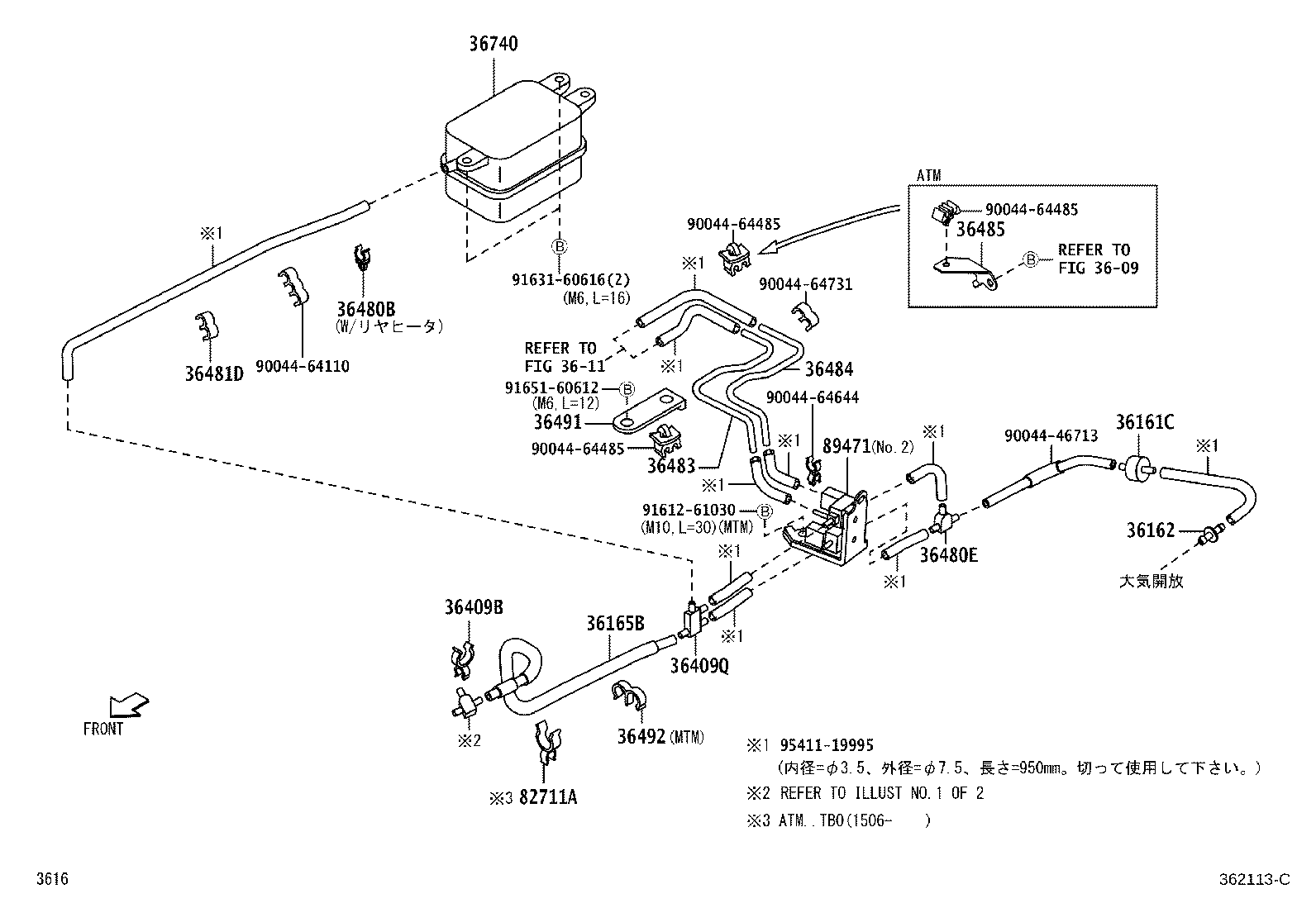

ILLUST NO. 2 OF 2(1504-1711)S331

Click highlighted areas on diagram

diagram 3609 3611 36161C 36162 36165B 36409B 36409Q 36480B 36480E 36481D 36483 36484 36485 36491 36492 36740 82711A 89471 9004446713 9004464110 9004464485 9004464485 9004464485 9004464644 9004464731 9161261030 9163160616 9165160612 9541119995
Part # Description Qty Price
36161C - FILTER ASSY, AIR(FOR 2WAY)
90048-24005

S331..PS2

 2
36162 - WAY, 2(FOR FRONT CHECK VALVE)
90044-12061

S331..PS2

 2
36165B - HOSE(CHECK VALVE, NO.2)
44750-B5401

S331

 1
44750-B5400

S331

 1
36409B - CLAMP, VACUUM TUBE
90044-64898

S331

 1
36409Q - WAY, 4 (FOR FRONT DRIVE SHIFT)
90044-14015

S331..PS2

 1
36480B - CLAMP (FOR VACUUM CHECK VALVE)
90044-64456

S331..STD..PS2

ﾘﾔ ﾋｰﾀｰ 有り

 1
36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE)
90044-13060

S331..PS2

 2
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90044-64108

S331..PS2

 2
36483 - TUBE, FRONT DRIVE VACUUM, NO.3
36483-B5010

S331..5F..PS2

 1
36483-B5011

S331..5F

 1
36484 - TUBE, FRONT DRIVE VACUUM, NO.4
36484-B5010

S331..5F..PS2

 1
36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1
90044-62335

S331..PS2

 1
36492 - CLAMP, TRANSFER VACUM TUBE, NO.2
90044-64902

S331..5F

 1
36740 - TANK ASSY, TRANSFER VACUUM
36751-97501

S331..PS2

 1
89471 - VALVE ASSY, VACUUM SWITCHING
89470-B5020

S331..PS2

NO.2

 1
89470-B5010

S331..PS2

NO.1

 1
Common parts
90044-46713
90044-64110
90044-64485
90044-64644
90044-64731
91612-61030
91631-60616
91651-60612
95411-19995
Linked diagrams
3609
3611
