S331M-ZMGF (2011)
Toyota Pixis Van
(1112- )CR

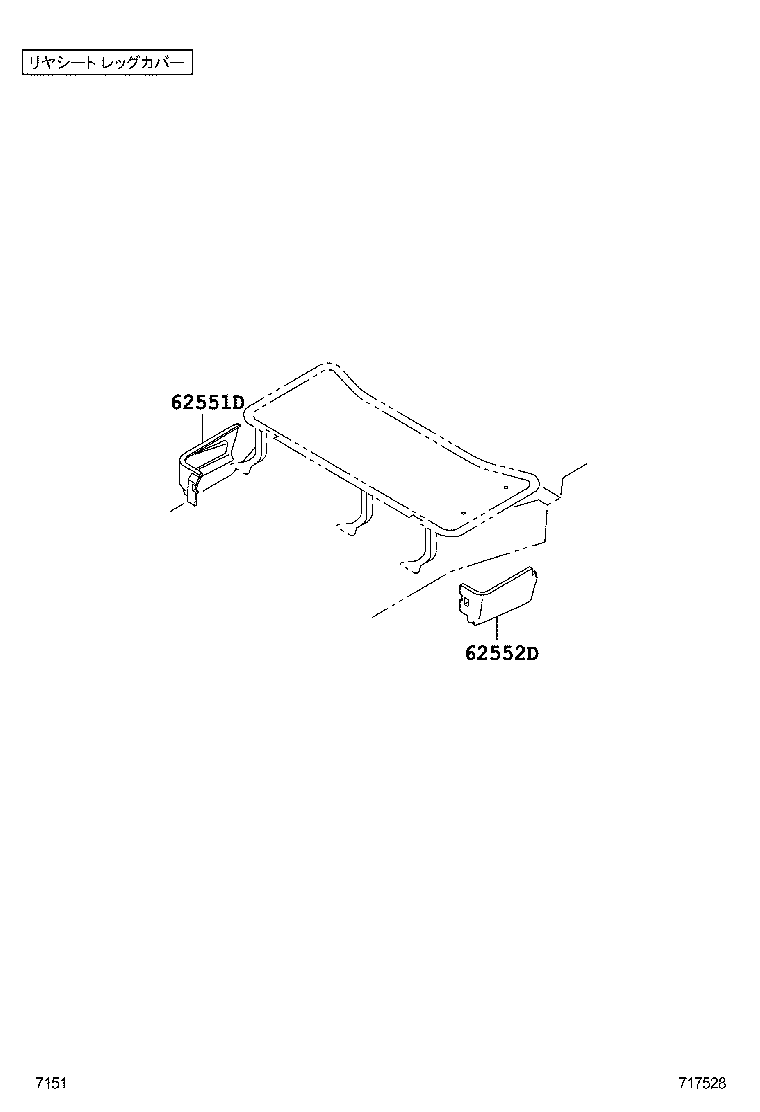

ﾘﾔｼｰﾄ ﾚｯｸﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62551D - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-B5010B0 |
S321,331..CR..PS1 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 62551-B5010B0 |
S321,331..CR..PS1 GRAY,TRIM1# |
1 | ||
| 62552D - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-B5010B0 |
S321,331..CR..PS1 GRAY,TRIM1# |
1 | ||
| 62552-B5010B0 |
S321,331..CR..PS1 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
(1112-1511)STD ; (1112-1511)ULEV..PS1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-B5120J1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-B5110J1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 90045-41268 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S331..CR |
2 | ||
| 90045-41268 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-B5020 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71427B - HOOK, REAR SEAT BACK STOP | ||||
| 71679-87506 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-B5130B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-B5140B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
18 | ||
| 72830G - CUSHION | ||||
| 47131-B5040 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 72830G - CUSHION | ||||
| 47131-B5040 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| Common parts | ||||
| 46797-B5010 | ||||
| 90041-09244 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-89058 | ||||
| 90042-06050 | ||||
| 93540-56016 | ||||
| 93560-55012 | ||||
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58521H - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-B5172B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 58521-B5032B3 |
S331..CR GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B5140J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B5171J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-B5180B1 |
S331..CR -,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-B5191B0 |
S331..CR -,TRIM1# |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 58431-B5011 |
S321,331..PS1 |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 58435-B5010 |
S321,331..PS1 |
1 | ||
| 71647H - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71537-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-B5020 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-B5020B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
5 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
9 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-97202B1 |
S331..CR DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-97202B1 |
S331..CR ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B5101J0 |
S331..CR BLUE,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B5020 |
S331..STD;S331..SRF..ULEV 220mm ｽﾗｲﾄﾞ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-B5020 |
S331..STD;S331..SRF..ULEV 220mm ｽﾗｲﾄﾞ |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72248-B5010 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-B5010 |
S331..STD;S331..SRF..ULEV ﾌﾞﾙｰ |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 58410-B5011 |
S321,331..PS1 |
1 | ||
| Common parts | ||||
| 90041-19960 | ||||
| 90041-19A18 | ||||
| 90041-68026 | ||||
| 90043-81021 | ||||
| 90179-10201 | ||||
| 91551-80614 | ||||
| 91621-F0614 | ||||
| 93560-14008 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58521J - CARPET, ENGINE SERVICE HOLE COVER LH | ||||
| 58521-B5042B3 |
S331..CR GRAY,TRIM1# |
1 | ||
| 58521-B5182B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B5150J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B5151J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-B5170B1 |
S331..CR -,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-B5191B0 |
S331..CR -,TRIM1# |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 58441-B5011 |
S321,331..PS1 ｸﾞﾗｽｳｰﾙ |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 58436-B5010 |
S321,331..PS1 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-B5020 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-B5020B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
5 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
9 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71537-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-97202B1 |
S331..CR ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B5101J0 |
S331..CR BLUE,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-97202B1 |
S331..CR ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-B5020 |
S331..CR 120mm ｽﾗｲﾄﾞ |
1 | ||
| 72120-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,170mm ｽﾗｲﾄﾞ |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-B5020 |
S331..CR 120mm ｽﾗｲﾄﾞ |
1 | ||
| 72140-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,170mm ｽﾗｲﾄﾞ |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72248-B5010 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 72637-B5010 |
S331..CR ﾌﾞﾙｰ |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 58420-B5010 |
S321,331..PS1 ｽﾁｰﾙ(ﾌﾞﾗｯｸ) |
1 | ||
| Common parts | ||||
| 90041-19960 | ||||
| 90041-19A18 | ||||
| 90041-68026 | ||||
| 90043-81021 | ||||
| 90179-10201 | ||||
| 91551-80614 | ||||
| 91621-F0614 | ||||
| 93560-14008 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58521H - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-B5172B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 58521-B5032B3 |
S331..CR GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B5140J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B5171J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-B5180B1 |
S331..CR -,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-B5191B0 |
S331..CR -,TRIM1# |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 58431-B5011 |
S321,331..PS1 |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 58435-B5010 |
S321,331..PS1 |
1 | ||
| 71647H - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71537-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-B5020 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-B5020B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
5 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
9 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B5020 |
S331..STD;S331..SRF..ULEV 220mm ｽﾗｲﾄﾞ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-B5020 |
S331..STD;S331..SRF..ULEV 220mm ｽﾗｲﾄﾞ |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72248-B5010 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-B5010 |
S331..STD;S331..SRF..ULEV ﾌﾞﾙｰ |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 58410-B5011 |
S321,331..PS1 |
1 | ||
| Common parts | ||||
| 90041-19960 | ||||
| 90041-19A18 | ||||
| 90041-68026 | ||||
| 90043-81021 | ||||
| 90179-10201 | ||||
| 91551-80614 | ||||
| 91621-F0614 | ||||
| 93560-14008 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58521J - CARPET, ENGINE SERVICE HOLE COVER LH | ||||
| 58521-B5042B3 |
S331..CR GRAY,TRIM1# |
1 | ||
| 58521-B5182B1 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B5150J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B5151J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-B5170B1 |
S331..CR -,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-B5191B0 |
S331..CR -,TRIM1# |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 58441-B5011 |
S321,331..PS1 ｸﾞﾗｽｳｰﾙ |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 58436-B5010 |
S321,331..PS1 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-B5020 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-B5020B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
5 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
9 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B5010 |
S331..STD;S331..SRF..ULEV |
4 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71537-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 72504-B5012 |
S321,331..PS1 |
4 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-B5020 |
S331..CR 120mm ｽﾗｲﾄﾞ |
1 | ||
| 72120-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,170mm ｽﾗｲﾄﾞ |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-B5020 |
S331..CR 120mm ｽﾗｲﾄﾞ |
1 | ||
| 72140-B5010 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,170mm ｽﾗｲﾄﾞ |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B5010 |
S331..STD;S331..SRF..ULEV |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72248-B5010 |
S331..STD;S331..SRF..ULEV |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B5010B0 |
S331..STD;S331..SRF..ULEV GRAY,TRIM1# |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 72637-B5010 |
S331..CR ﾌﾞﾙｰ |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 58420-B5010 |
S321,331..PS1 ｽﾁｰﾙ(ﾌﾞﾗｯｸ) |
1 | ||
| Common parts | ||||
| 90041-19960 | ||||
| 90041-19A18 | ||||
| 90041-68026 | ||||
| 90043-81021 | ||||
| 90179-10201 | ||||
| 91551-80614 | ||||
| 91621-F0614 | ||||
| 93560-14008 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1112-1711)CR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-B5141J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-B5130J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-B5010 |
S331..CR |
1 | ||
| 71324K - CUSHION, REAR SEAT | ||||
| 90045-40161 |
S331..CR |
2 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S331..CR |
2 | ||
| 90045-41268 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-B5151B0 |
S331..CR -,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-B5160B1 |
S331..CR -,TRIM1# |
1 | ||
| 71819 - CUSHION (FOR REAR SEAT CUSHION) | ||||
| 47131-B5030 |
S331..CR |
4 | ||
| 7181CD - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
3 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S331..STD;S331..SRF..ULEV |
18 | ||
| 71831E - COVER, REAR SEAT HINGE, RH | ||||
| 71831-87201C0 |
S331..CR BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202B1 |
S331..CR DK.GRAY,TRIM1#,ﾛｯｸｱﾘ |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202B1 |
S331..CR ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71940B - HEADREST ASSY, REAR SEAT, RH | ||||
| 71940-B5091J0 |
S331..CR BLUE,TRIM1# |
1 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-97501 |
S331..CR |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-B5010 |
S331..CR |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-B5010B0 |
S331..CR GRAY,TRIM1# |
1 | ||
| 72687A - HOLDER, REAR SEAT BACK LOCK | ||||
| 72687-87502 |
S331..CR |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-B5010 |
S331..CR |
2 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-87501C0 |
S331..CR BLACK,TRIM1# |
1 | ||
| 72748 - WIRE, REAR SEAT RECLINING CONTROL | ||||
| 72748-B5010 |
S331..CR |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-B5020 |
S331..CR 右側 |
1 | ||
| 78791-B5030 |
S331..CR 左側 |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-B5010 |
S331..CR |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S331..CR BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S331..CR BLACK,TRIM1#,NO.2 |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S331..CR BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S331..CR BLACK,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 44699-B5010 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 91551-80825 | ||||
| 93249-15008 | ||||
| 96160-00600 | ||||
| 96160-01000 | ||||
(1112-1711)CR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-B5071J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-B5080J1 |
S331..CR BLUE,TRIM1# |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-B5010 |
S331..CR |
1 | ||
| 71324K - CUSHION, REAR SEAT | ||||
| 90045-40161 |
S331..CR |
2 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S331..CR |
2 | ||
| 90045-41268 |
S331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-B5071B0 |
S331..CR -,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-B5100B1 |
S331..CR -,TRIM1# |
1 | ||
| 71819 - CUSHION (FOR REAR SEAT CUSHION) | ||||
| 47131-B5030 |
S331..CR |
4 | ||
| 7181CE - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
S331..CR |
3 | ||
| 7181CG - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S331..CR |
20 | ||
| 71832E - COVER, REAR SEAT HINGE, LH | ||||
| 71832-87201C0 |
S331..CR BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202B1 |
S331..CR DK.GRAY,TRIM1#,ﾛｯｸｱﾘ |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202B1 |
S331..CR ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71950D - HEADREST ASSY, REAR SEAT, LH | ||||
| 71940-B5091J0 |
S331..CR BLUE,TRIM1# |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-97501 |
S331..CR |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-B5010 |
S331..CR |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-B5010B0 |
S331..CR GRAY,TRIM1# |
1 | ||
| 72687A - HOLDER, REAR SEAT BACK LOCK | ||||
| 72687-87502 |
S331..CR |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-B5010 |
S331..CR |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72748-B5010 |
S331..CR |
1 | ||
| 72729 - PROTECTOR, REAR SEAT RECLINING, INNER LH | ||||
| 72729-87501C0 |
S331..CR BLACK,TRIM1# |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-B5020 |
S331..CR 右側 |
1 | ||
| 78791-B5030 |
S331..CR 左側 |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-B5010 |
S331..CR |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S331..CR BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S331..CR BLACK,TRIM1#,NO.2 |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S331..CR BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S331..CR BLACK,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 44699-B5010 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 91551-80825 | ||||
| 93249-15008 | ||||
| 96160-00600 | ||||
| 96160-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
