S331M-ZMDF (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

Click highlighted areas on diagram

diagram 75533E 75595D 75596D
Part # Description Qty Price
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-B5011

S321,331..PS1

 1
75595D - COVER, ROOF DRIP SIDE MOULDING, FRONT RH
75595-B5011

S321,331..PS1

 1
75596D - COVER, ROOF DRIP SIDE MOULDING, FRONT LH
75596-B5011

S321,331..PS1

 1

(1112- )CR,DLX

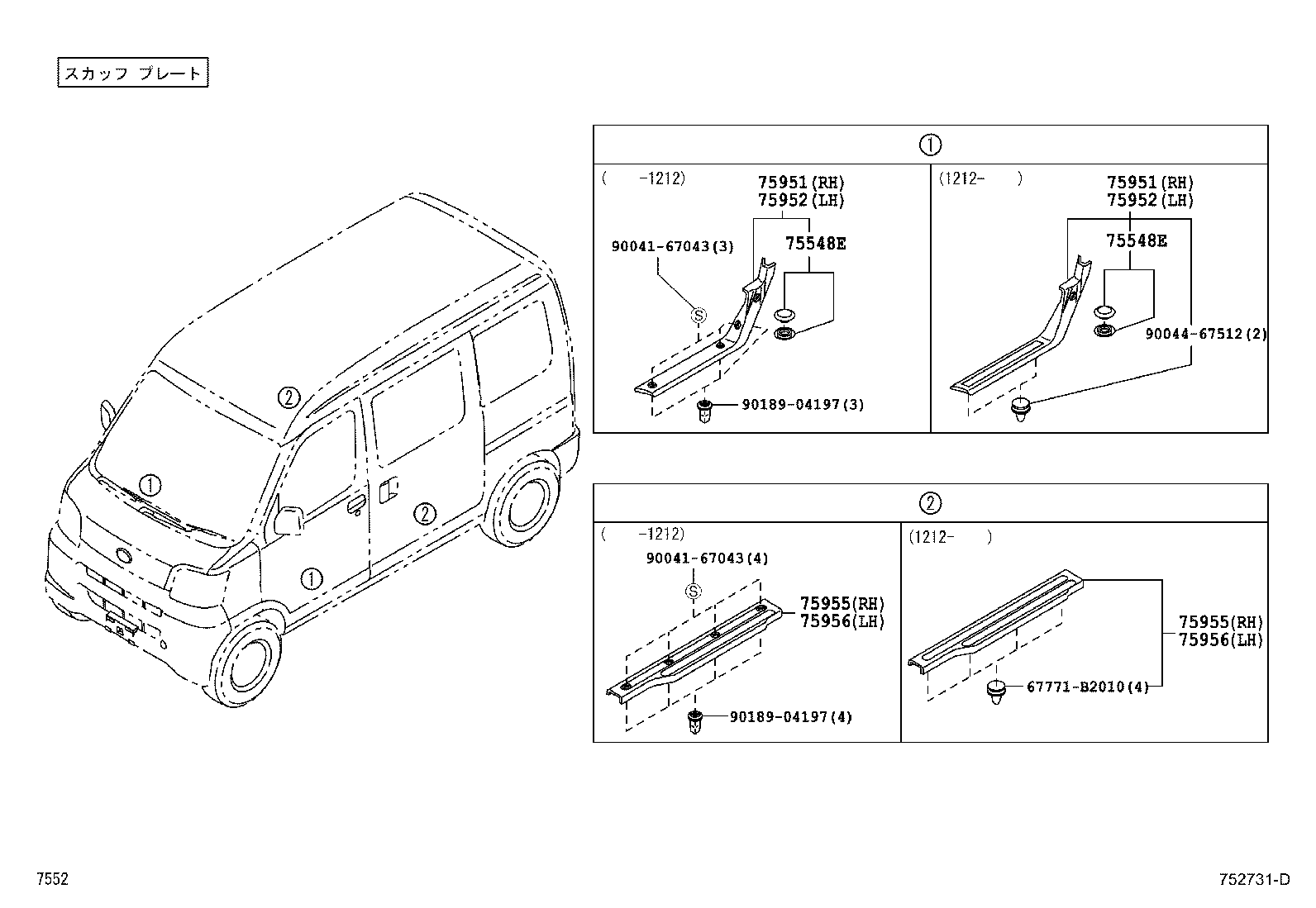

Click highlighted areas on diagram

ｽｶｯﾌﾌﾟﾚｰﾄ(ﾌﾛﾝﾄ)

diagram 67771B2010 75548E 75548E 75951 75951 75952 75952 75955 75955 75956 75956 9004167043 9004167043 9004467512 9018904197 9018904197
Part # Description Qty Price
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58558-87501B0

S321,331..(CR,DLX)..PS1

GRAY,TRIM1#

 2
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58558-87501B0

S321,331..(CR,DLX)..PS1

GRAY,TRIM1#

 2
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-B5030B0

S321,331..DLX..PS1

GRAY,TRIM1#

 1
67913-B5010B0

S321,331..CR,DLX

GRAY,TRIM1#

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-B5030B0

S321,331..DLX..PS1

GRAY,TRIM1#

 1
67913-B5010B0

S321,331..CR,DLX

GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-B5030B0

S321,331..DLX..PS1

GRAY,TRIM1#

 1
67914-B5010B0

S321,331..CR,DLX

GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-B5030B0

S321,331..DLX..PS1

GRAY,TRIM1#

 1
67914-B5010B0

S321,331..CR,DLX

GRAY,TRIM1#

 1
Common parts
67771-B2010
90041-67043
90044-67512
90189-04197
