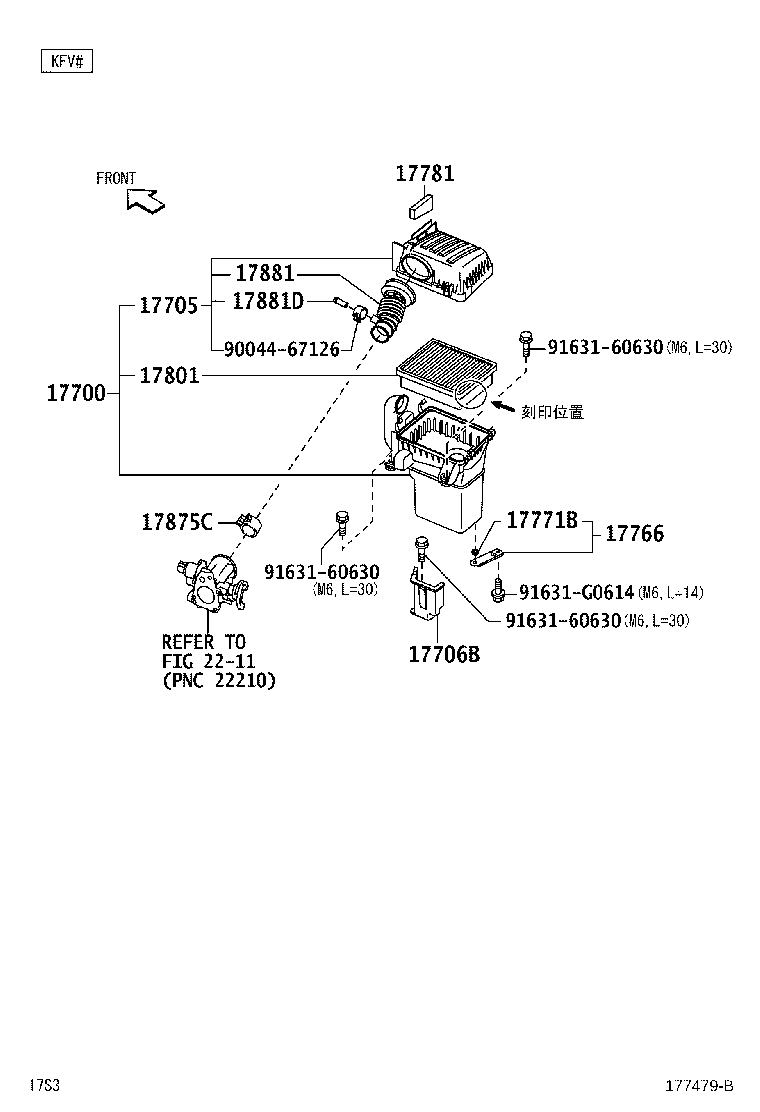

Toyota Pixis van S331M AIR CLEANER

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-B2151	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-B2100	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17706B - RETAINER, AIR CLEANER INLET PIPE
17799-B5010	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17766 - STAY, AIR CLEANER, NO.2
17766-B5011	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80598	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17781 - SEAL, AIR CLEANER INLET
17781-B5010	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-B5010	KFVE..S321,331..PS1 識別刻印=TD30	12/2011 - 11/2017	1
17801-B5040	KFVE..S321,331..PS1 識別刻印=M20+GF10	12/2011 - 11/2017	1
17875C - CLIP(FOR HOSE, NO.1)
90044-67476	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17881 - HOSE, AIR CLEANER, NO.1
17881-B2100	KFVE..S321,331..PS1	12/2011 - 04/2015	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90044-46416	KFVE..S321,331..PS1	12/2011 - 04/2015	1
Common parts
90044-67126
91631-60630
91631-G0614
Linked diagrams
2211

S331M-ZMDF (2011)
