S331M-SPRFU (2011)
Toyota Pixis Van
(1112-1711)

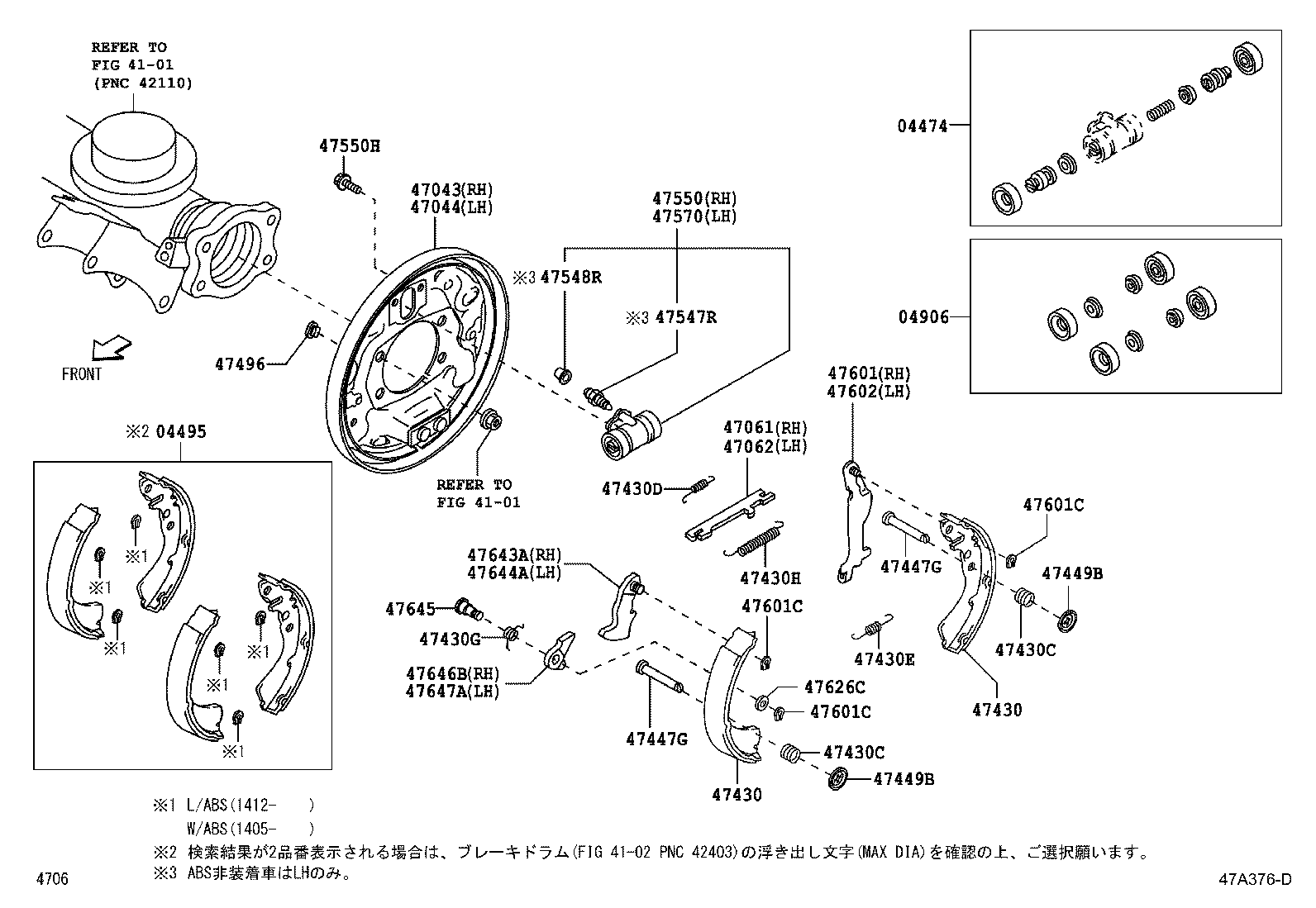

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1010 |
S321,331..(DLX,SPL)..PS1 |
2 | ||
| 04474-B5010 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B5050 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 04495-B5020 |
S321,331..DLX,SPL ﾏｰｸ NBK D9087 |
1 | ||
| 04495-B5020 |
S321,331..DLX,SPL ﾏｰｸ NBK D9087,ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 04495-B5021 |
S321,331..(DLX,SPL)..PS1 ﾏｰｸ NBK D9087,ﾄﾞﾗﾑ内径ﾏｰｸ”181MM” |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B5010 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
1 | ||
| 04906-B2010 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-97503 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47043-97504 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47043-97504 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-97504 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47044-97504 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47044-97503 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47613-87501 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47613-87503 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47613-87501 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47613-87501 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47613-87501 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47613-87503 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47430 - SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47430-B5040 |
S321,331..(DLX,SPL)..PS1 |
4 | ||
| 47430-B5040 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
4 | ||
| 47430-B5020 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
4 | ||
| 47430 - SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47430-B5040 |
S321,331..(DLX,SPL)..PS1 |
4 | ||
| 47430-B5040 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
4 | ||
| 47430-B5020 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01854 |
S321,331..PS1 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01854 |
S321,331..PS1 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06199 |
S321,331..PS1 左側 |
1 | ||
| 90045-06196 |
S321,331..PS1 右側 |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06198 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
2 | ||
| 90045-06198 |
S321,331..(DLX,SPL)..PS1 |
2 | ||
| 90045-06250 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90045-08362 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ径=180,LH |
1 | ||
| 90045-08361 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ径=180,RH |
1 | ||
| 90045-08362 |
S321,331..(DLX,SPL)..PS1 左側 |
1 | ||
| 90045-08361 |
S321,331..(DLX,SPL)..PS1 右側 |
1 | ||
| 90045-08373 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06197 |
S321,331..(DLX,SPL)..PS1 |
2 | ||
| 90045-06197 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
2 | ||
| 90045-06233 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
S321,331..PS1 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
S321,331..PS1 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
S321,331..PS1 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
S321,331..PS1 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-B1010 |
S321,331..PS1 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87203 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
2 | ||
| 47547-87203 |
S321,331..(DLX,SPL)..PS1 左側のみ |
1 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
S321,331..(DLX,SPL)..PS1 左側のみ |
1 | ||
| 47548-87501 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47560-B5020 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
1 | ||
| 47550-B5010 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 |
S321,331..PS1 M6,L=11 |
4 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47560-B5020 |
S321,331..(DLX,SPL)..PS1 ABS 有り |
1 | ||
| 47560-B5010 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-97501 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47601-97501 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47601-87504 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
S321,331..PS1 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
S321,331..PS1 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
S321,331..PS1 |
6 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-87504 |
S321,331..(DLX,SPL)..PS1 ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”201MM” |
1 | ||
| 47602-97501 |
S321,331..(DLX,SPL)..PS1 |
1 | ||
| 47602-97501 |
S321,331..DLX,SPL ABS 有り,ﾄﾞﾗﾑ内径ﾏｰｸ”MM181” |
1 | ||
| 47626C - WASHER, WAVE | ||||
| 90042-06041 |
S321,331..PS1 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47608-87501 |
S321,331..PS1 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47609-87501 |
S321,331..PS1 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-87201 |
S321,331..PS1 |
2 | ||
| 47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47646-97201 |
S321,331..PS1 |
1 | ||
| 47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47647-97201 |
S321,331..PS1 |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
