S331M-SPRFU (2011)
Toyota Pixis Van

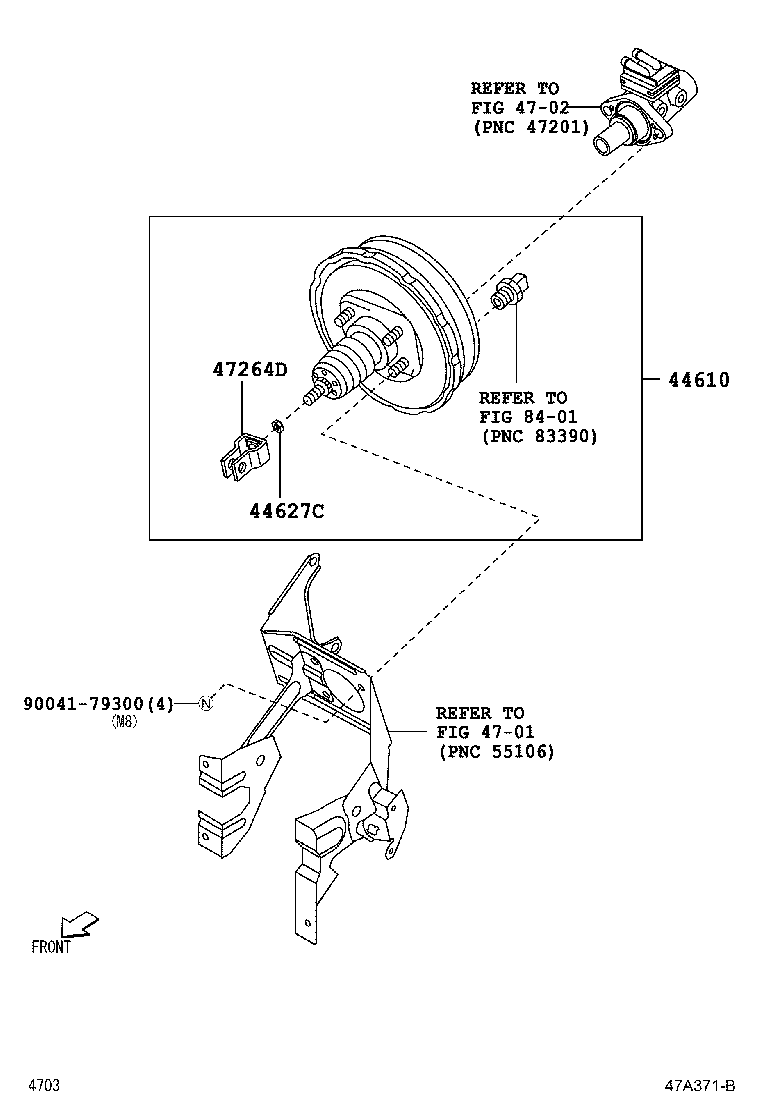

ILLUST NO. 1 OF 2(1112-1212)5F ; (1112-1212)4FC..NTBO
BREAK BOOSTER ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-B5080 |
S321,331..4FC..(DLX,SPL) |
1 | ||
| 44610-B5090 |
S321,331..4FC..(DLX,SPL) ABS 有り |
1 | ||
| 44610-B5200 |
S321,331..4FC..(DLX,SPL)..PS1 識別記号=J |
1 | ||
| 44610-B5110 |
S321,331..4FC..(DLX,SPL) ABS 有り,識別記号=M |
1 | ||
| 44610-B5210 |
S321,331..4FC..(DLX,SPL)..PS1 ABS 有り,識別記号=K |
1 | ||
| 44610-B5170 |
S321,331..4FC..(DLX,SPL) 識別記号=R |
1 | ||
| 44610-B5110 |
S321,331..4FC..TBO..PS1 識別記号=M |
1 | ||
| 44627C - NUT, BOOSTER SLEEVE CYLINDER | ||||
| 94130-01002 |
S321,331..5F;S321,331..4FC..NTBO M10 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-B5010 |
S321,331..5F;S321,331..4FC..NTBO |
1 | ||
| Common parts | ||||
| 90041-79300 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 4702 | ||||
| 8401 | ||||

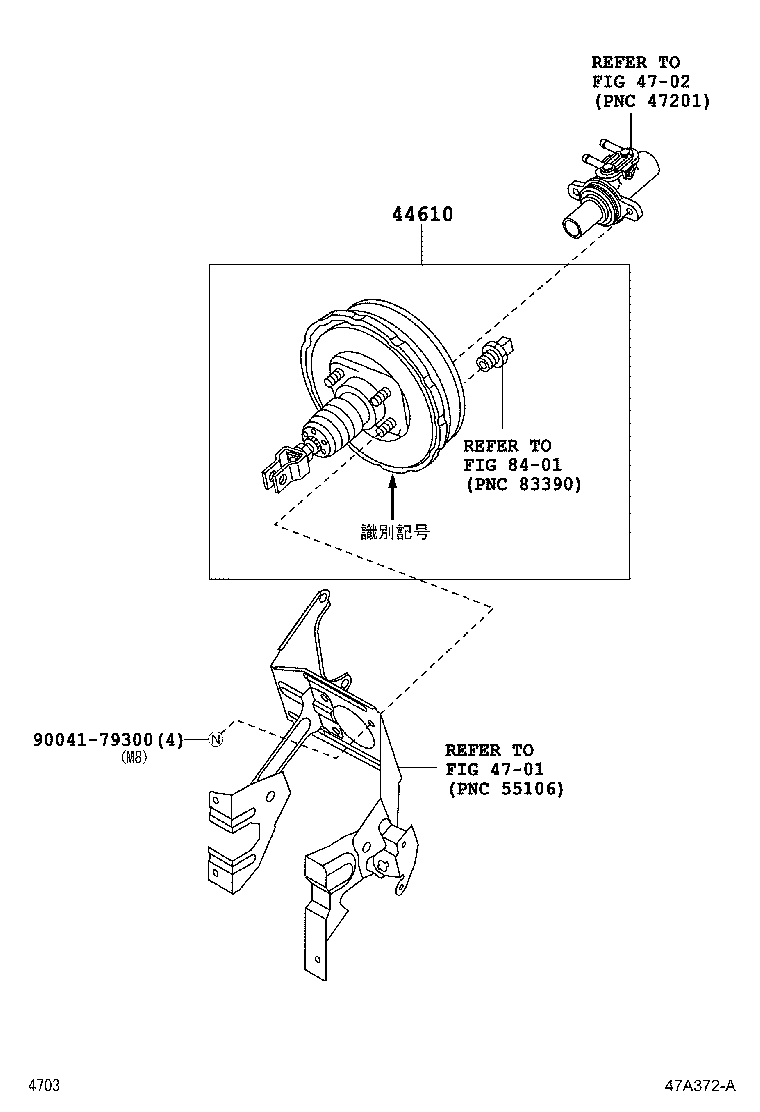

ILLUST NO. 1 OF 2(1112-1504)4FC..TBO..PS1 ; (1212-1504)5F..PS1 ;(1212-1504)4FC..NTBO..PS1 ; (1504-1
BREAK BOOSTER ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-B5080 |
S321,331..4FC..(DLX,SPL) |
1 | ||
| 44610-B5090 |
S321,331..4FC..(DLX,SPL) ABS 有り |
1 | ||
| 44610-B5200 |
S321,331..4FC..(DLX,SPL)..PS1 識別記号=J |
1 | ||
| 44610-B5110 |
S321,331..4FC..(DLX,SPL) ABS 有り,識別記号=M |
1 | ||
| 44610-B5210 |
S321,331..4FC..(DLX,SPL)..PS1 ABS 有り,識別記号=K |
1 | ||
| 44610-B5170 |
S321,331..4FC..(DLX,SPL) 識別記号=R |
1 | ||
| 44610-B5110 |
S321,331..4FC..TBO..PS1 識別記号=M |
1 | ||
| Common parts | ||||
| 90041-79300 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 4702 | ||||
| 8401 | ||||

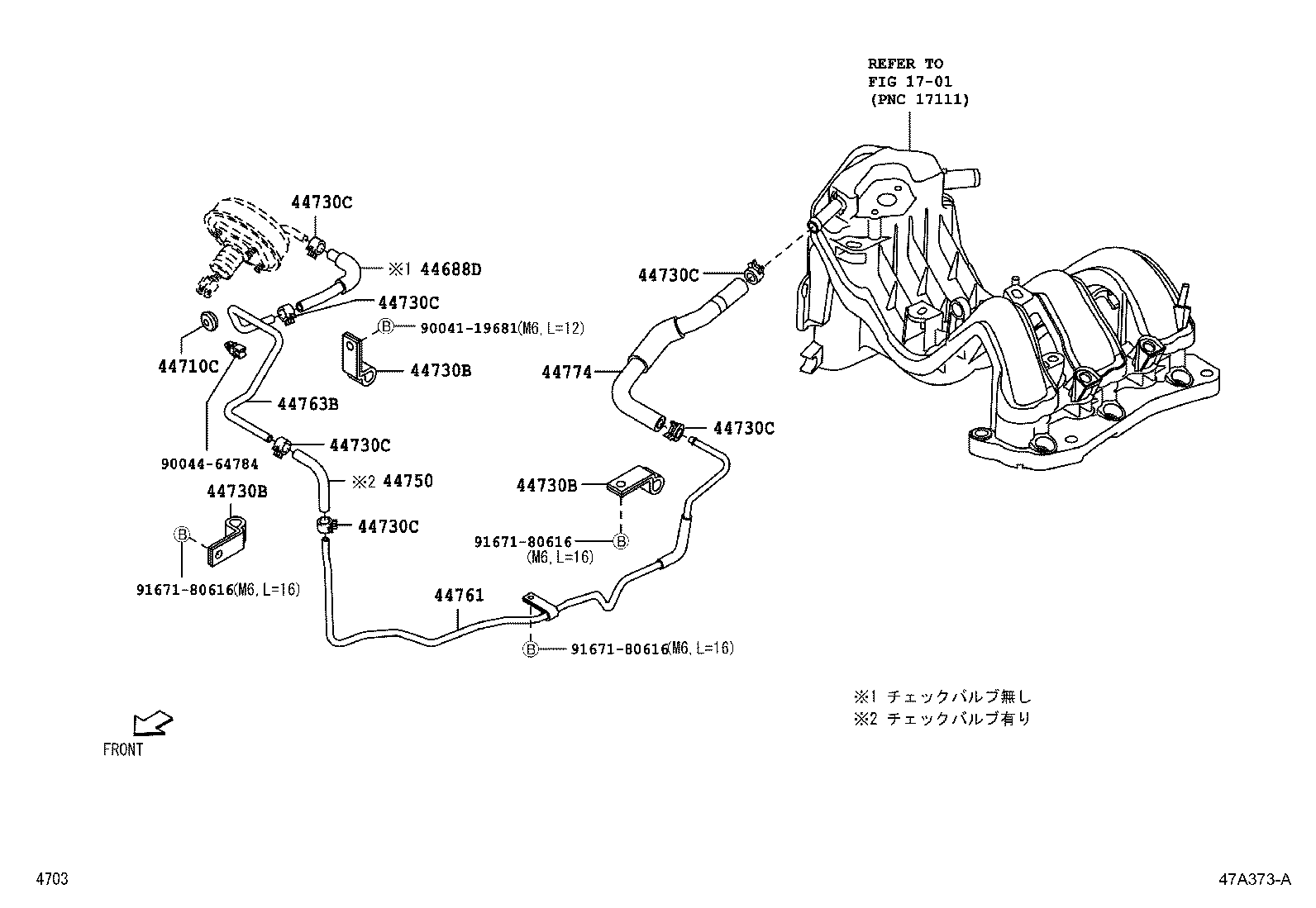

ILLUST NO. 2 OF 2(1112-1504)PS1
HOSE & TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44688D - HOSE, BOOSTER VACUUM | ||||
| 44772-B5070 |
S321,331..5F..PS1;S321,331..4FC..NTBO..PS1 ﾅｼ−ﾁｪｯｸﾊﾞﾙﾌﾞ |
1 | ||
| 44772-B5070 |
S321,331..4FC..TBO..PS1 ﾅｼ−ﾁｪｯｸﾊﾞﾙﾌﾞ |
1 | ||
| 44772-B5030 |
S321,331..5F;S321,331..4FC..NTBO ﾅｼ−ﾁｪｯｸﾊﾞﾙﾌﾞ |
1 | ||
| 44710C - GROMMET, BOOSTER AIR CLEANER HOSE | ||||
| 90044-80645 |
S321,331..PS1 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 90044-62270 |
S321,331..PS1 |
3 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 90044-62270 |
S321,331..PS1 |
3 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 90044-62270 |
S321,331..PS1 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67399 |
S321,331..PS1 |
6 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-B5031 |
S321,331..PS1 ｱﾘ−ﾁｪｯｸﾊﾞﾙﾌﾞ |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-B5040 |
S321,331..PS1 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-B5011 |
S321,331..PS1 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-B5060 |
S321,331..PS1 |
1 | ||
| Common parts | ||||
| 90041-19681 | ||||
| 90044-64784 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
