S331M-SMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )SRF

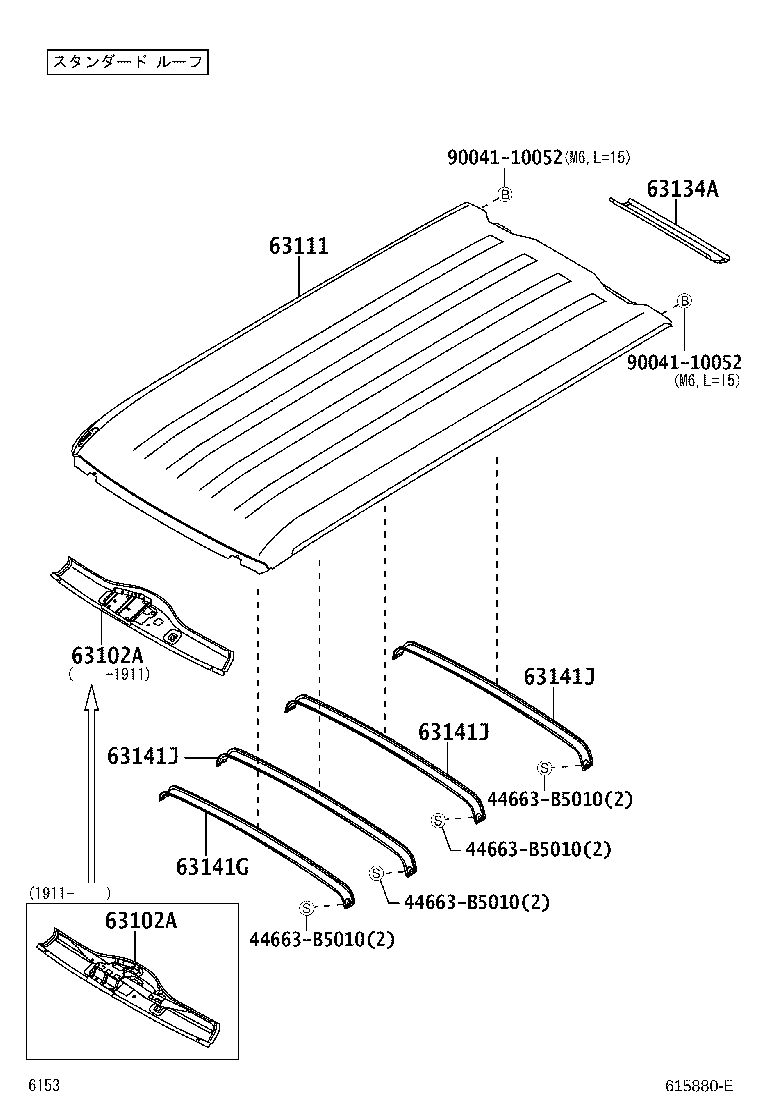

Click highlighted areas on diagram

diagram 44663B5010 44663B5010 44663B5010 44663B5010 63102A 63102A 63111 63134A 63141G 63141J 63141J 63141J 9004110052 9004110052
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-B5060

S321,331..5F..SPL

ﾋﾞｭｰﾃｨﾊﾟｯｸ,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63102-B5060

S321,331..5F..SPL

#−ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ有り,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63102-B5050

S321,331..5F..SPL

ﾊﾞｲｻﾞｰ取付穴 無し

 1
63102-B5060

S321,331..5F..SPL

ﾋﾞｭｰﾃｨﾊﾟｯｸ&#−ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ有り,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-B5060

S321,331..5F..SPL

ﾋﾞｭｰﾃｨﾊﾟｯｸ,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63102-B5060

S321,331..5F..SPL

#−ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ有り,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63102-B5050

S321,331..5F..SPL

ﾊﾞｲｻﾞｰ取付穴 無し

 1
63102-B5060

S321,331..5F..SPL

ﾋﾞｭｰﾃｨﾊﾟｯｸ&#−ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ有り,ﾊﾞｲｻﾞｰ取付穴 有り

 1
63111 - PANEL, ROOF
63111-B5090

S321,331..SRF

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63134-B5020

S321,331..SRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-B5050B0

S321,331..SRF

-,TRIM2#

 1
63141J - REINFORCEMENT, ROOF PANEL
63141-B5060B0

S321,331..SRF

-,TRIM2#

 3
63141J - REINFORCEMENT, ROOF PANEL
63141-B5060B0

S321,331..SRF

-,TRIM2#

 3
63141J - REINFORCEMENT, ROOF PANEL
63141-B5060B0

S321,331..SRF

-,TRIM2#

 3
Common parts
44663-B5010
90041-10052
