S331M-SMRF (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )PS1,PS2

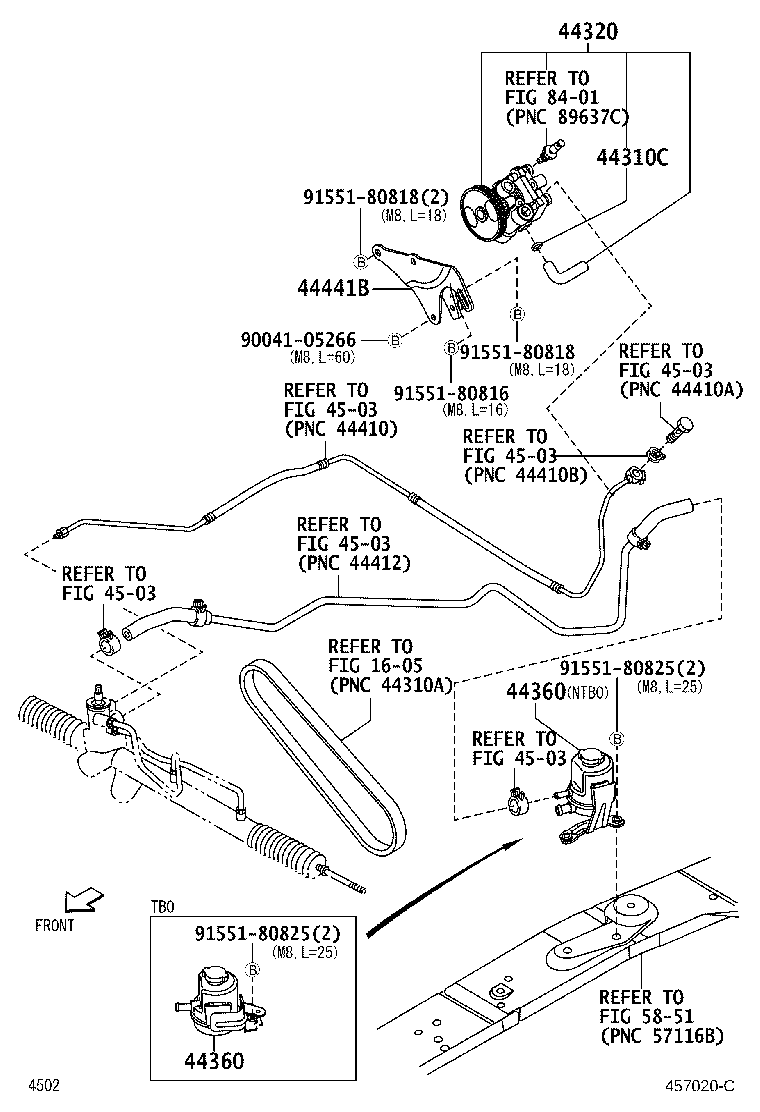

Click highlighted areas on diagram

diagram 1605 44310C 44320 44360 44360 44441B 4503 4503 4503 4503 4503 4503 5851 8401 9004105266 9155180816 9155180818 9155180818 9155180825 9155180825
Part # Description Qty Price
44310C - RING, O(FOR VANE PUMP)
9004C-30010

S321,331..PS1

 1
44320 - PUMP ASSY, VANE
44310-B5010

S321,331

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-B5020

S321,331..TBO..(PS1,PS2)

 1
44360-B5030

S321,331..NTBO..(PS1,PS2)

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-B5020

S321,331..TBO..(PS1,PS2)

 1
44360-B5030

S321,331..NTBO..(PS1,PS2)

 1
44441B - BRACKET, PUMP, FRONT
44441-B5020

S321,331..PS1,PS2

 1
Common parts
90041-05266
91551-80816
91551-80818
91551-80825
Linked diagrams
1605
4503
5851
8401
