S321M-ZQRFU3 (2015)
Toyota Pixis Van

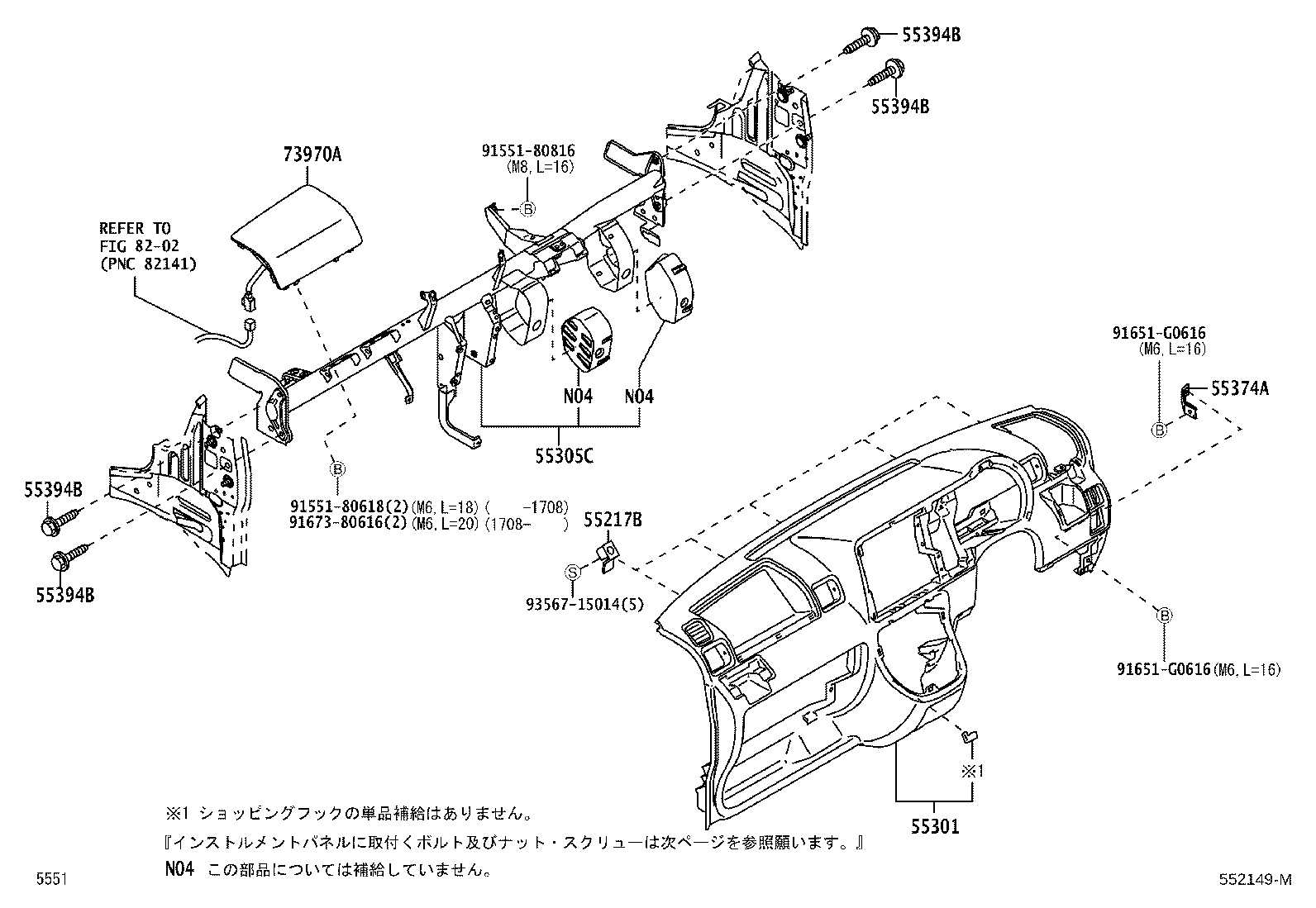

ILLUST NO. 1 OF 4(1112-1711)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55395-B5010 |
S321,331..PS2 |
5 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-B5060B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-B5140 |
S321,331 |
1 | ||
| 55305-B5170 |
S321,331 |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-B5030 |
S321,331..PS2 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B5010 |
S321,331..PS2 M8,L=34 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B5010 |
S321,331..PS2 M8,L=34 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B5010 |
S321,331..PS2 M8,L=34 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B5010 |
S321,331..PS2 M8,L=34 |
4 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-B5010B0 |
S321,331..PS2 GRAY,TRIM1#,ｻﾌﾞﾜｲﾔ付き |
1 | ||
| Common parts | ||||
| 91551-80618 | ||||
| 91551-80816 | ||||
| 91651-G0616 | ||||
| 91673-80616 | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||

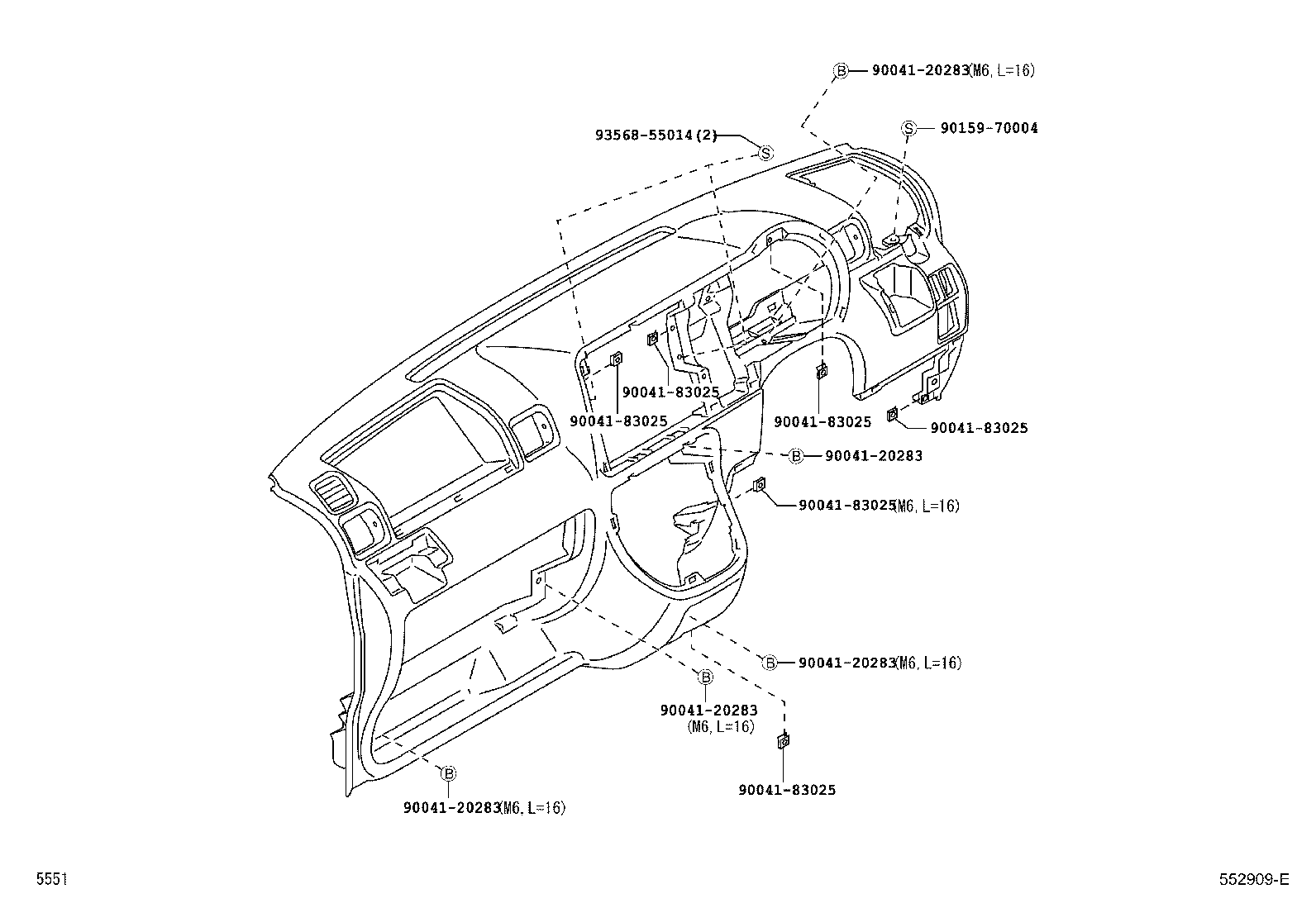

ILLUST NO. 2 OF 4(1112-1711)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90041-20283 | ||||
| 90041-83025 | ||||
| 90159-70004 | ||||
| 93568-55014 | ||||

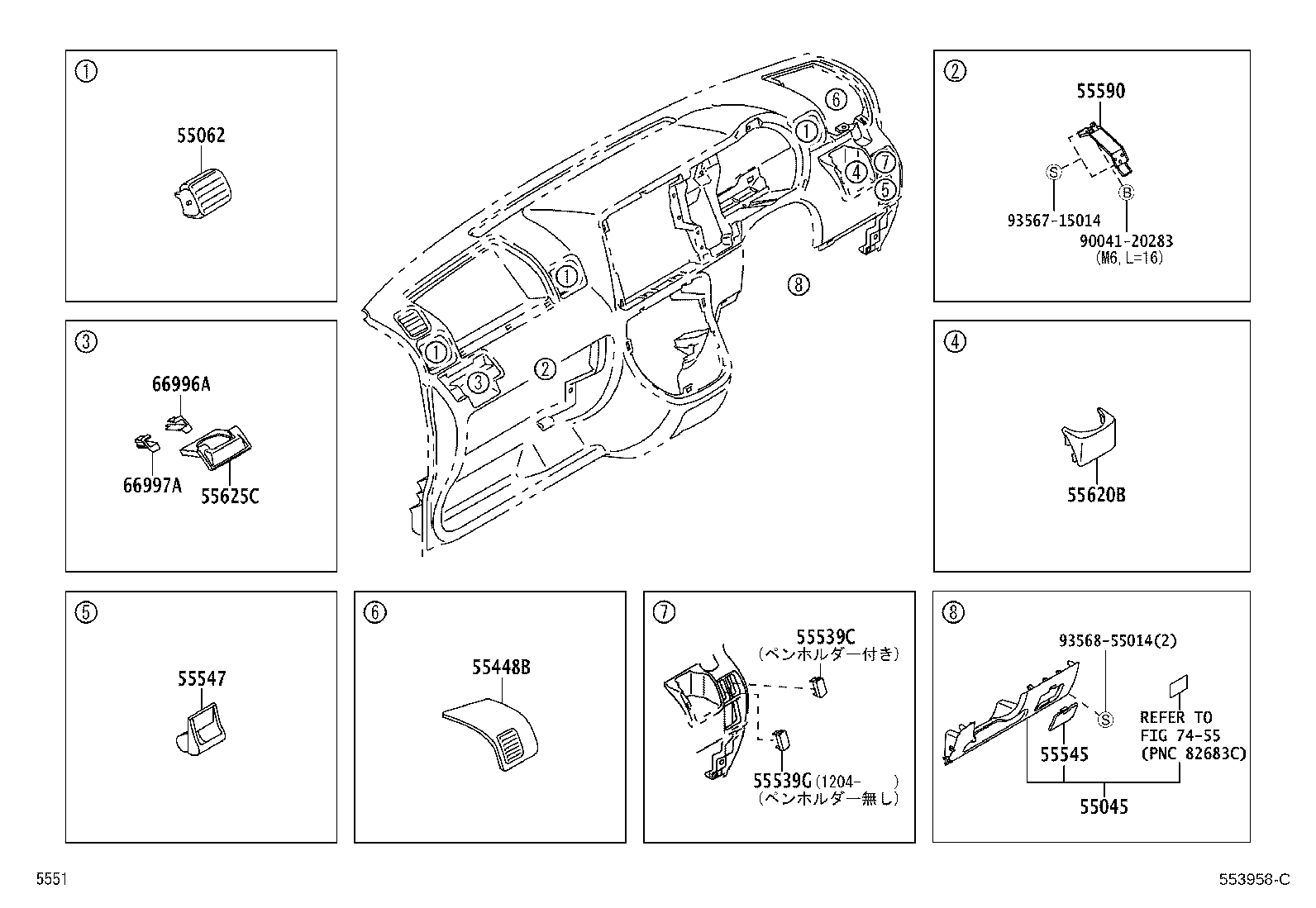

ILLUST NO. 3 OF 4(1112-1711)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-B5020B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-87203B0 |
S321,331..PS2 GRAY,TRIM1# |
3 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 58106-B5010B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52020C0 |
S321,331..PS2 BLACK,TRIM1#,ﾊﾞｯｸ ﾄﾞｱ ﾛｯｸ ｽｲｯﾁ |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010C1 |
S321,331 BLACK,TRIM1#,ﾍｯﾄﾞﾗﾝﾌﾟ ﾚﾍﾞﾘﾝｸﾞ ｽｲｯﾁ |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-B5010B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-42020C0 |
S321,331..(DLX,SPL)..PS2 BLACK,TRIM1# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-B5010 |
S321,331..PS2 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55625-B5010B0 |
S321,331 GRAY,TRIM1# |
1 | ||
| 55625C - TRAY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55625-B5020B0 |
S321,331 GRAY,TRIM1# |
1 | ||
| 66996A - BRACKET, CUP HOLDER, NO.1 | ||||
| 55618-B5010B0 |
S321,331 GRAY,TRIM1# |
1 | ||
| 66997A - BRACKET, CUP HOLDER, NO.2 | ||||
| 55619-B5010B0 |
S321,331 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-20283 | ||||
| 93567-15014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||

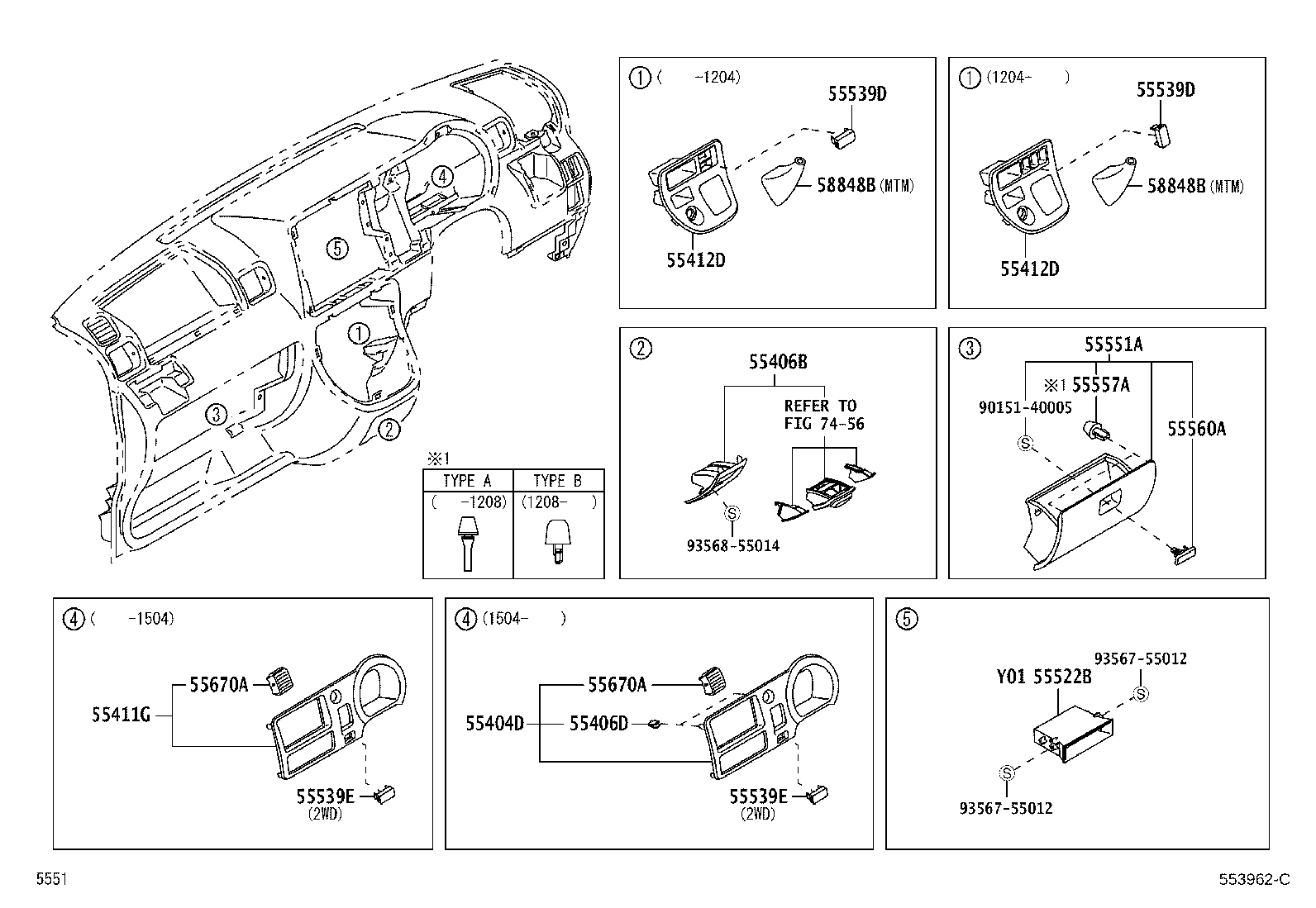

ILLUST NO. 4 OF 4(1112-1711)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-B5080C0 |
S321,331 BLACK,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-B5010B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90044-68324 |
S321,331 |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-26020C0 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵ無し,BLACK |
1 | ||
| 55521-26020C0 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵﾚｽ 2SP(16CM),BLACK |
1 | ||
| 55521-26020C1 |
S321,331..DLX,SPL BLACK |
1 | ||
| 55521-26020C1 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵﾚｽ 2SP(10CM),BLACK |
1 | ||
| 55521-26020C0 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵﾚｽ 2SP(10CM),BLACK |
1 | ||
| 55521-26020C1 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵ無し,BLACK |
1 | ||
| 55521-26020C0 |
S321,331..DLX,SPL BLACK |
1 | ||
| 55521-26020C1 |
S321,331..DLX,SPL ｵｰﾃﾞｨｵﾚｽ 2SP(16CM),BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010C1 |
S321,331 BLACK,TRIM1#,ﾘﾔﾋｰﾀｽｲｯﾁ 無し用 |
1 | ||
| 55539-B2010B0 |
S321,331 DK.GRAY,TRIM1#,ﾘﾔﾋｰﾀｽｲｯﾁ 無し用 |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010C1 |
S321,331 BLACK,TRIM1#,ﾘﾔﾋｰﾀｽｲｯﾁ 無し用 |
1 | ||
| 55539-B2010B0 |
S321,331 DK.GRAY,TRIM1#,ﾘﾔﾋｰﾀｽｲｯﾁ 無し用 |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010C1 |
S321 BLACK,TRIM1#,ﾊﾟﾀｰﾝ ｾﾚｸﾄ ｽｲｯﾁ |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010C1 |
S321 BLACK,TRIM1#,ﾊﾟﾀｰﾝ ｾﾚｸﾄ ｽｲｯﾁ |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55550-B5010B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-B2020B0 |
S321,331..PS2 GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-B5020C0 |
S321,331..PS2 BLACK,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-B5020C0 |
S321,331..PS2 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 93567-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7456 | ||||
