S321M-ZQRFU3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)4FC ; (1711- )4FC

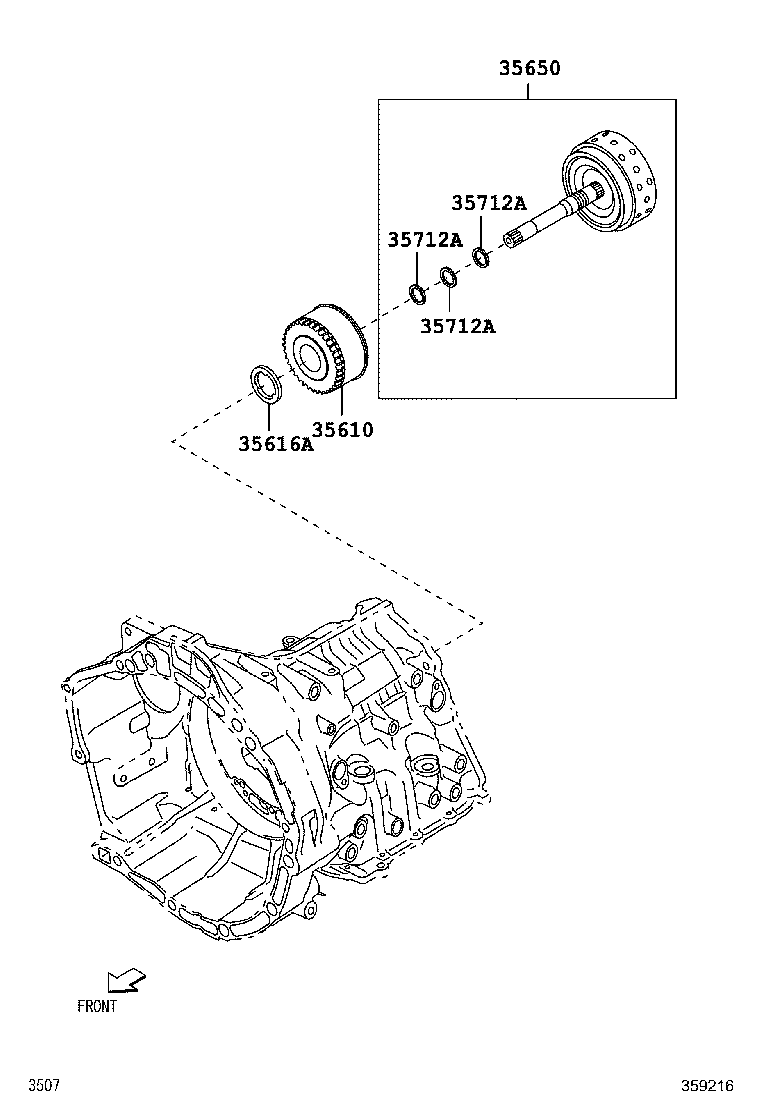

Click highlighted areas on diagram

diagram 35610 35616A 35650 35712A 35712A 35712A
Part # Description Qty Price
35610 - CLUTCH ASSY, FRONT MULTIPLE DISC
35610-B1020

S321,331..4FC..TBO

 1
35610-97205

S321,331..4FC..TBO

 1
35610-B1010

S321,331..4FC..NTBO

 1
35616A - BEARING, FRONT CLUTCH THRUST
90043-74043

S321,331..4FC

厚さ=3.81

 1
90043-74045

S321,331..4FC

厚さ=4.21

 1
90043-74044

S321,331..4FC

厚さ=3.41

 1
35650 - CLUTCH ASSY, REAR MULTIPLE DISC
35650-B1050

S321,331..4FC..NTBO

 1
35650-B5010

S321,331..4FC..TBO

 1
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S321,331..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S321,331..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S321,331..4FC

 3
