S321M-ZQGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

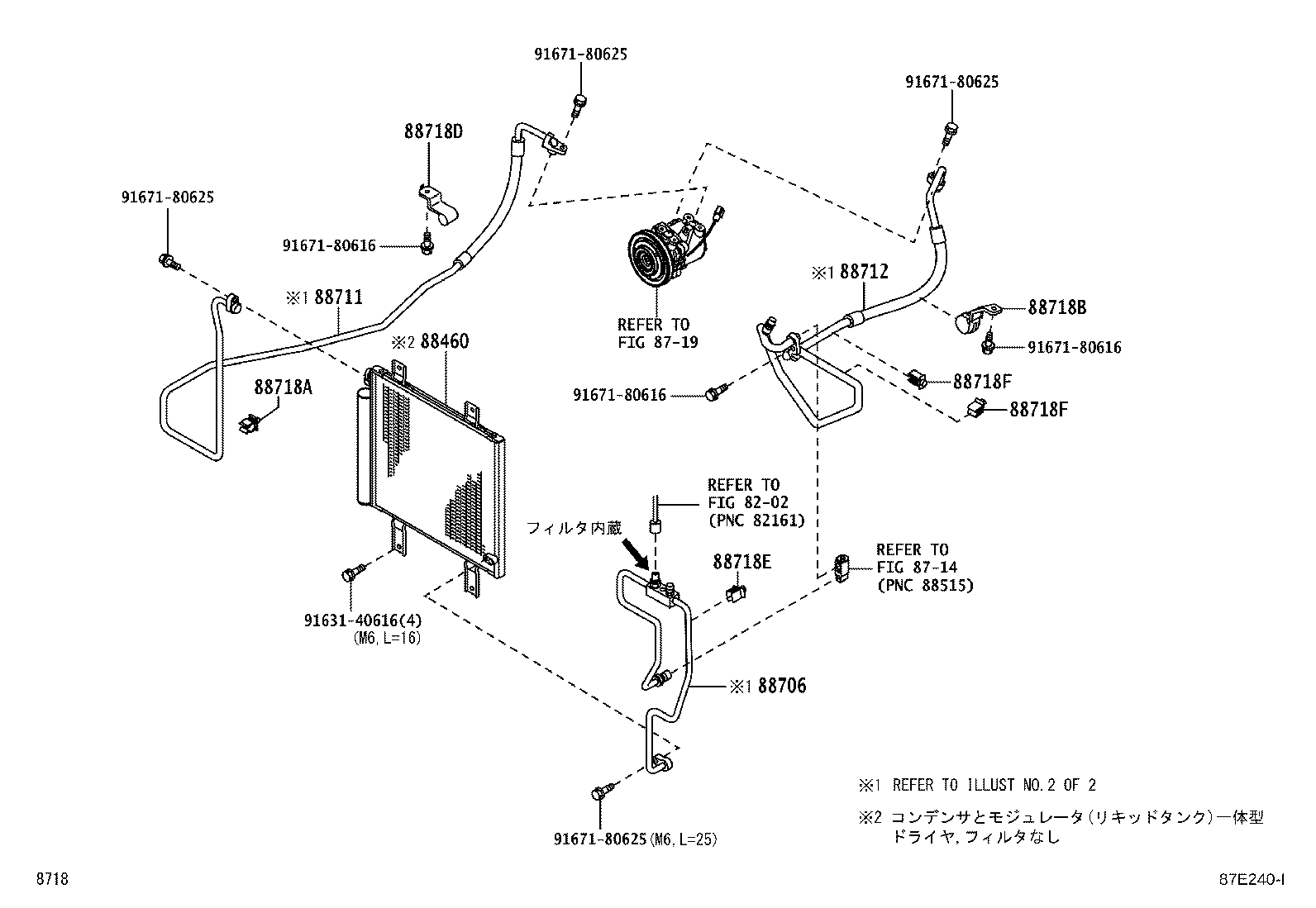

ILLUST NO. 1 OF 2(1112-1711)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-B5040 |
S321,331..PS2 ﾘｷｯﾄﾞﾀﾝｸ一体型 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B5120 |
S321,331..TBO |
1 | ||
| 88711-B5110 |
S321,331..NTBO |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B5070 |
S321,331 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-1A430 |
S321,331..PS2 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B5010 |
S321,331..PS2 |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B5020 |
S321,331..PS2 ｺﾞﾑ(ﾊﾟｯｷﾝ)付き |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-87732 |
S321,331..PS2 |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-87580 |
S321,331..PS2 |
2 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-87580 |
S321,331..PS2 |
2 | ||
| Common parts | ||||
| 91631-40616 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8714 | ||||
| 8719 | ||||

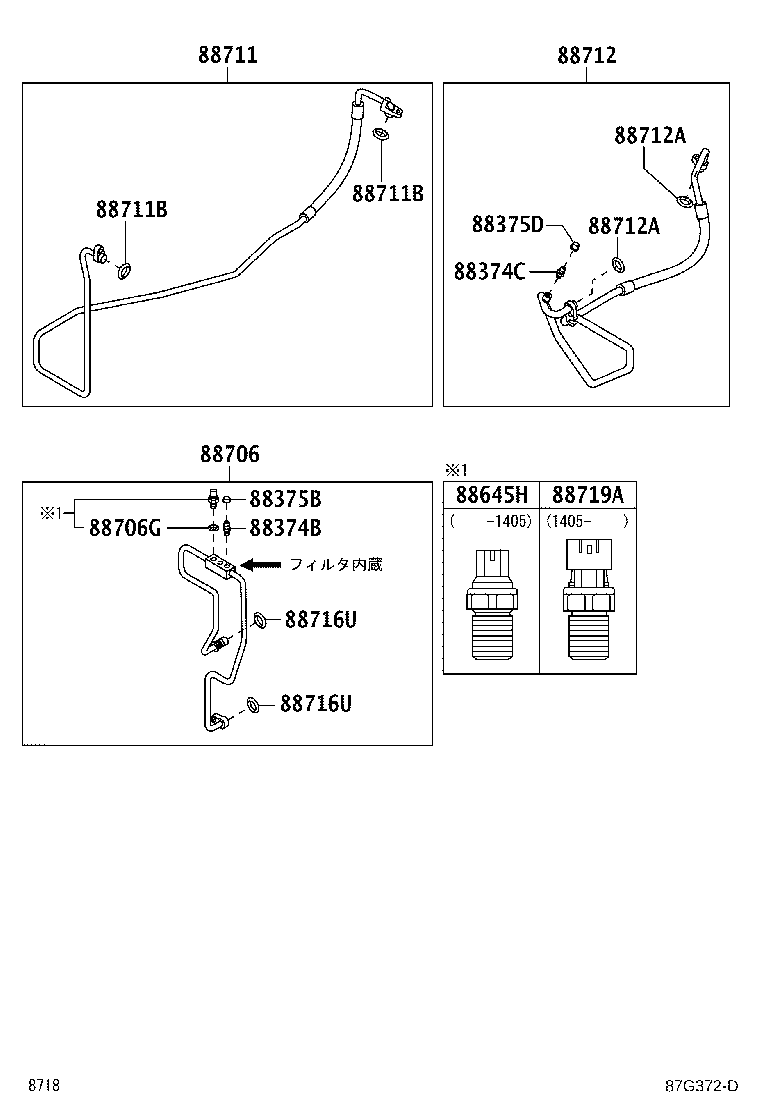

ILLUST NO. 2 OF 2(1112-1711)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
S321,331 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
S321,331..PS2 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
S321,331 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
S321,331..PS2 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 15188-B5090 |
S321,331 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B5120 |
S321,331..TBO |
1 | ||
| 88711-B5110 |
S321,331..NTBO |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
S321,331..PS2 |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
S321,331..PS2 |
2 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B5070 |
S321,331 |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
S321,331..PS2 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
S321,331..PS2 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
S321,331 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
S321,331 |
2 | ||
