S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

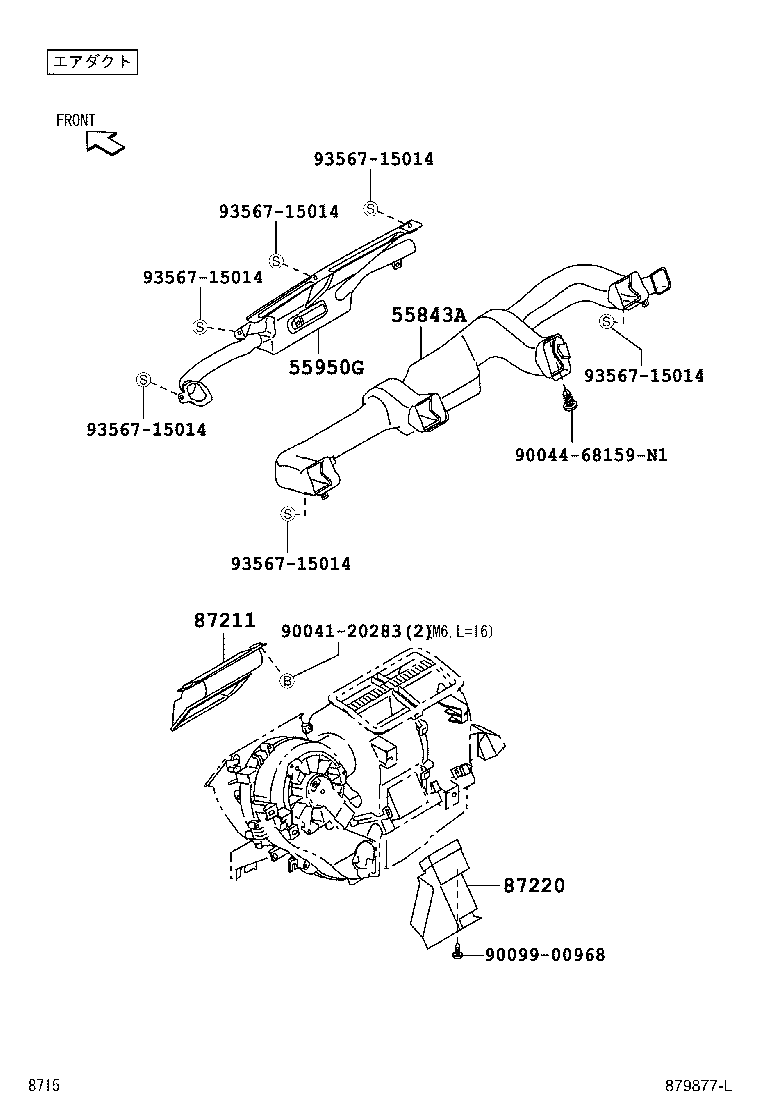

(1112-1711)

Click highlighted areas on diagram

diagram 55843A 55950G 87211 87220 9004120283 9004468159N1 9009900968 9356715014 9356715014 9356715014 9356715014 9356715014 9356715014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-B5010

S321,331..PS2

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-B5010

S321,331..PS2

 1
87211 - DUCT, AIR, NO.1
87211-B5010

S321,331

ﾊﾟｯｷﾝ付き

 1
87220 - DUCT ASSY, AIR
87220-B5010

S321,331..PS2

 1
Common parts
90041-20283
90044-68159N1
90099-00968
93567-15014

(1504-1711)

Click highlighted areas on diagram

diagram 55763B5020 5851 8202 8718 88625P 91631G0612
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171

S321,331

 1
Common parts
55763-B5020
91631-G0612
Linked diagrams
5851
8202
8718

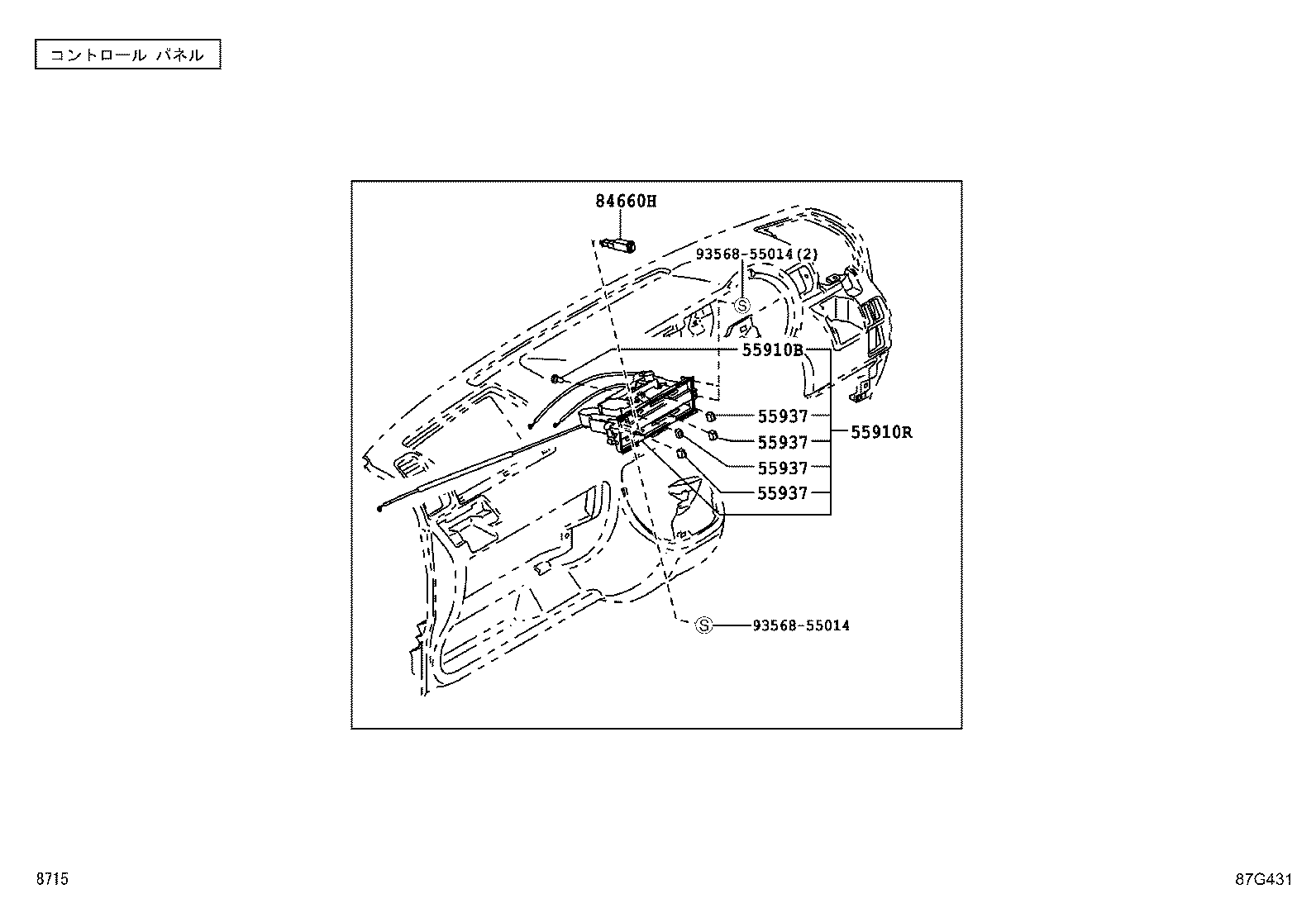

(1112-1711)

Click highlighted areas on diagram

diagram 55910B 55910R 55937 55937 55937 55937 84660H 9356855014 9356855014
Part # Description Qty Price
55910B - BULB, HEATER CONTROL
9004C-81004

S321,331..PS2

14V 1.4W W/黄色ｷｬｯﾌﾟ

 1
55910R - CONTROL ASSY, HEATER
55910-B5011

S321,331

 1
55910-B5010

S321,331..PS2

 1
55937 - KNOB, HEATER CONTROL LEVER
55925-87202

S321,331..PS2

 4
55937 - KNOB, HEATER CONTROL LEVER
55925-87202

S321,331..PS2

 4
55937 - KNOB, HEATER CONTROL LEVER
55925-87202

S321,331..PS2

 4
55937 - KNOB, HEATER CONTROL LEVER
55925-87202

S321,331..PS2

 4
84660H - SWITCH ASSY, COOLER CONTROL
84660-97201

S321,331

ｲﾝｼﾞｹｰﾀ=LEDﾀｲﾌﾟ

 1
Common parts
93568-55014
