S321M-ZQGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

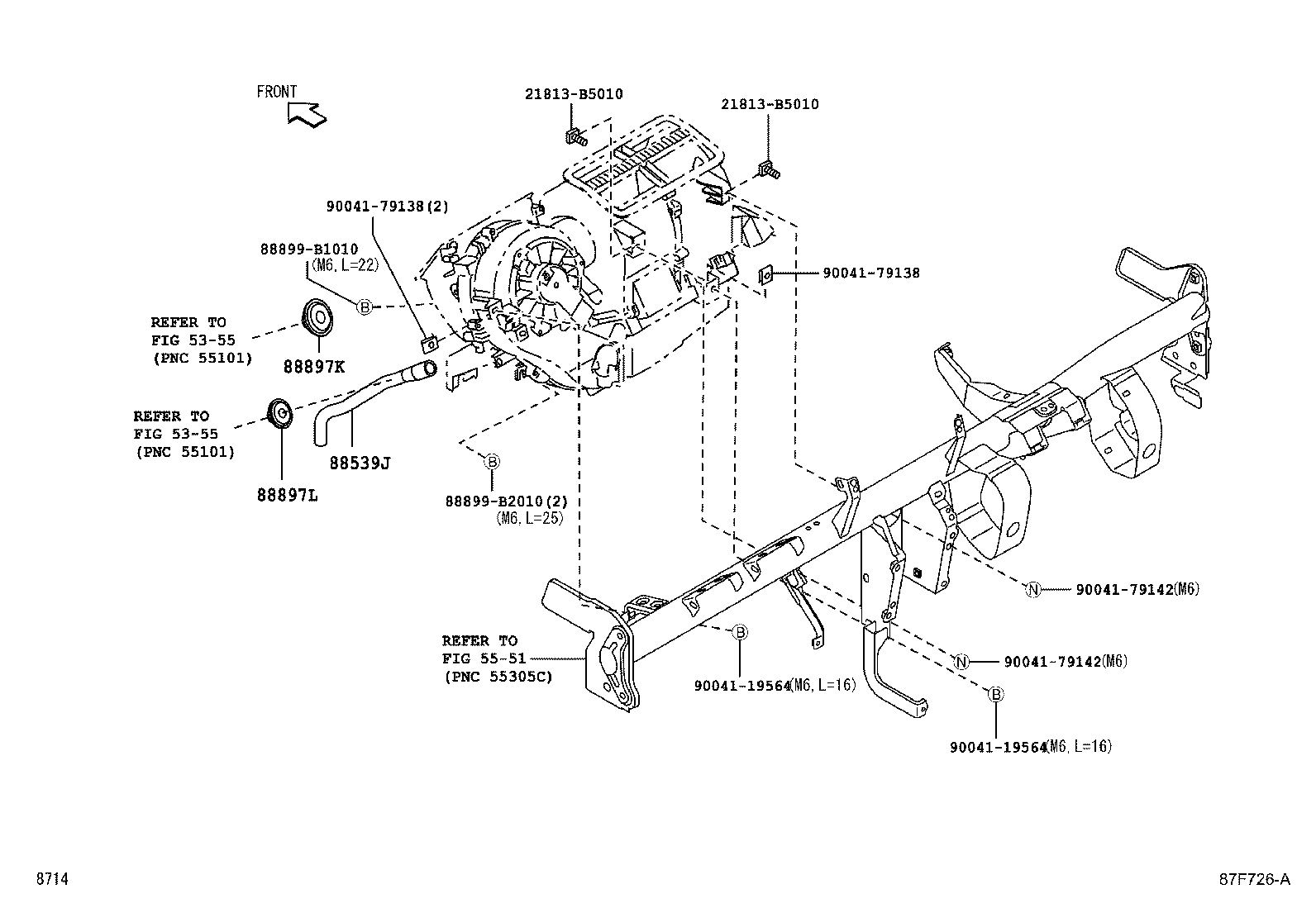

ILLUST NO. 1 OF 2(1112-1711)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-B5010 |
S321,331..PS2 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-B5010 |
S321,331..PS2 |
1 | ||
| 88897L - GROMMET (FOR DRAIN HOSE) | ||||
| 88897-87210 |
S321,331..PS2 |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 88899-B1010 | ||||
| 88899-B2010 | ||||
| 90041-19564 | ||||
| 90041-79138 | ||||
| 90041-79142 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 5551 | ||||

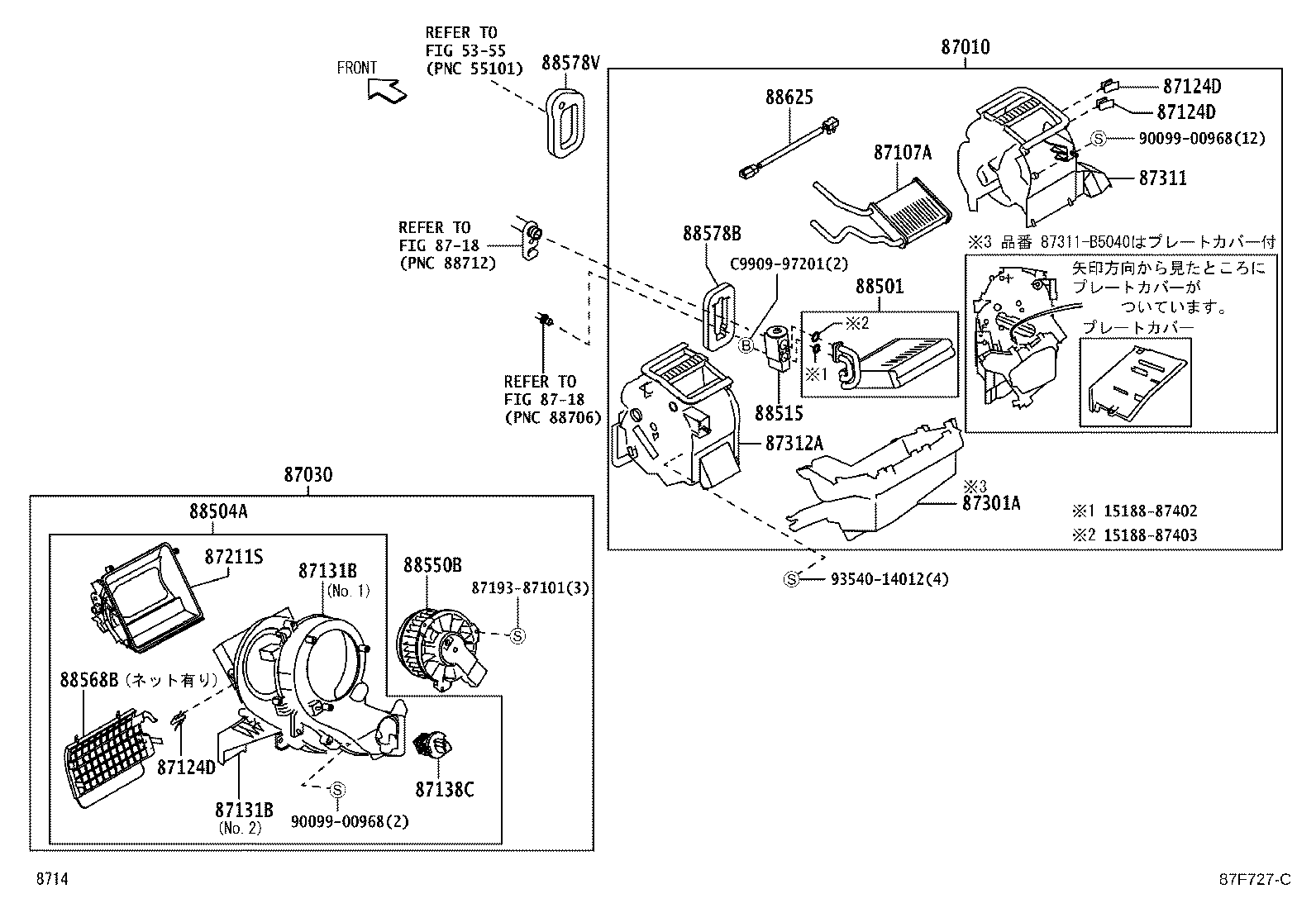

ILLUST NO. 2 OF 2(1112-1711)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-97504 |
S321,331..PS2 寒冷地仕様 |
1 | ||
| 87010-97503 |
S321,331..PS2 |
1 | ||
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-B5030 |
S321,331..PS2 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-97508 |
S321,331..PS2 ｽﾎﾟﾝｼﾞ付き |
1 | ||
| 87107-97509 |
S321,331..PS2 寒冷地仕様 |
1 | ||
| 87124D - CLAMP, HEATER, NO.3 | ||||
| 87126-87501 |
S321,331..PS2 |
3 | ||
| 87124D - CLAMP, HEATER, NO.3 | ||||
| 87126-87501 |
S321,331..PS2 |
3 | ||
| 87124D - CLAMP, HEATER, NO.3 | ||||
| 87126-87501 |
S321,331..PS2 |
3 | ||
| 87131B - CASE, HEATER BLOWER | ||||
| 87103-97503 |
S321,331..PS2 NO.2 |
1 | ||
| 87103-97502 |
S321,331..PS2 NO.1 |
1 | ||
| 87131B - CASE, HEATER BLOWER | ||||
| 87103-97503 |
S321,331..PS2 NO.2 |
1 | ||
| 87103-97502 |
S321,331..PS2 NO.1 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-B5010 |
S321,331..PS2 |
1 | ||
| 87211S - DUCT, AIR | ||||
| 87211-B5080 |
S321,331..PS2 ﾌｨﾙﾀ無し |
1 | ||
| 87301A - CASE SUB-ASSY, HEATER | ||||
| 87311-B5040 |
S321,331 |
1 | ||
| 87311 - CASE, HEATER, NO.1 | ||||
| 87311-97526 |
S321,331 寒冷地仕様 |
1 | ||
| 87311-97523 |
S321,331 |
1 | ||
| 87312A - CASE, HEATER,NO.2 | ||||
| 87311-97524 |
S321,331 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88304-97501 |
S321,331..PS2 |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87103-B5030 |
S321,331 寒冷地仕様,ASSY,NO.87010B5024 |
1 | ||
| 87103-B5030 |
S321,331 ASSY,NO.87010B5014 |
1 | ||
| 87103-B5030 |
S321,331 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-B1030 |
S321,331..PS2 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-97501 |
S321,331..PS2 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-B5040 |
S321,331 寒冷地仕様,ASSY,NO.87010B5024 |
1 | ||
| 88568-B5040 |
S321,331 |
1 | ||
| 88568-B5040 |
S321,331 ASSY,NO.87010B5014 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-B5020 |
S321,331..PS2 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-97512 |
S321,331..PS2 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-97502 |
S321,331..PS2 |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 93540-14012 | ||||
| C9909-97201 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8718 | ||||
