Toyota Pixis van S321M MIRROR - JDM Part Detective

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-B5011E0	S321,331 -	04/2015 - 11/2017	1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90049-51157	S321,331 12V 8W T10,ｿｹｯﾄ無し	04/2015 - 11/2017	1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-B5010	S321,331	04/2015 - 11/2017	1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-B5010	S321,331	04/2015 - 11/2017	1
87853 - BASE, INNER REAR VIEW MIRROR
87852-B5010	S321,331	04/2015 - 11/2017	2
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87910-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-B5010	S321,331..CR	04/2015 - 11/2017	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-B5020A2	S321,331..CR..PS2 WHITE,W09 ,W19,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020A1	S321,331..CR..PS2 WHITE PEARL MC.CS,W24,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020C1	S321,331..CR..PS2 BLACK M.M.,X07,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87940-B5020B2	S321,331..CR..PS2 SILVER ME.,S28,ﾀｲﾌﾟ B	12/2011 - 11/2017	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-B5010	S321,331..CR	04/2015 - 11/2017	1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-B5010	S321,331..CR..PS2	12/2011 - 11/2017	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-B5010	S321,331..CR	04/2015 - 11/2017	1
Common parts
90041-48009
90041-79104
93270-16012

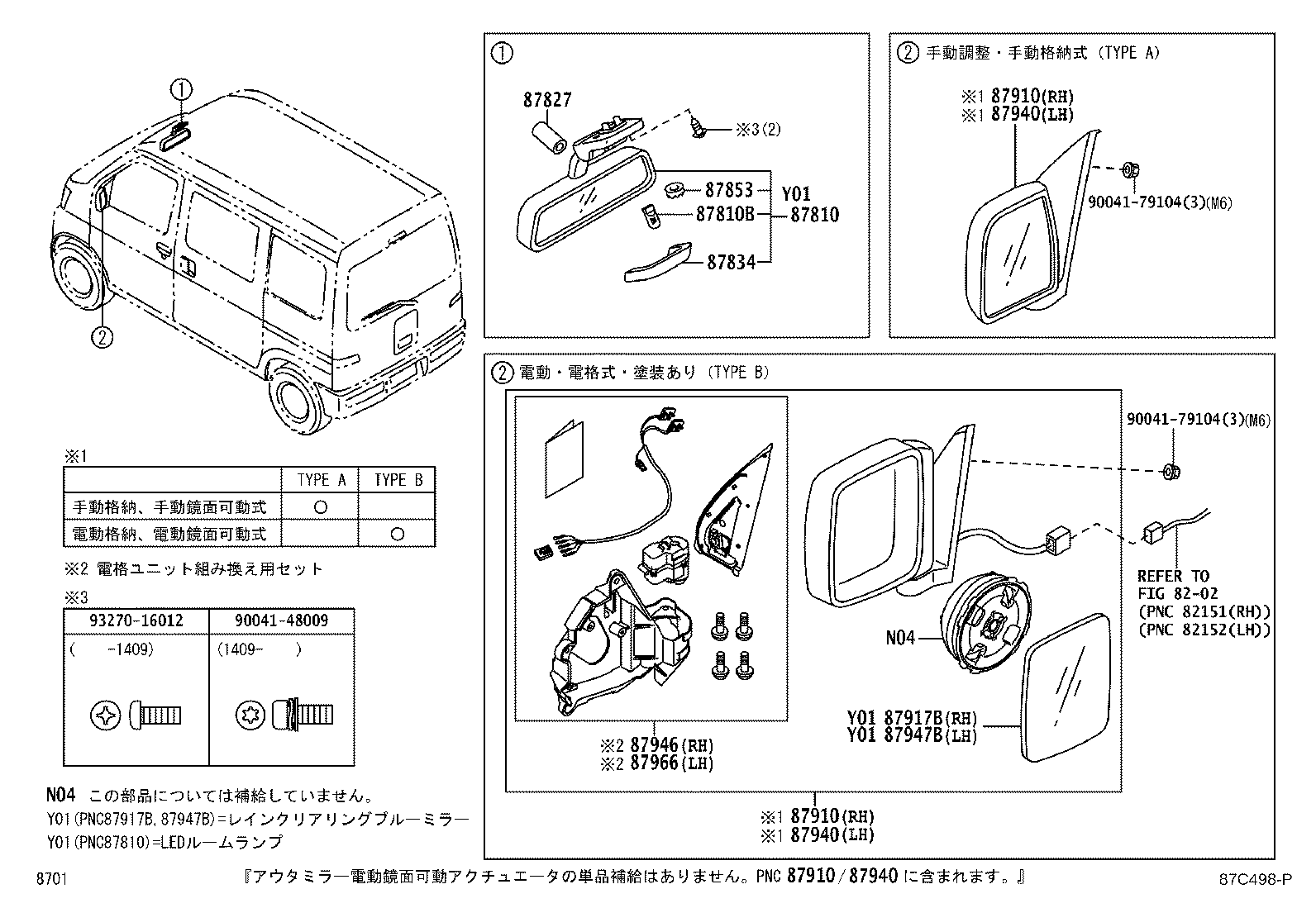

Linked diagrams
8202

S321M-ZQGF3 (2015)

(1112-1711)
