S321M-ZQGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1711)

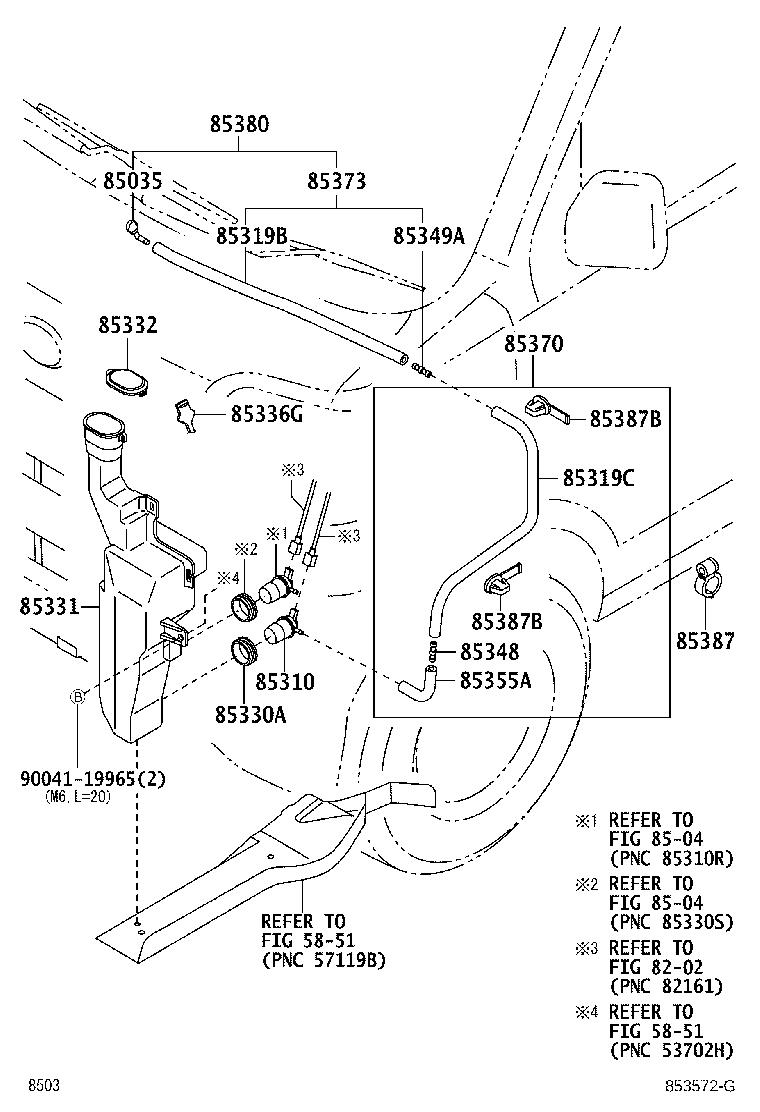

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-97503 |
S321,331..PS2 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-97502 |
S321,331..PS2 |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85376-87202 |
S321,331..PS2 |
1 | ||
| 85319C - HOSE, WASHER | ||||
| 85376-87201 |
S321,331..PS2 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85373-97202 |
S321,331..PS2 |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85355-97501 |
S321,331 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-97502 |
S321,331..PS2 |
1 | ||
| 85336G - GAGE, WATER LEVEL | ||||
| 85312-97501 |
S321,331..PS2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-87201 |
S321,331..PS2 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-87201 |
S321,331..PS2 |
1 | ||
| 85355A - JOINT, WINDSHIELD WASHER ELBOW | ||||
| 85355-87701 |
S321,331 |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-B5010 |
S321,331..PS2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85370-97516 |
S321,331..PS2 長さ=440 |
1 | ||
| 85380 - NOZZLE & HOSE ASSY, FR WASHER | ||||
| 85381-B5010 |
S321,331..PS2 |
1 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-2C150 |
S321,331..PS2 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-52090 |
S321,331..PS2 |
2 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-52090 |
S321,331..PS2 |
2 | ||
| Common parts | ||||
| 90041-19965 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 8202 | ||||
| 8504 | ||||
