S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

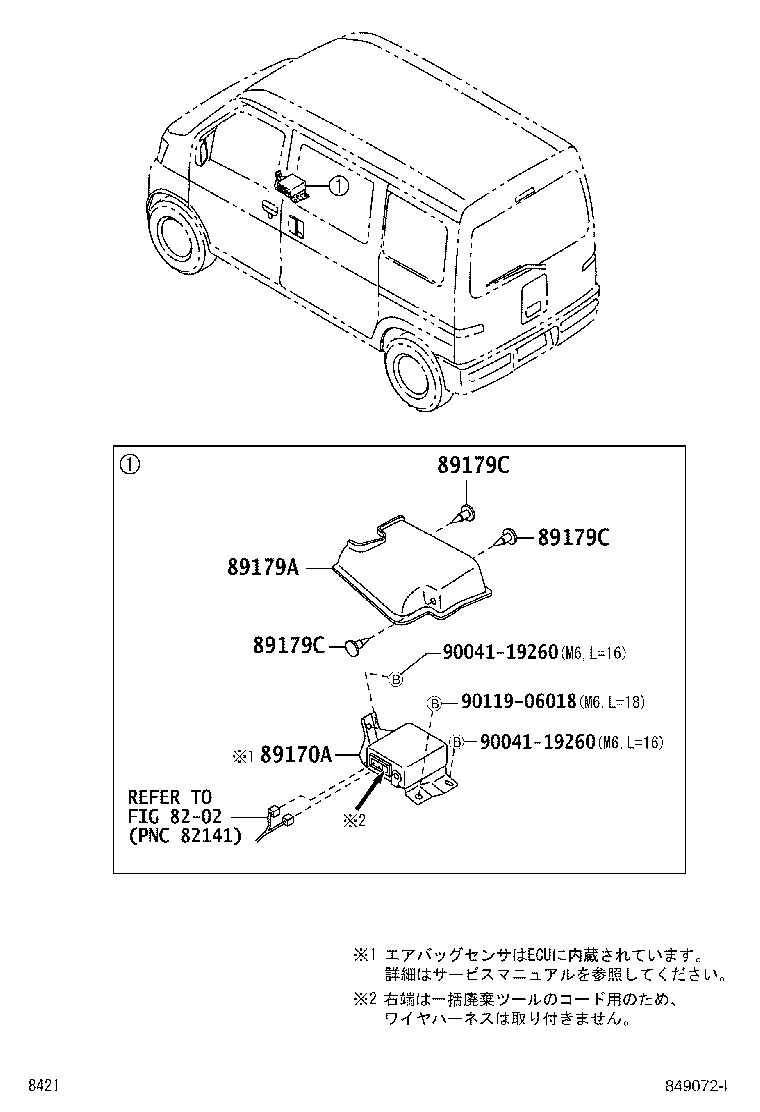

Click highlighted areas on diagram

diagram 8202 89170A 89179A 89179C 89179C 89179C 9004119260 9004119260 9011906018
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-B5040

S321,331..PS2

Gｾﾝｻｰ付き

 1
89179A - COVER, AIR BAG SENSOR
89179-B5021B1

S321,331..PS2

DK.GRAY,TRIM1#

 1
89179C - CLIP
90044-68061C0

S321,331

BLACK,TRIM1#

 3
90044-68061B1

S321,331..PS2

DK.GRAY,TRIM1#

 3
89179C - CLIP
90044-68061C0

S321,331

BLACK,TRIM1#

 3
90044-68061B1

S321,331..PS2

DK.GRAY,TRIM1#

 3
89179C - CLIP
90044-68061C0

S321,331

BLACK,TRIM1#

 3
90044-68061B1

S321,331..PS2

DK.GRAY,TRIM1#

 3
Common parts
90041-19260
90119-06018
Linked diagrams
8202
