S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

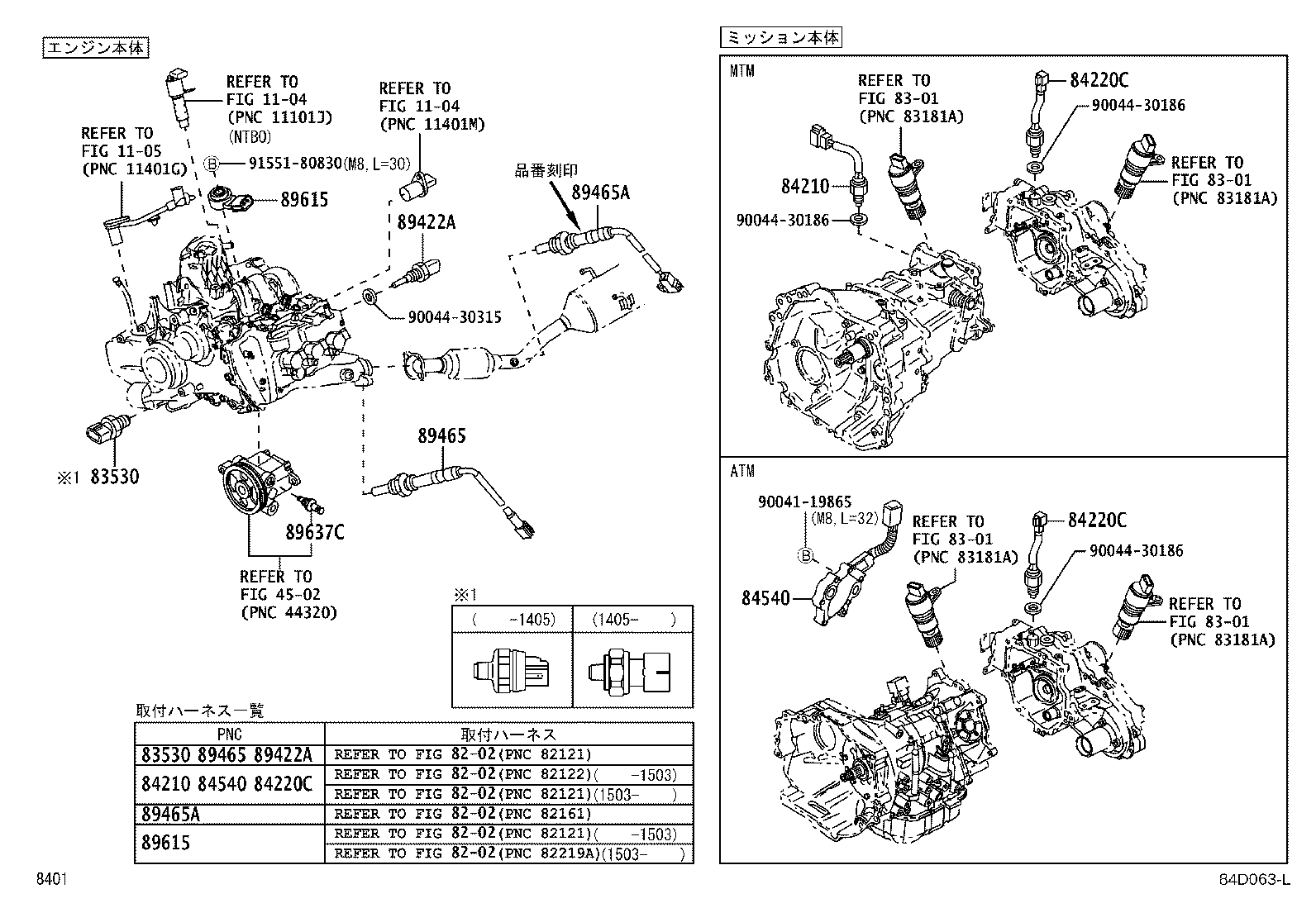

ILLUST NO. 1 OF 6(1112-1711)

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 1104 1104 1105 4502 8202 8202 8202 8202 8202 8202 8301 8301 8301 8301 83530 83530 84210 84210 84220C 84220C 84220C 84540 84540 89422A 89422A 89465 89465 89465A 89465A 89615 89615 89637C 9004119865 9004430186 9004430186 9004430186 9004430315 9155180830
Part # Description Qty Price
84540 - SWITCH ASSY, NEUTRAL START
84540-B0010

S321,331..4FC

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-B0010

S321,331..4FC

 1
89422A - SENSOR, WATER TEMPERATURE
89422-16010

S321,331

 1
89422A - SENSOR, WATER TEMPERATURE
89422-16010

S321,331

 1
89465A - SENSOR, OXYGEN NO.2
89465-B5012

S321,331

品番刻印有り

 1
89465A - SENSOR, OXYGEN NO.2
89465-B5012

S321,331

品番刻印有り

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

S321,331

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

S321,331

 1
89637C - SENSOR, OIL PRESSURE
89630-97201

S321,331..PS2

 1
Common parts
90041-19865
90044-30186
90044-30315
91551-80830
Linked diagrams
1104
1105
4502
8202
8301

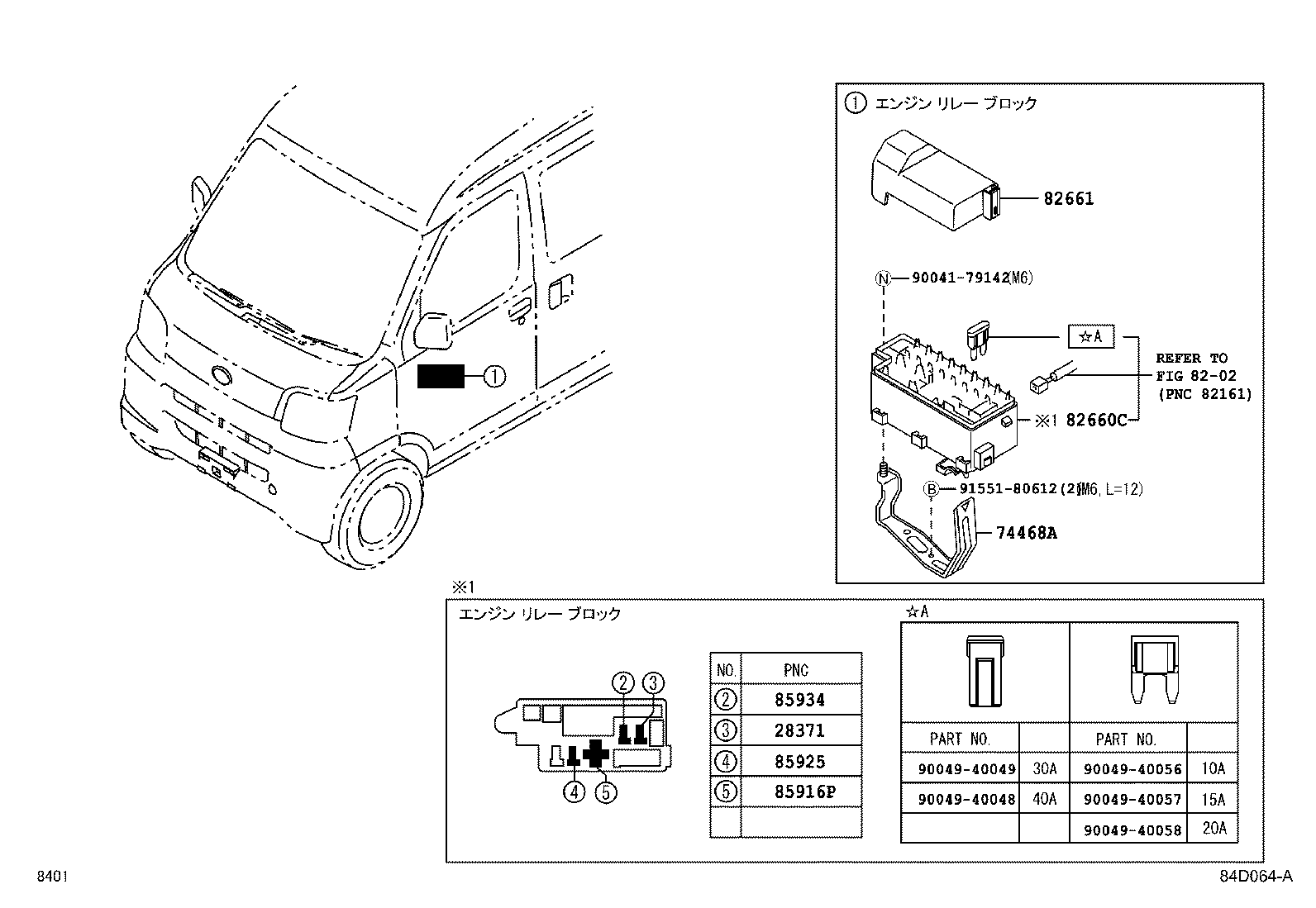

ILLUST NO. 2 OF 6(1112-1711)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 28371 74468A 8202 82660C 82661 85916P 85925 85934 9004179142 9004940048 9004940049 9004940056 9004940057 9004940058 9155180612
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90049-88004

KFDET..S321,331..PS2;KFVE..S321,331..(CR,DLX)..PS2

 1
74468A - BRACKET, RELAY BLOCK
74468-B5010

S321,331..PS2

 1
82660C - BLOCK ASSY, RELAY
82660-B5020

S321,331..NTBO..PS2

 1
82660-B1010

S321,331..TBO..PS2

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-B5100

S321,331

 1
85916P - RELAY, HEADLAMP
90049-87026

S321,331..PS2

 1
85925 - RELAY, RADIATOR FAN
90049-88004

S321,331..PS2

 1
85934 - RELAY, MAGNET-CLUTCH
90049-88004

S321,331..PS2

 1
Common parts
90041-79142
90049-40048
90049-40049
90049-40056
90049-40057
90049-40058
91551-80612
Linked diagrams
8202

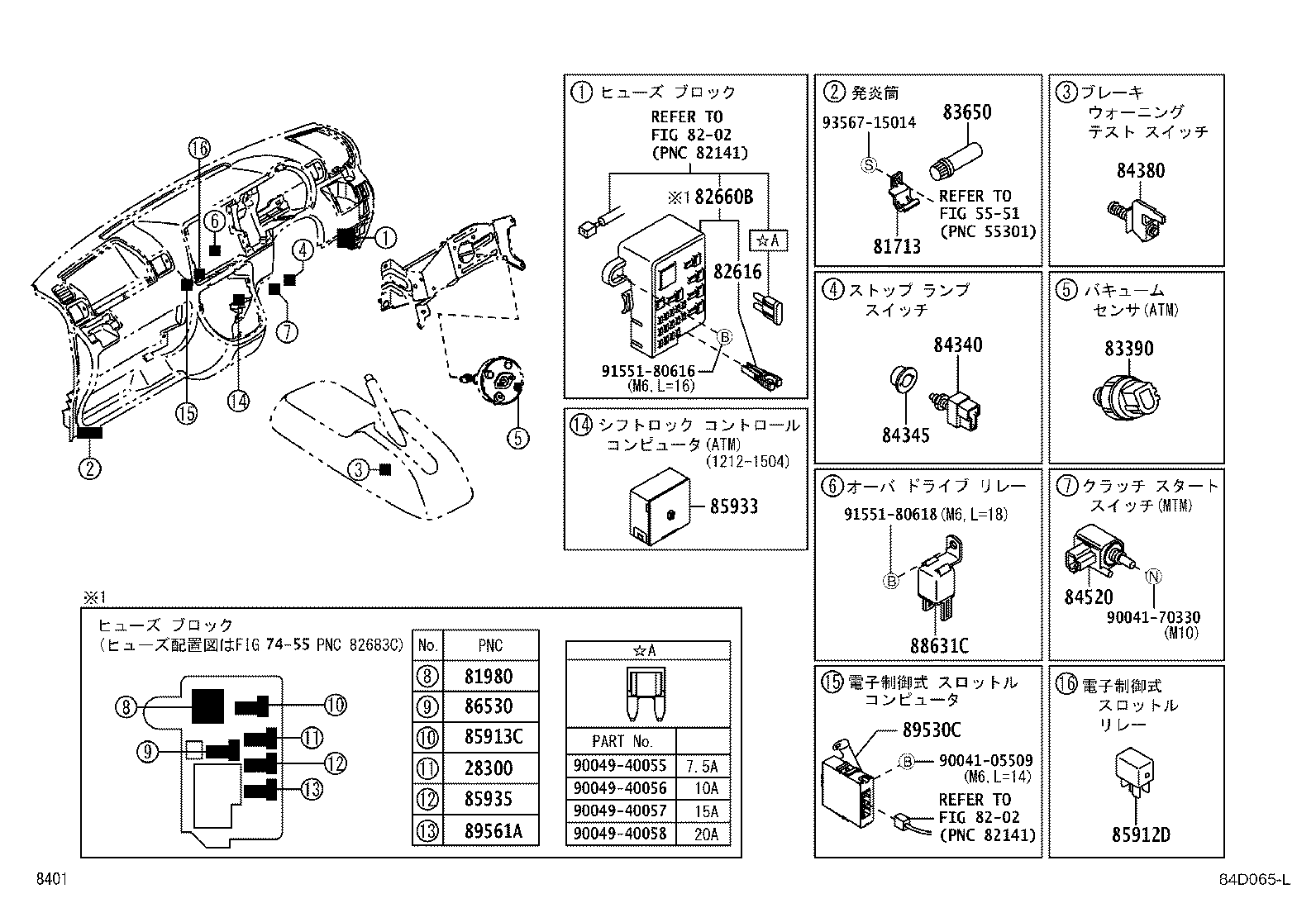

ILLUST NO. 3 OF 6(1112-1711)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ NO.1

diagram 28300 5551 7455 81713 81980 8202 8202 82616 82660B 83390 83650 84340 84345 84380 84520 85912D 85913C 85933 85935 86530 88631C 89530C 89561A 9004105509 9004170330 9004940055 9004940056 9004940057 9004940058 9155180616 9155180618 9356715014
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
90049-88004

KF#..S321,331..PS2

 1
81713 - HOLDER, FUSEE
62190-B5010

S321,331..PS2

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-97202

S321,331..(CR,DLX)..PS2

 1
82616 - PULLER, FUSE
82616-B2010

S321,331

 1
82660B - BLOCK ASSY, RELAY
82660-B5040

S321,331..(CR,DLX)..PS2

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-B1010

S321,331..4FC..PS2

 1
83650 - FUSEE
90049-86005

S321,331

 1
84340 - SWITCH ASSY, STOP LAMP
84340-B2010

S321,331..PS2

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-B2010

S321,331..PS2

 1
85912D - RELAY
90049-88004

S321,331

 1
85913C - RELAY, HEATER, NO.1
90049-88004

S321,331..PS2

 1
85935 - RELAY, FUEL PUMP
90049-88004

S321,331..PS2

 1
86530 - RELAY ASSY, HORN
90049-88004

S321,331..PS2

 1
89530C - COMPUTER ASSY, TRANSMISSION CONTROL
89530-B5140

S321..4FC..TBO

 1
89530-B5120

S321..4FC..NTBO

 1
89561A - RELAY, EFI
90049-88004

S321,331..PS2

 1
Common parts
90041-05509
90041-70330
90049-40055
90049-40056
90049-40057
90049-40058
91551-80616
91551-80618
93567-15014
Linked diagrams
5551
7455
8202

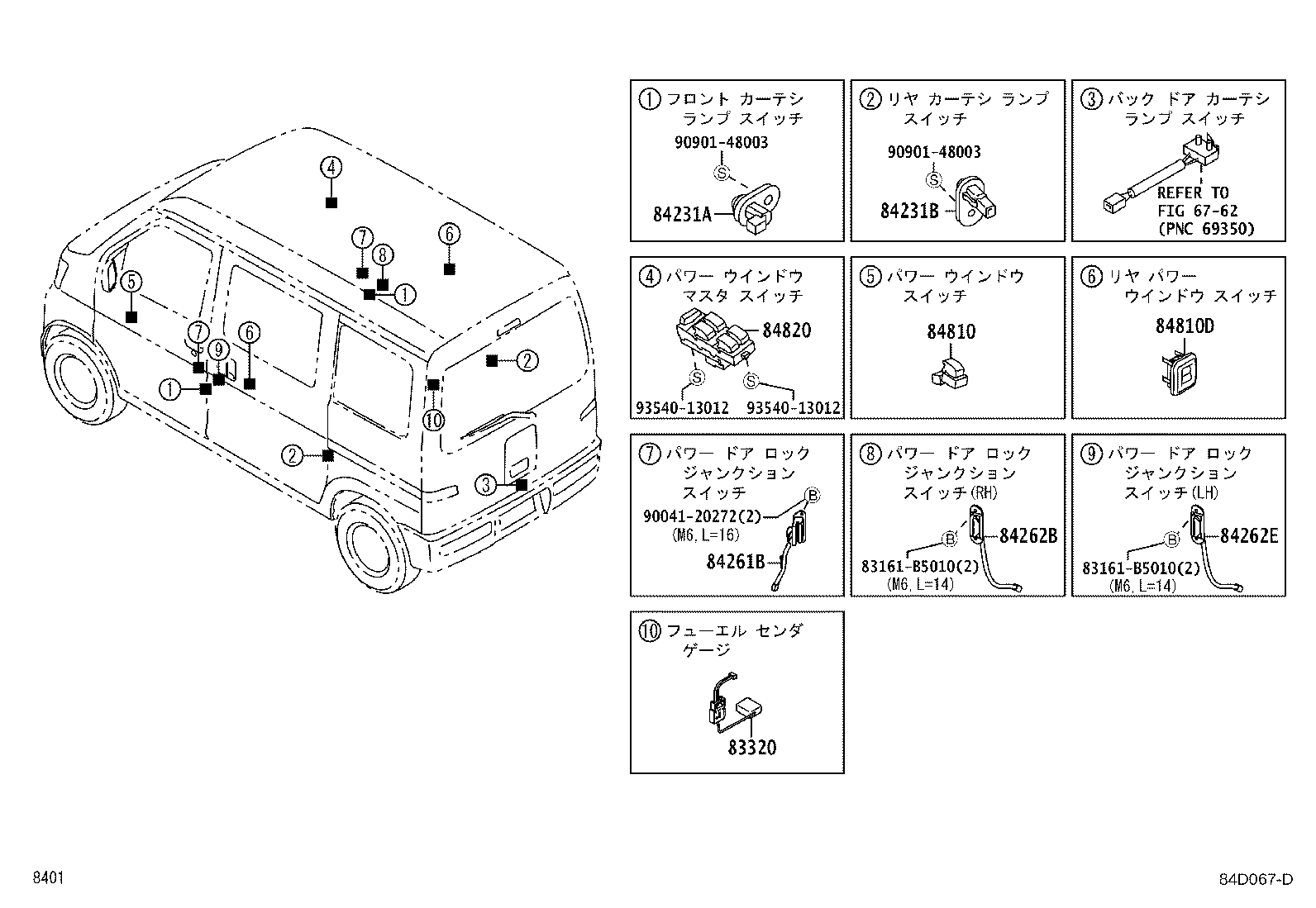

ILLUST NO. 6 OF 6(1112-1711)

Click highlighted areas on diagram

ﾄﾞｱ & ｼｰﾄ

diagram 6762 83161B5010 83161B5010 83320 84231A 84231B 84261B 84262B 84262E 84810 84810D 84820 9004120272 9090148003 9090148003 9354013012 9354013012
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83301-B5010

S321,331..PS2

 1
84231A - SWITCH, COURTESY LAMP
84231-97201

S321,331..PS2

 2
84231-B2130

S321,331

 2
84231B - SWITCH, COURTESY LAMP
84231-97401

S321,331..PS2

 2
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-B5040

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,ﾋﾟﾗｰ側

 2
84261-B5011

S321,331..CR

ﾋﾟﾗｰ側

 2
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-B5060

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,ｽﾗｲﾄﾞﾄﾞｱ側

 1
84262-B5030

S321,331..CR

ｽﾗｲﾄﾞﾄﾞｱ側

 1
84262E - JUNCTION, SLIDE DOOR CONTROL FEMALE, NO.2
84262-B5050

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,ｽﾗｲﾄﾞﾄﾞｱ側

 1
84262-B5010

S321,331..CR

ｽﾗｲﾄﾞﾄﾞｱ側

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-87104

S321,331..(CR,DLX)..PS2

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-97206B3

S321,331..CR..PS2

DK.GRAY,TRIM1#

 2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-B5021

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,ﾊﾟﾜｰｳｨﾝﾄﾞｳ ﾌﾛﾝﾄのみ

 1
84820-B5011

S321,331..CR

 1
Common parts
83161-B5010
90041-20272
90901-48003
93540-13012
Linked diagrams
6762

ILLUST NO. 5 OF 6(1112-1711)

Click highlighted areas on diagram

ｽﾃｱﾘﾝｸﾞ

diagram 4501 84140 84306 84450 84650
Part # Description Qty Price
84306 - CABLE SUB-ASSY, SPIRAL
84306-B1010

S321,331..PS2

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-B5010

S321,331..PS2

ｶﾌﾟﾗ(6ﾋﾟﾝ)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-B5074

S321,331

 1
84652-B5073

S321,331..PS2

 1
Linked diagrams
4501
