S321M-ZQGF3 (2015)
Toyota Pixis Van
(1112-1711)

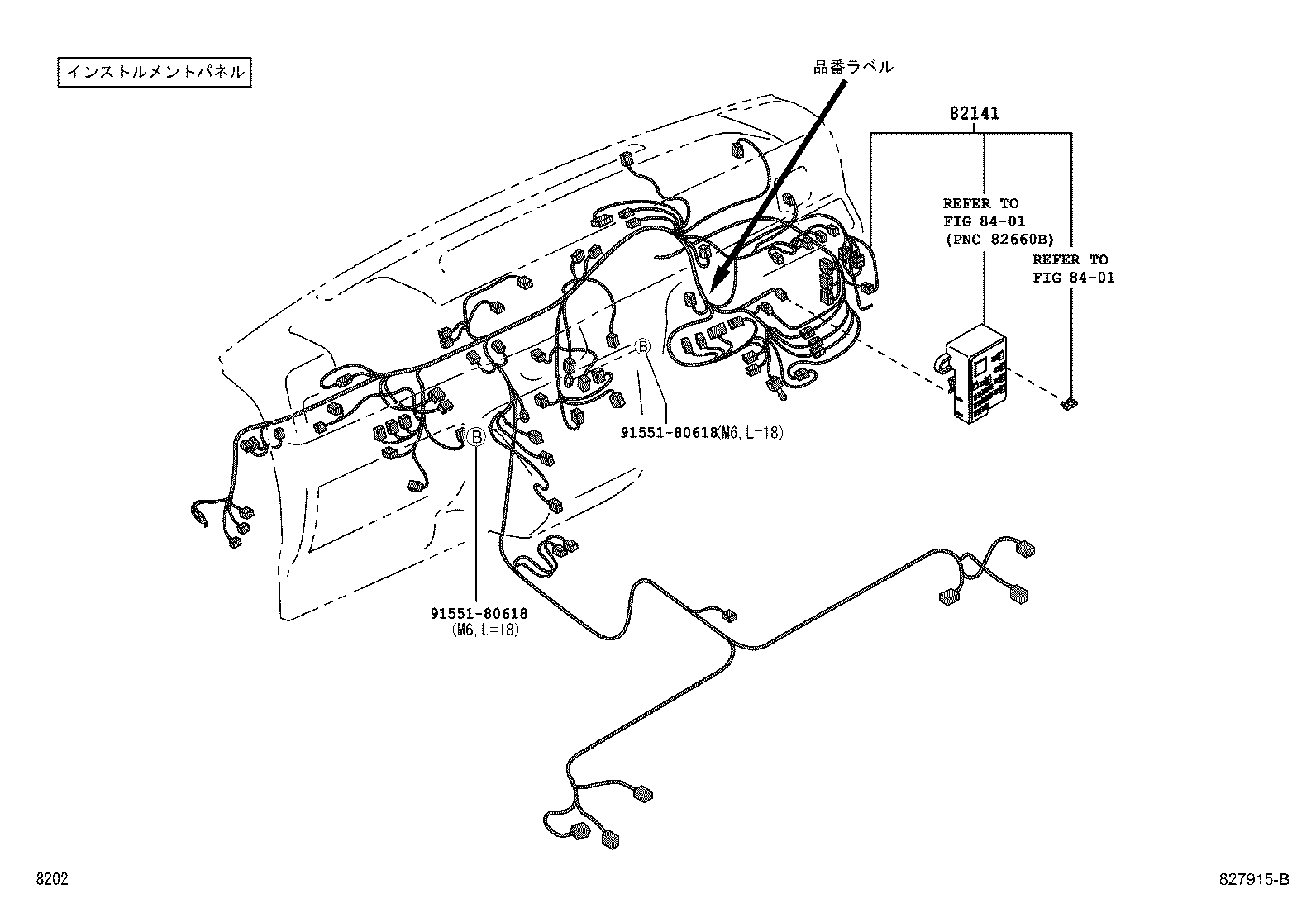

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-B5M20 |
S321,331..4FC..CR 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B5M00 |
S321,331..4FC..CR..NTBO ﾋﾞｼﾞﾈｽﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B5M01 |
S321,331..4FC..CR..NTBO ﾋﾞｼﾞﾈｽﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B5M21 |
S321,331..4FC..CR 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B5M22 |
S321,331..4FC..CR 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B5M02 |
S321,331..4FC..CR..NTBO ﾋﾞｼﾞﾈｽﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| Common parts | ||||
| 91551-80618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1112-1711)

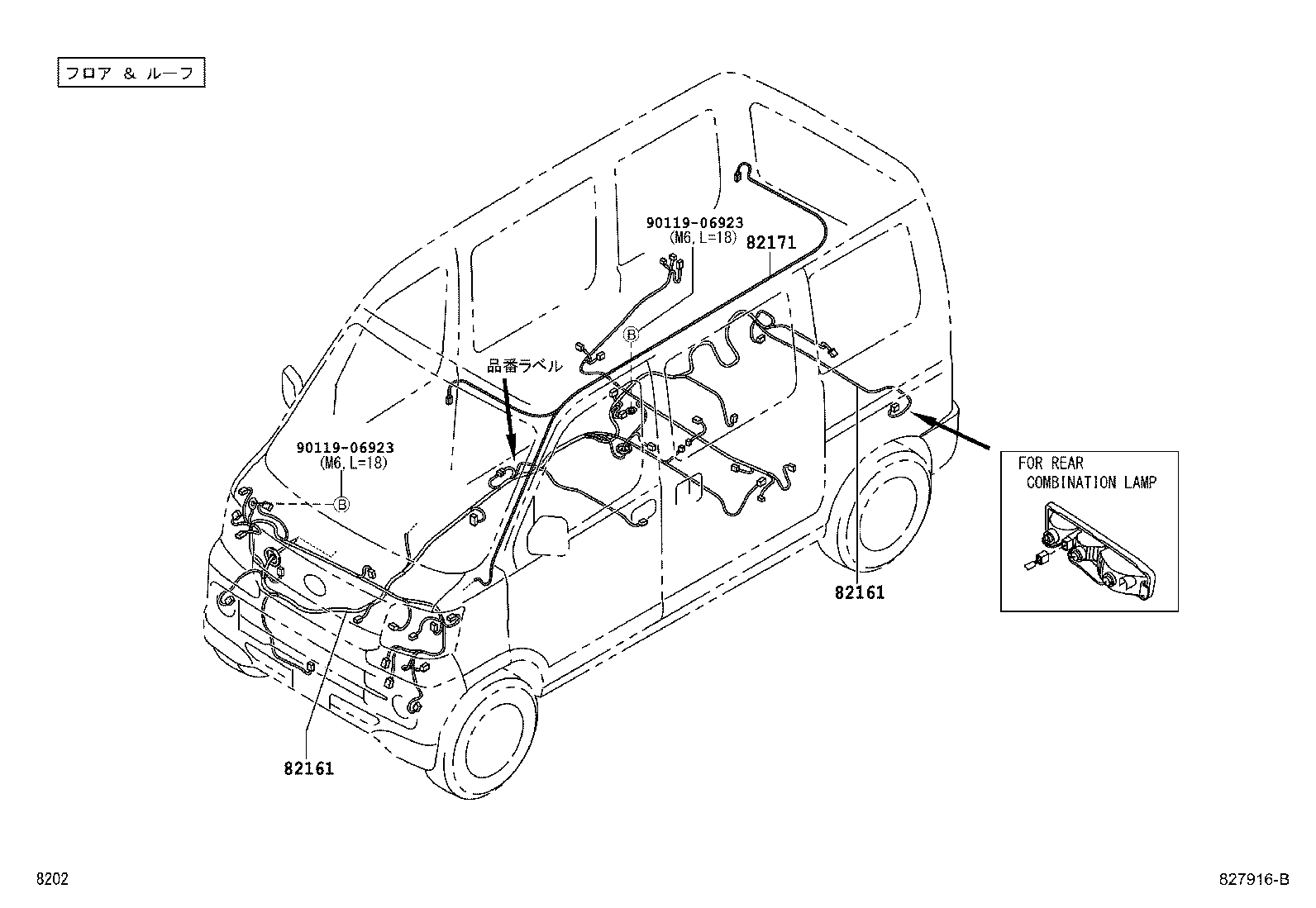

ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-B5U60 |
S321,331..4FC..CR..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U90 |
S321,331..4FC..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U91 |
S321,331..4FC..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U61 |
S321,331..4FC..CR..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B5U60 |
S321,331..4FC..CR..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U90 |
S321,331..4FC..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U91 |
S321,331..4FC..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5U61 |
S321,331..4FC..CR..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B5031 |
S321,331..CR..PS2 |
1 | ||
| 82171-B5081 |
S321,331..CR..PS2 ﾗｹﾞｰｼﾞ ﾙｰﾑ ﾗﾝﾌﾟ(LED) |
1 | ||
| 82171-B5021 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
(1112-1711)

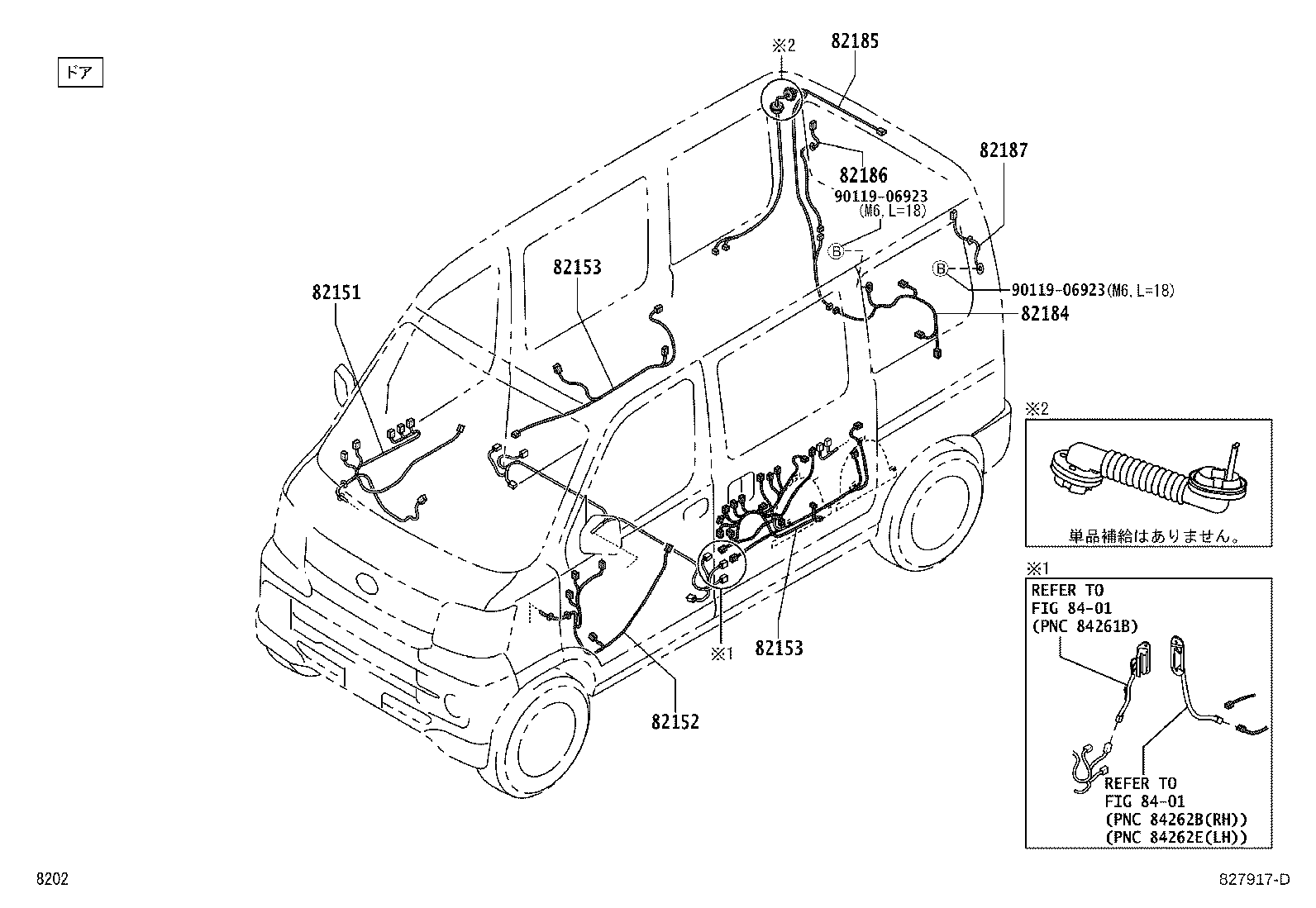

ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-B5050 |
S321,331..CR..PS2 |
1 | ||
| 82151-B5030 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-B5030 |
S321,331..CR..PS2 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
2 | ||
| 82153-B5020 |
S321,331..CR 品番ﾗﾍﾞﾙ有り |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
2 | ||
| 82153-B5020 |
S321,331..CR 品番ﾗﾍﾞﾙ有り |
2 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-B5010 |
S321,331..PS2 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-B5050 |
S321,331..HRF..PS2 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-B5010 |
S321,331 ﾃﾞﾌｫｯｶﾞ(+) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-B5010 |
S321,331 ﾃﾞﾌｫｯｶﾞ(−) |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1112-1711)

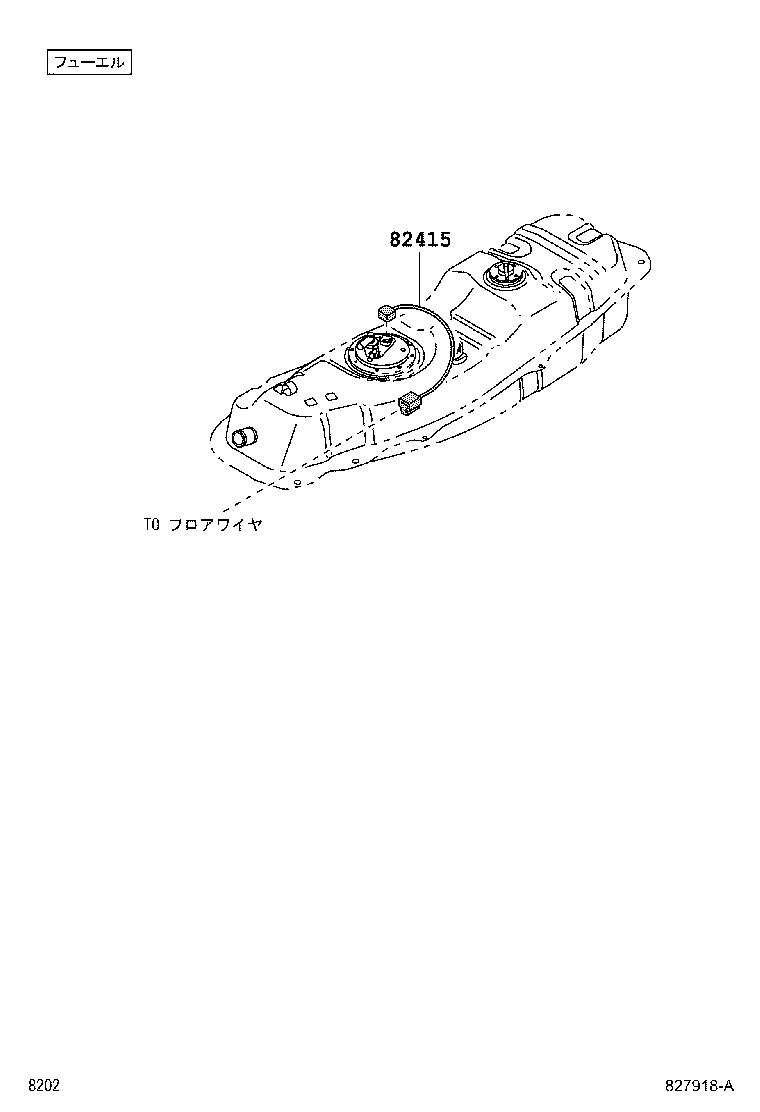

ﾌｭｰｴﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-B5010 |
S321,331..PS2 |
1 | ||
(1112-1711)

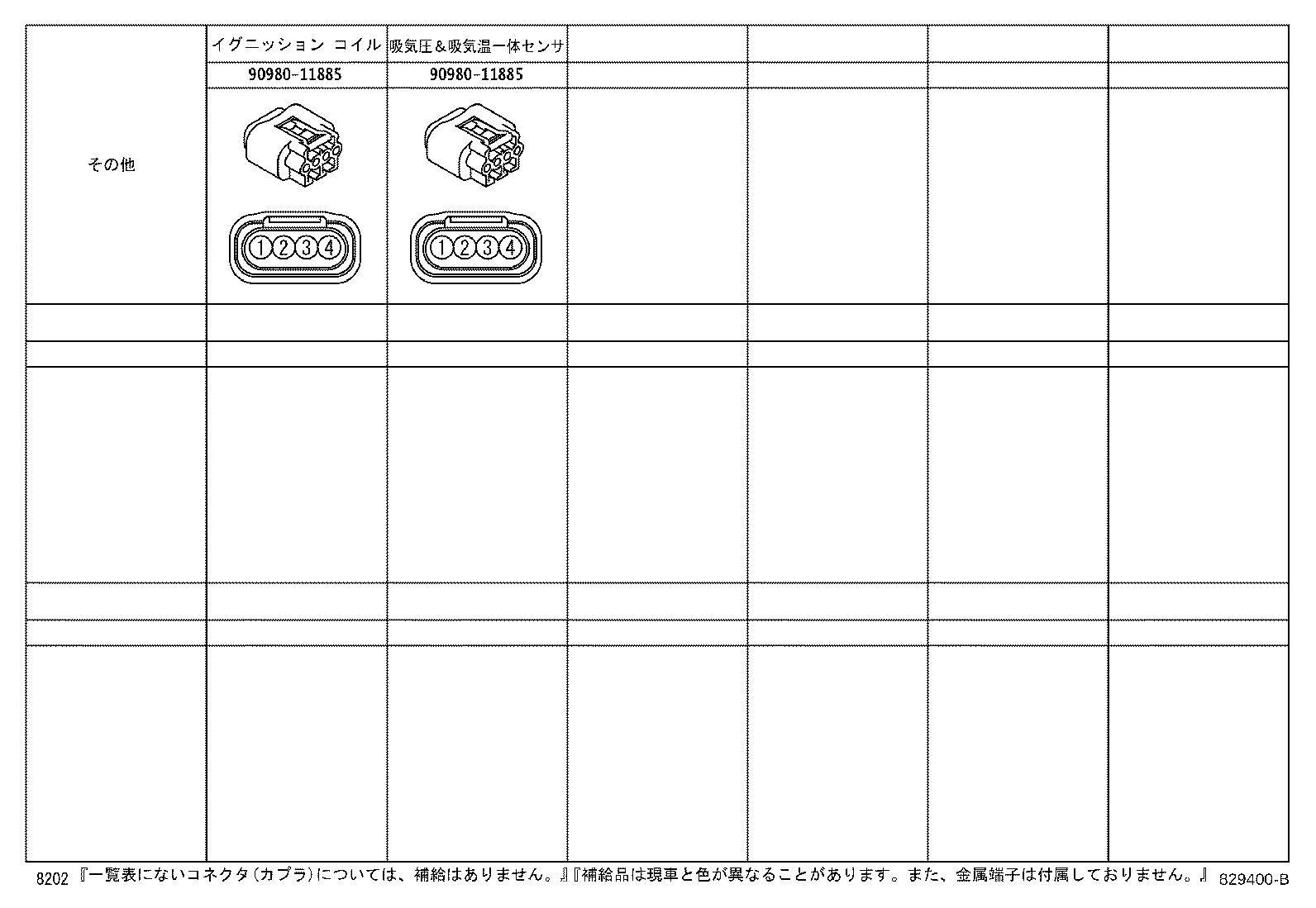

ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-11885 | ||||
(1504-1711)

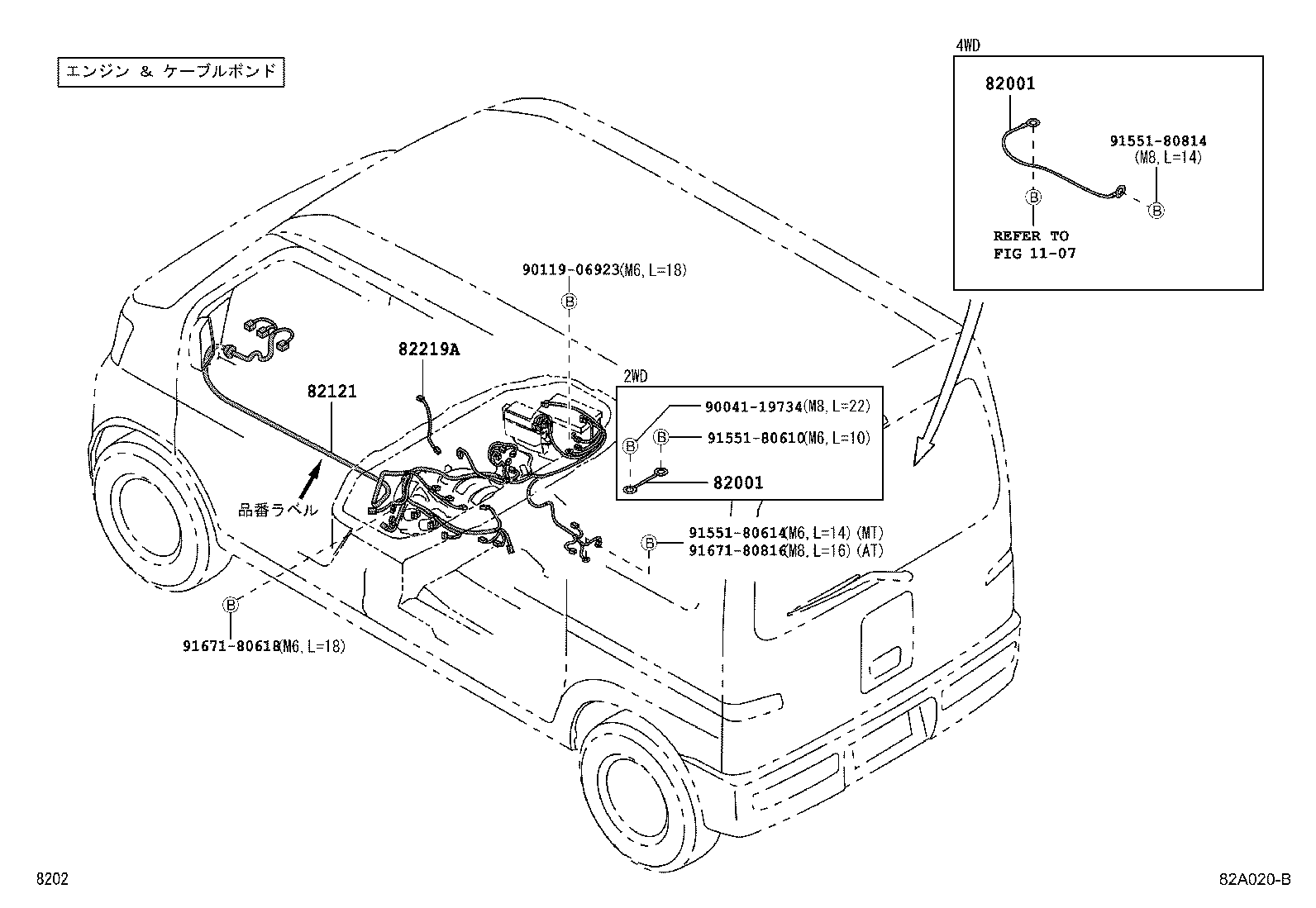

ｴﾝｼﾞﾝ & ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-B2011 |
S321..PS2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-B2011 |
S321..PS2 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-B5460 |
S321,331..4FC..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82121-B5480 |
S321,331..4FC..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-B5010 |
S321,331 |
1 | ||
| Common parts | ||||
| 90041-19734 | ||||
| 90119-06923 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91671-80618 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(1504-1711)

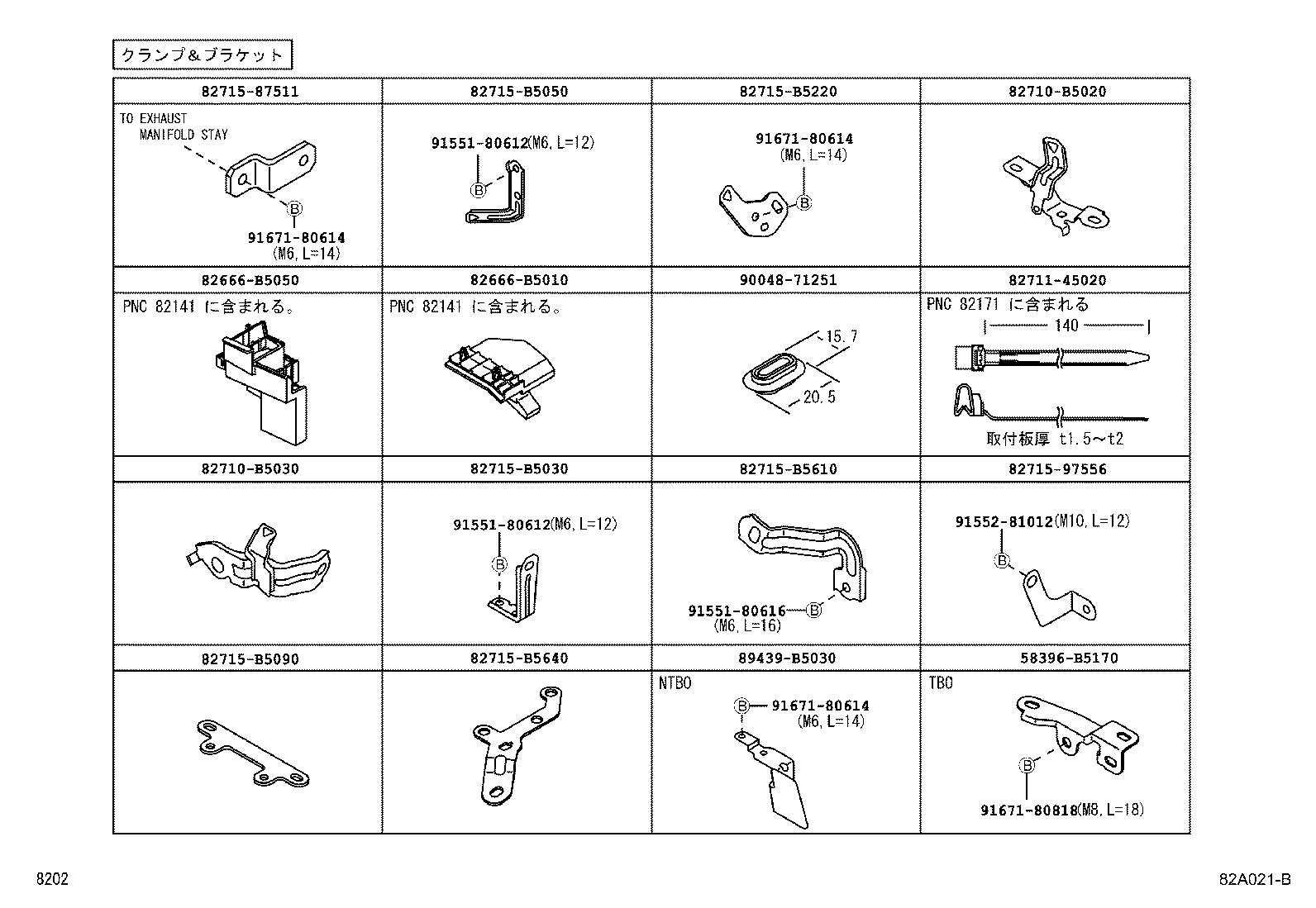

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58396-B5170 | ||||
| 82666-B5010 | ||||
| 82666-B5050 | ||||
| 82710-B5020 | ||||
| 82710-B5030 | ||||
| 82711-45020 | ||||
| 82715-87511 | ||||
| 82715-97556 | ||||
| 82715-B5030 | ||||
| 82715-B5050 | ||||
| 82715-B5090 | ||||
| 82715-B5220 | ||||
| 82715-B5610 | ||||
| 82715-B5640 | ||||
| 89439-B5030 | ||||
| 90048-71251 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91552-81012 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
(1112-1711)

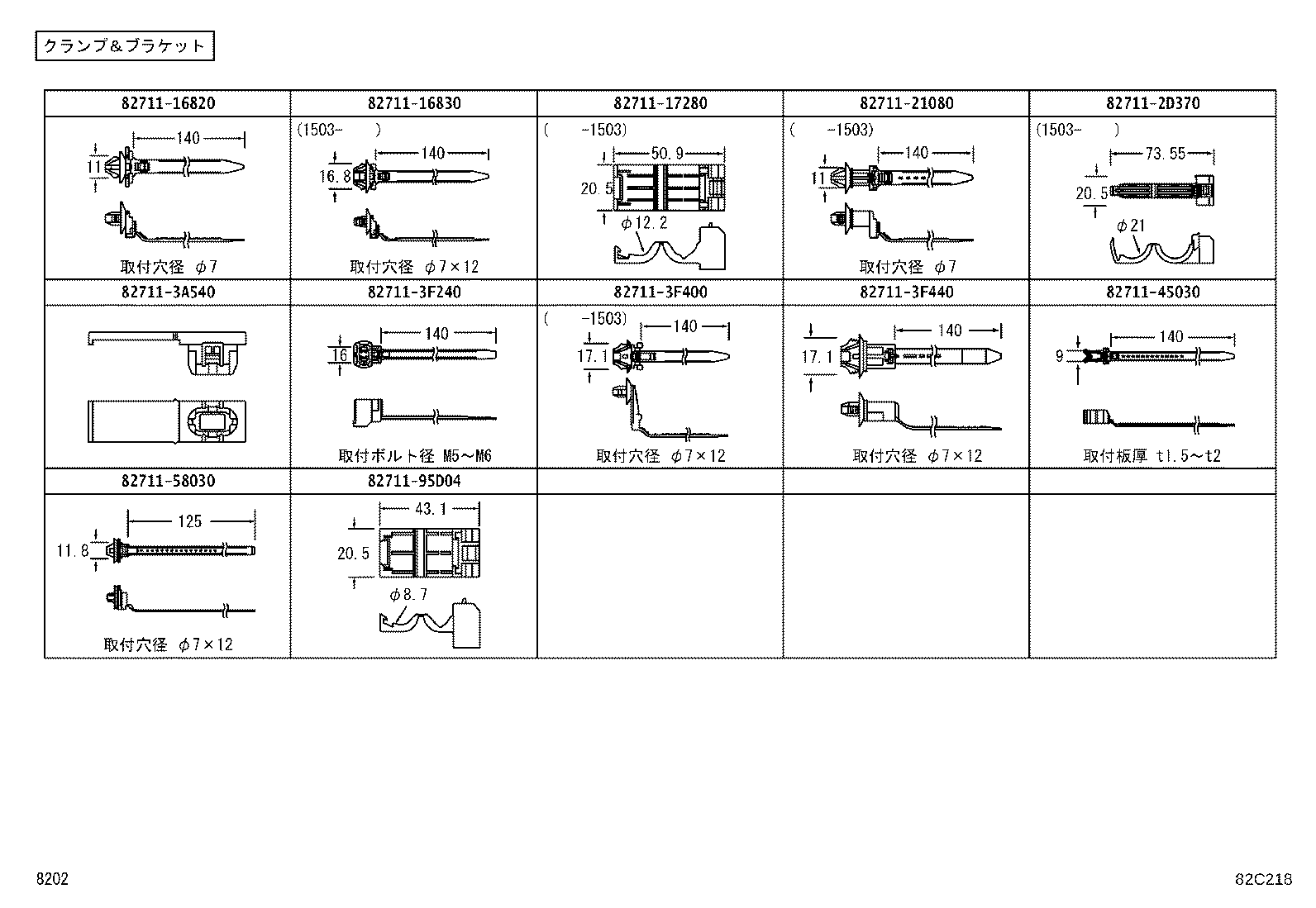

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 82711-17280 | ||||
| 82711-21080 | ||||
| 82711-2D370 | ||||
| 82711-3A540 | ||||
| 82711-3F240 | ||||
| 82711-3F400 | ||||
| 82711-3F440 | ||||
| 82711-45030 | ||||
| 82711-58030 | ||||
| 82711-95D04 | ||||
