S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

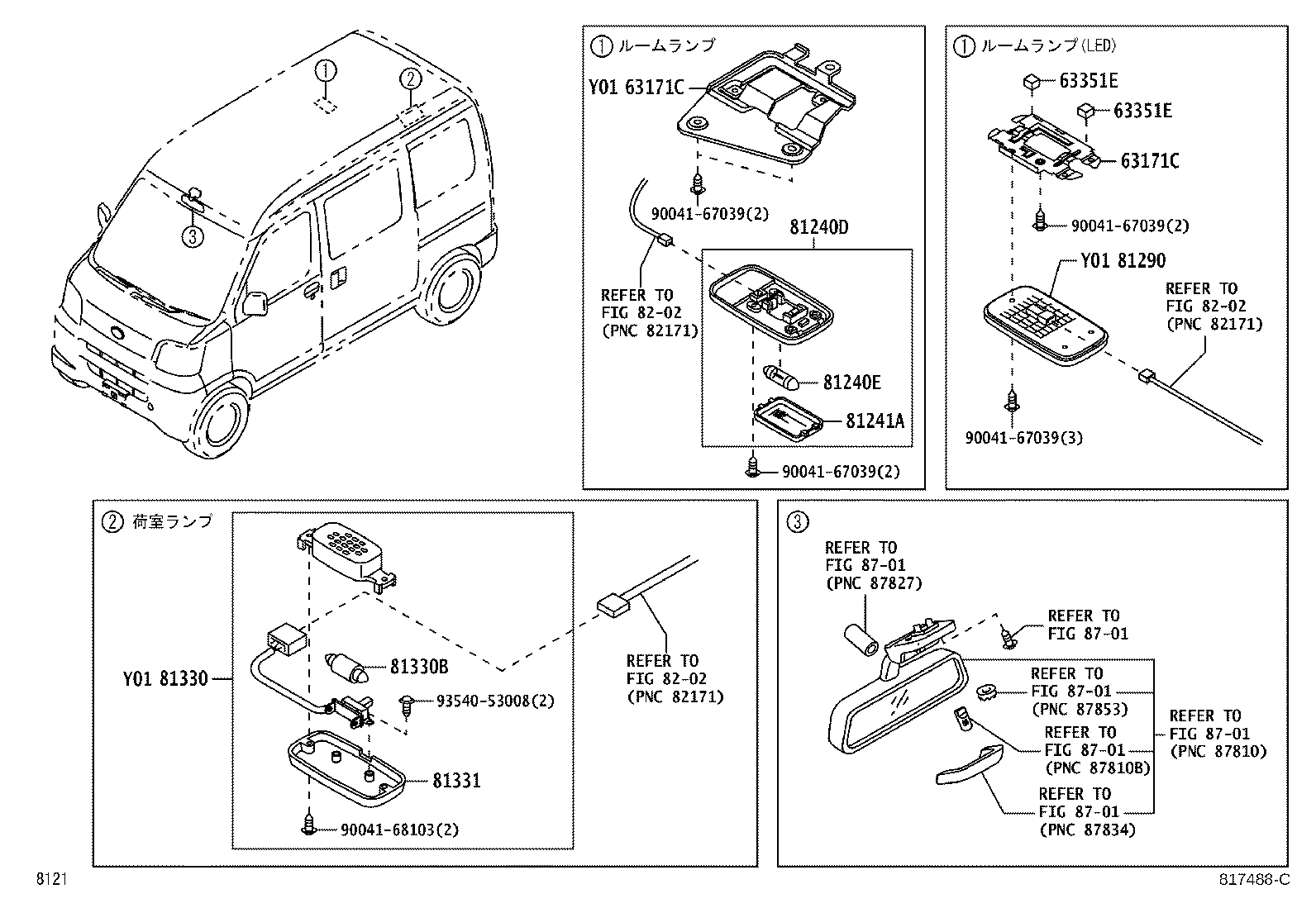

Click highlighted areas on diagram

diagram 63171C 63171C 63351E 63351E 81240D 81240E 81241A 81290 81330 81330B 81331 8202 8202 8202 8701 8701 8701 8701 8701 8701 9004167039 9004167039 9004167039 9004167039 9004168103 9354053008
Part # Description Qty Price
63171C - BRACKET, ROOM LAMP
63171-97501

S321,331..CR..PS2

 1
63171-B5010

S321,331..CR..PS2

ﾗｹﾞｰｼﾞ ﾙｰﾑ ﾗﾝﾌﾟ(LED)

 1
63171C - BRACKET, ROOM LAMP
63171-97501

S321,331..CR..PS2

 1
63171-B5010

S321,331..CR..PS2

ﾗｹﾞｰｼﾞ ﾙｰﾑ ﾗﾝﾌﾟ(LED)

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-B2050B0

S321,331..CR..PS2

LT.GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90049-51153

S321,331..CR..PS2

12V 8W

 1
81241A - LENS, ROOM LAMP, NO.2
81241-97201

S321,331..CR..PS2

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81240-87512

S321,331..CR..PS2

ﾋﾞｼﾞﾈｽﾊﾟｯｸ

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90049-51095

S321,331..CR..PS2

12V 8W T10,ﾋﾞｼﾞﾈｽﾊﾟｯｸ

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81241-87004

S321,331..CR..PS2

ﾋﾞｼﾞﾈｽﾊﾟｯｸ

 1
Common parts
90041-67039
90041-68103
93540-53008
Linked diagrams
8202
8701
