S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

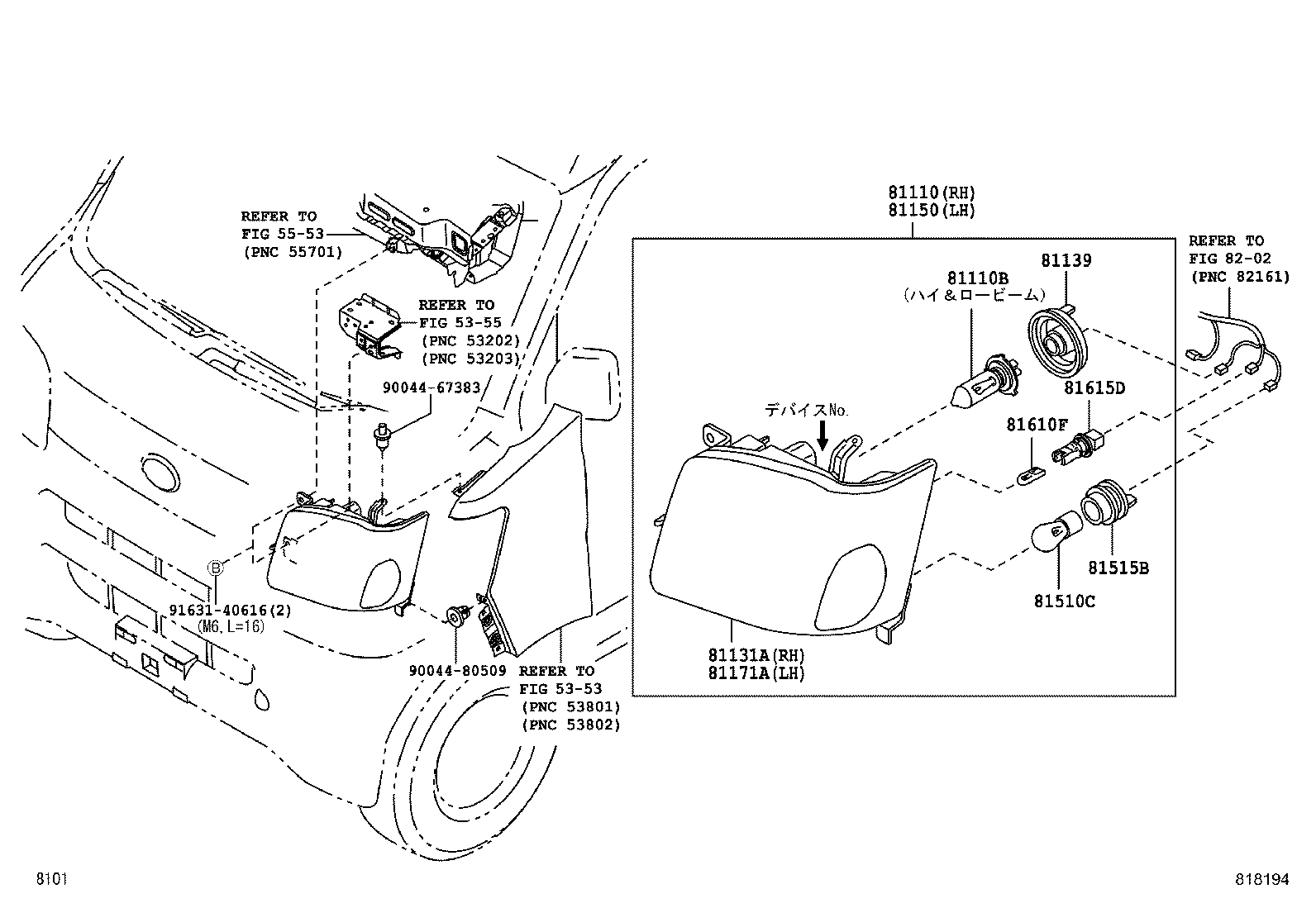

Click highlighted areas on diagram

diagram 5353 5355 5553 81110 81110B 81131A 81139 81150 81171A 81510C 81515B 81610F 81615D 8202 9004467383 9004480509 9163140616
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088

S321,331..PS2

12V 60/55W

 2
81139 - COVER, HEADLAMP SOCKET
81139-B2010

S321,331..PS2

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

S321,331..PS2

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013

S321,331..PS2

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
9004C-82001

S321,331..PS2

 2
Common parts
90044-67383
90044-80509
91631-40616
Linked diagrams
5353
5355
5553
8202
