S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

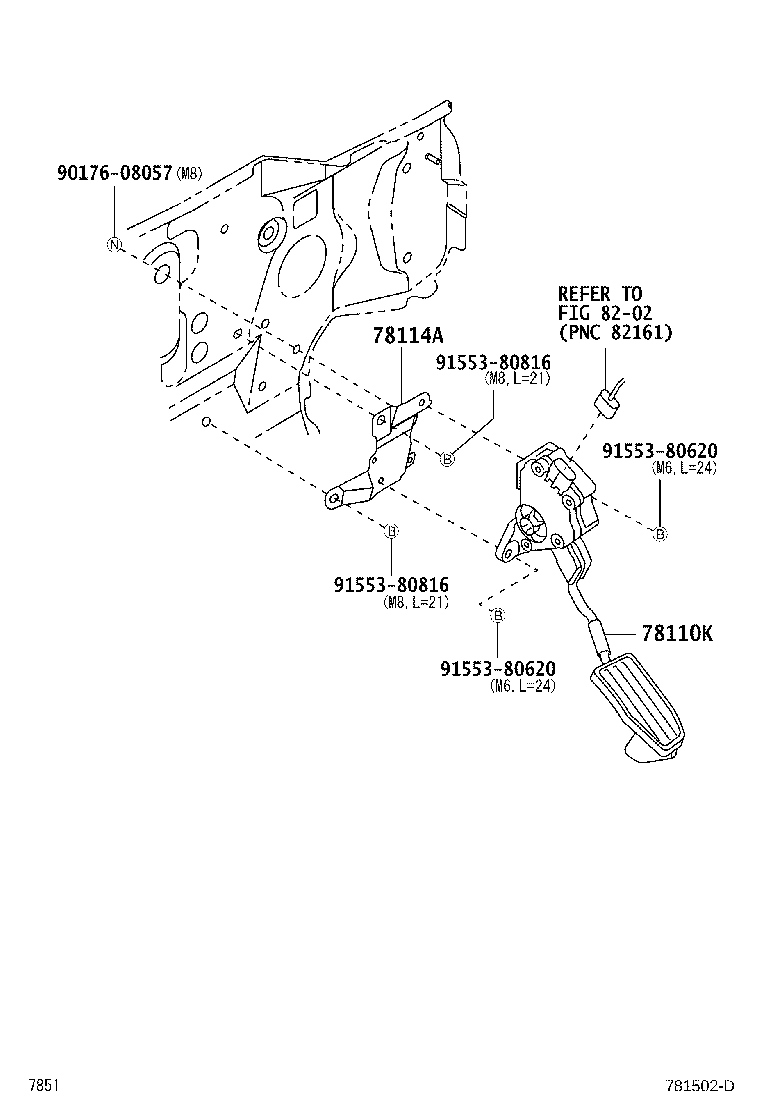

diagram 78110K 78114A 8202 9017608057 9155380620 9155380620 9155380816 9155380816
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-B5020

S321,331

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-B5020

S321,331

 1
Common parts
90176-08057
91553-80620
91553-80816
Linked diagrams
8202
