S321M-ZQGF3 (2015)
Toyota Pixis Van

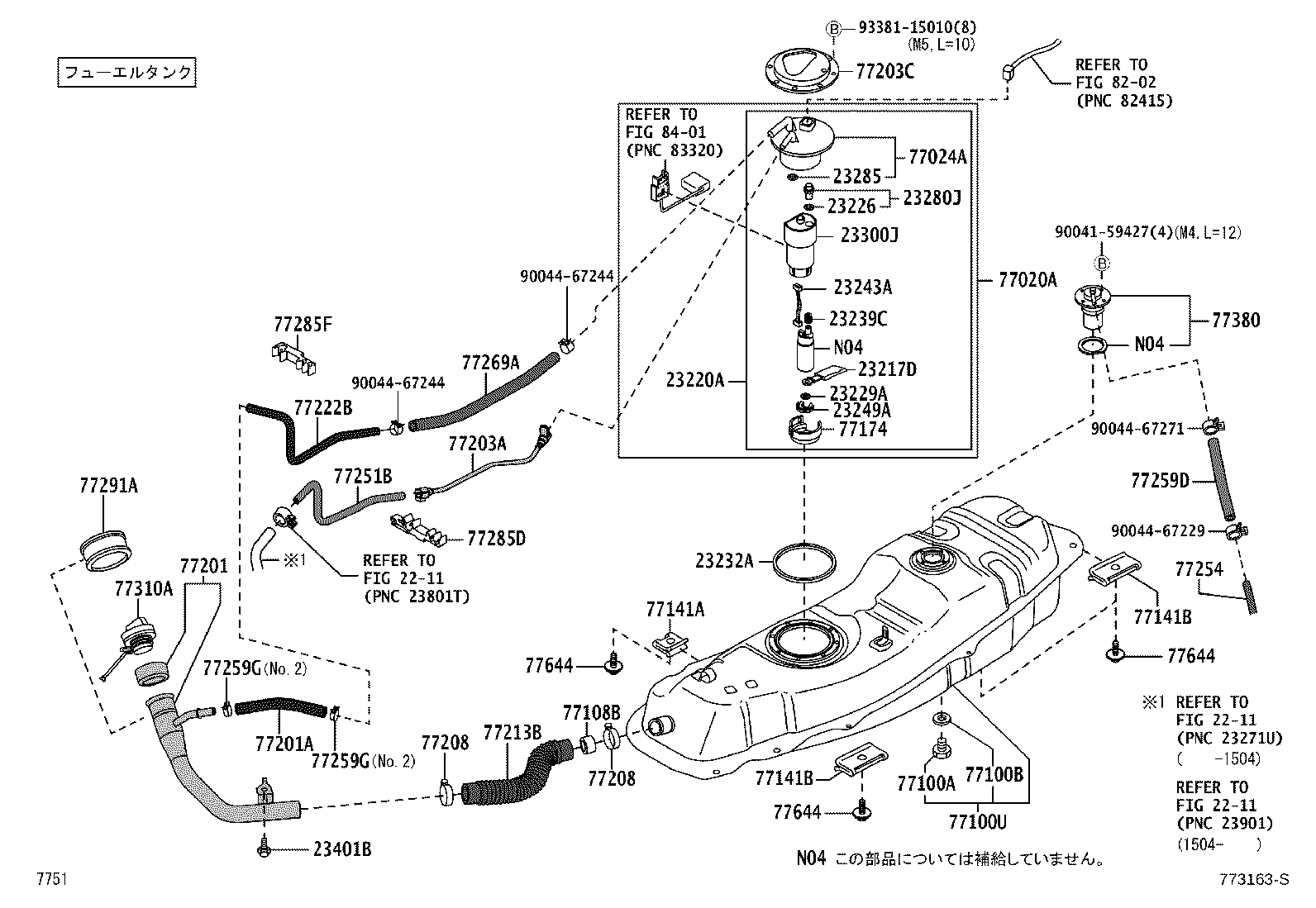

ILLUST NO. 1 OF 3(1112-1711)
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 23532-B5010 |
KF#..S321,331 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-97501 |
KF#..S321,331..PS2 |
1 | ||
| 23232A - GASKET, FUEL PUMP | ||||
| 23232-87401 |
KF#..S321,331..PS2 |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-97514 |
KF#..S321,331..PS2 |
1 | ||
| 23243A - WIRE, FUEL PUMP MOTOR | ||||
| 82415-97503 |
KF#..S321,331..PS2 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-B5040 |
KF#..S321,331 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-B5010 |
KF#..S321,331 |
1 | ||
| 23285 - RING, O | ||||
| 23532-B5020 |
KF#..S321,331 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 23401B - BOLT | ||||
| 91551-A0816 |
KF#..S321,331..PS2 ｼｰﾙﾛｯｸ剤 塗布無し |
1 | ||
| 46791-B5110 |
KF#..S321,331 ｼｰﾙﾛｯｸ剤 塗布有り |
1 | ||
| 91551-A0816 |
KF#..S321,331 ｼｰﾙﾛｯｸ剤 塗布無し |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-B5010 |
S321,331..PS2 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
S321,331..PS2 |
1 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-B5030 |
S321,331..PS2 |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B5010 |
S321,331..PS2 |
2 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B5010 |
S321,331..PS2 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-97501 |
S321,331..PS2 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-B5010 |
S321,331..PS2 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77269-B5010 |
S321,331..PS2 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-B5020 |
S321,331..PS2 |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-B5010 |
S321,331..PS2 |
1 | ||
| 77208 - CLAMP SUB-ASSY, FUEL HOSE | ||||
| 90044-60129 |
S321,331..PS2 |
2 | ||
| 77208 - CLAMP SUB-ASSY, FUEL HOSE | ||||
| 90044-60129 |
S321,331..PS2 |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-97503 |
S321,331..PS2 |
1 | ||
| 77222B - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-B5010 |
S321,331..PS2 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B5060 |
S321,331 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-97501 |
S321,331..PS2 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-97502 |
S321,331..PS2 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 90044-64689 |
S321,331..PS2 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90044-64690 |
S321,331..PS2 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-B2021 |
S321,331 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
S321,331..PS2 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-87501 |
S321,331..PS2 ﾊﾟｯｷﾝ付き |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
S321,331..PS2 M8,L=29.5 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
S321,331..PS2 M8,L=29.5 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
S321,331..PS2 M8,L=29.5 |
4 | ||
| Common parts | ||||
| 90041-59427 | ||||
| 90044-67229 | ||||
| 90044-67244 | ||||
| 90044-67271 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1504-1711)NTBO
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
S321,331..PS2 *H,L=160 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90044-64622 |
S321,331..PS2 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 96221-30705 |
S321,331..PS2 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64742 |
S321,331..PS2 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 23827-B5010 |
S321,331 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-97501 |
S321,331..PS2 |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 89470-B5050 |
S321,331..PS2 |
1 | ||
| 77741A - HOSE, FUEL, (FOR VAPOR FEED) | ||||
| 23826-B5010 |
S321,331 外径=10.4 内径=5.4 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-B5030 |
S321,331..TBO |
1 | ||
| 77754-B5030 |
S321,331..NTBO |
1 | ||
| 77754-B5040 |
S321,331..TBO |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B5030 |
S321,331 OD=14 ID=7 |
1 | ||
| Common parts | ||||
| 25860-B2020 | ||||
| 25861-B2020 | ||||
| 90044-64759 | ||||
| 90044-68372 | ||||
| 91551-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 5151 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1504-1607)TBO
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
S321,331..PS2 *H,L=160 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90044-64622 |
S321,331..PS2 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 96221-30705 |
S321,331..PS2 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64742 |
S321,331..PS2 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 23827-B5010 |
S321,331 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-97501 |
S321,331..PS2 |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 89470-B5050 |
S321,331..PS2 |
1 | ||
| 77741A - HOSE, FUEL, (FOR VAPOR FEED) | ||||
| 23826-B5010 |
S321,331 外径=10.4 内径=5.4 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-B5030 |
S321,331..TBO |
1 | ||
| 77754-B5030 |
S321,331..NTBO |
1 | ||
| 77754-B5040 |
S321,331..TBO |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B5030 |
S321,331 OD=14 ID=7 |
1 | ||
| Common parts | ||||
| 25860-B2020 | ||||
| 25861-B2020 | ||||
| 90044-64759 | ||||
| 90044-68372 | ||||
| 90048-20012 | ||||
| 91551-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 5151 | ||||
| 8202 | ||||

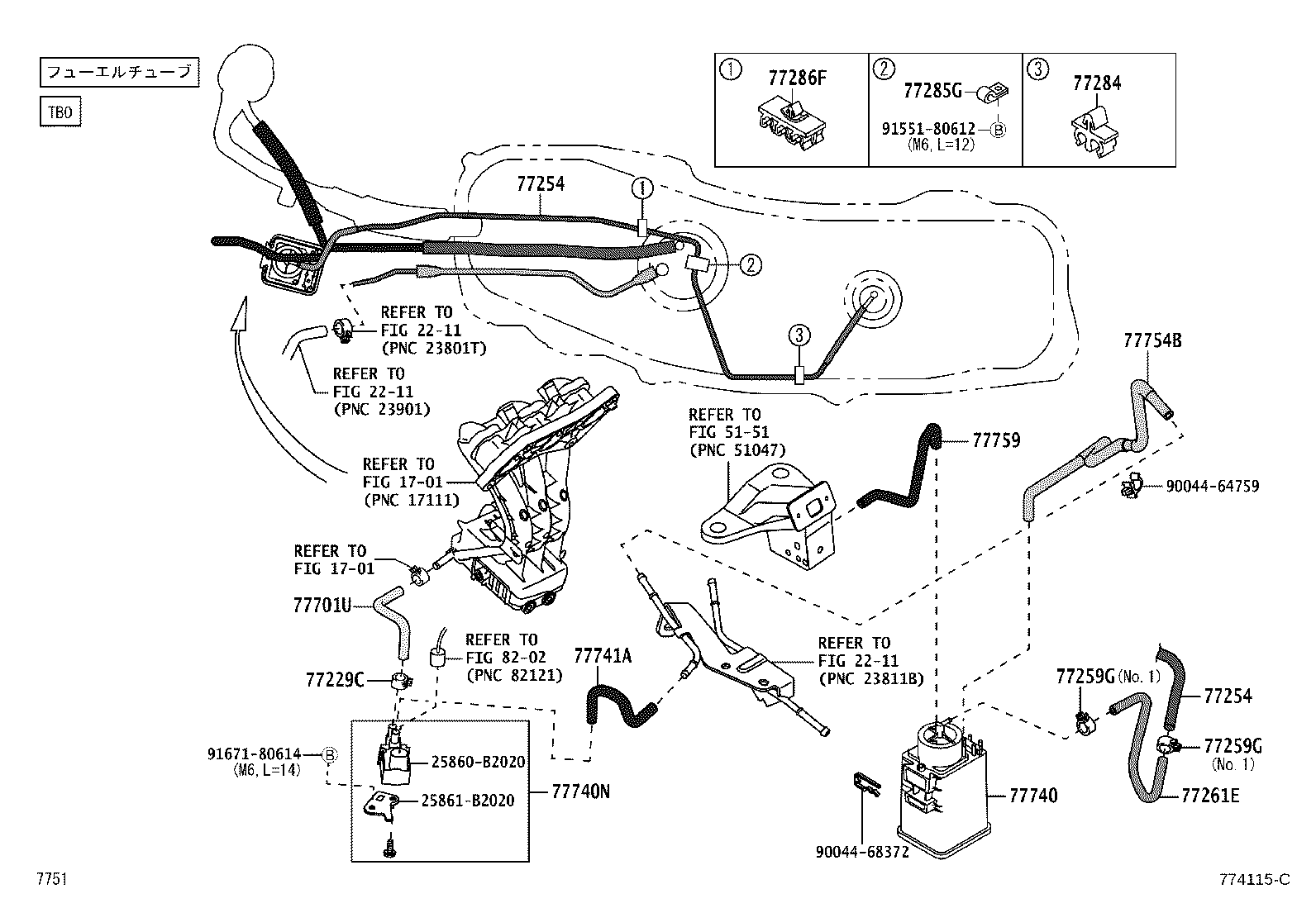

ILLUST NO. 2 OF 3(1607-1711)TBO
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229C - CLAMP, BREATHER TUBE | ||||
| 90044-62260 |
S321,331..TBO |
5 | ||
| 90044-62260 |
S321,331..TBO |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-B5010 |
S321,331..PS2 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-60327 |
S321,331 NO.1 |
2 | ||
| 96132-41000 |
S321,331..PS2 NO.1 |
2 | ||
| 90044-67244 |
S321,331..PS2 NO.2 |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
S321,331..PS2 *H,L=160 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90044-64622 |
S321,331..PS2 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 96221-30705 |
S321,331..PS2 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64742 |
S321,331..PS2 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 23827-B5010 |
S321,331 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-97501 |
S321,331..PS2 |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 89470-B5050 |
S321,331..PS2 |
1 | ||
| 77741A - HOSE, FUEL, (FOR VAPOR FEED) | ||||
| 23826-B5010 |
S321,331 外径=10.4 内径=5.4 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-B5030 |
S321,331..TBO |
1 | ||
| 77754-B5030 |
S321,331..NTBO |
1 | ||
| 77754-B5040 |
S321,331..TBO |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B5030 |
S321,331 OD=14 ID=7 |
1 | ||
| Common parts | ||||
| 25860-B2020 | ||||
| 25861-B2020 | ||||
| 90044-64759 | ||||
| 90044-68372 | ||||
| 91551-80612 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 5151 | ||||
| 8202 | ||||
