S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

Click highlighted areas on diagram

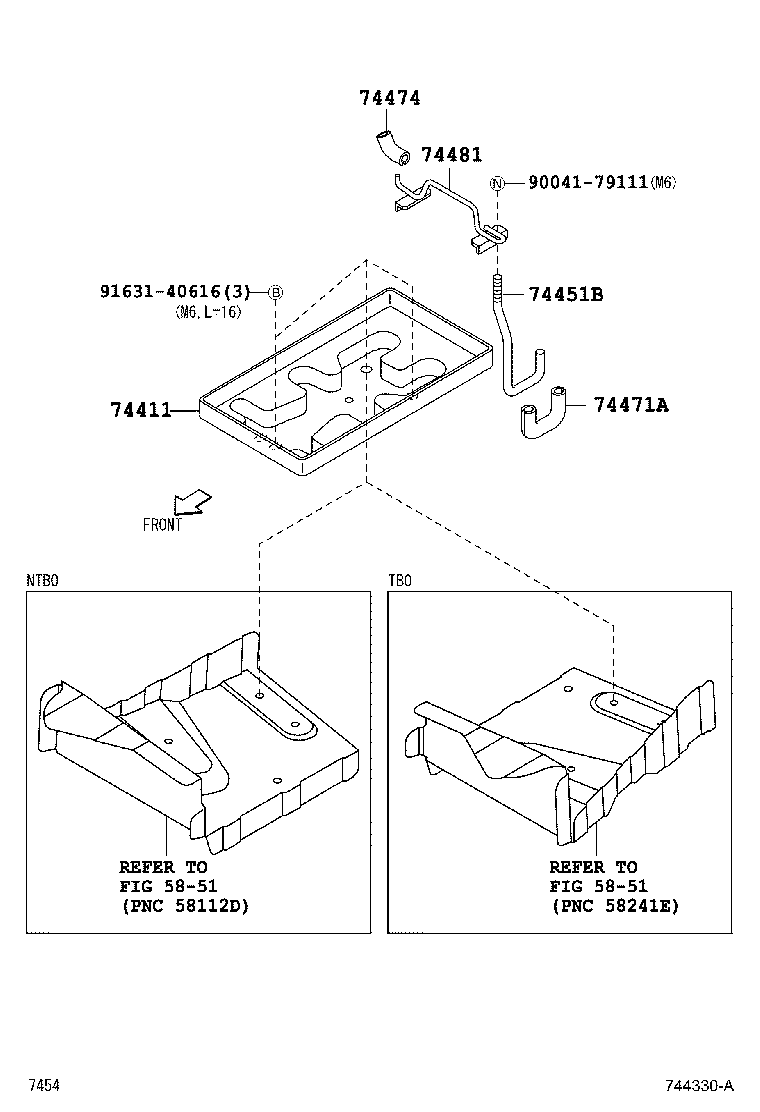

diagram 5851 5851 74411 74451B 74471A 74474 74481 9004179111 9163140616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-B5010

S321,331..PS2

 1
74451B - BOLT, BATTERY CLAMP
74451-B5010

S321,331..PS2

 1
74471A - PAD, BATTERY CLAMP
74489-97501

S321,331..PS2

 1
74474 - PAD, BATTERY
74423-97501

S321,331..PS2

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-97501

S321,331..PS2

 1
Common parts
90041-79111
91631-40616
Linked diagrams
5851
