S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)CR

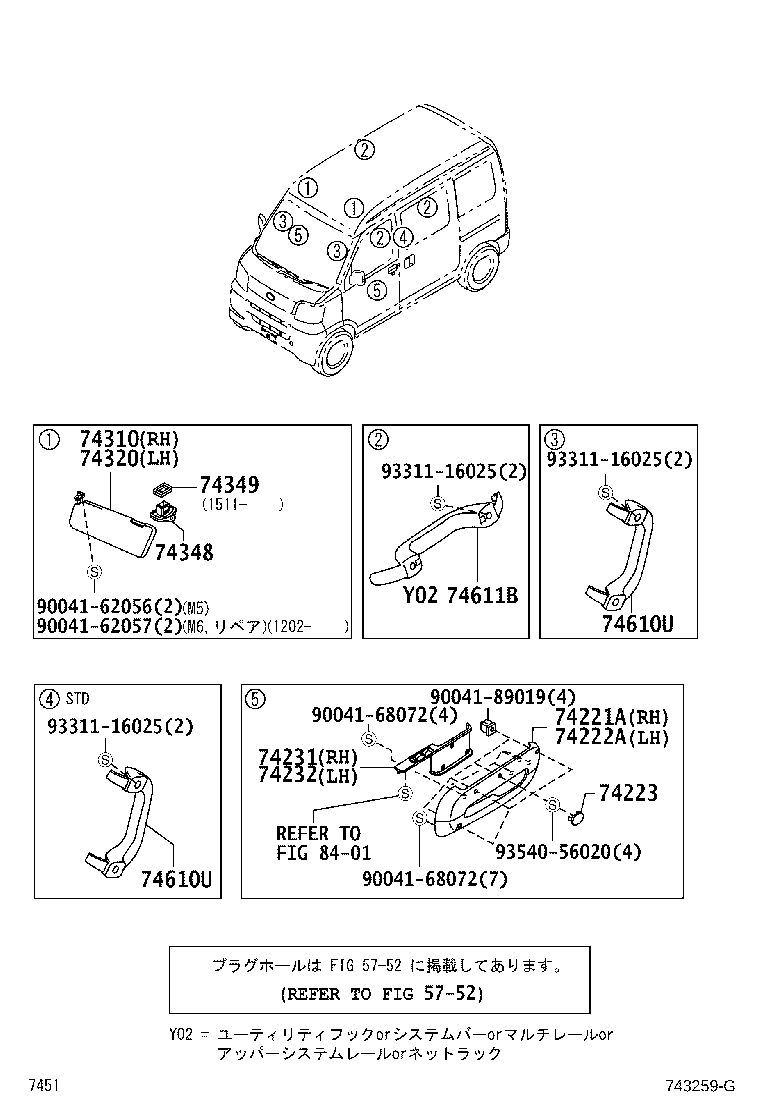

Click highlighted areas on diagram

diagram 5752 74221A 74222A 74223 74231 74232 74310 74320 74348 74349 74610U 74610U 74611B 8401 9004162056 9004162057 9004168072 9004168072 9004189019 9331116025 9331116025 9331116025 9354056020
Part # Description Qty Price
74221A - COVER, FRONT DOOR ARMREST, RH
74221-B5010B0

S321,331..(CR,DLX)..PS2

GRAY,TRIM1#

 1
74222A - COVER, FRONT DOOR ARMREST, LH
74222-B5010B0

S321,331..(CR,DLX)..PS2

GRAY,TRIM1#

 1
74223 - CAP, DOOR ARMREST, RH
74223-B5010B0

S321,331..(CR,DLX)..PS2

GRAY,TRIM1#

 8
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B5010B0

S321,331..CR..PS2

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1#

 1
74231-B5020B0

S321,331..CR..PS2

GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B5010B0

S321,331..(CR,DLX)..PS2

GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-B5045B1

S321,331..(CR,DLX)..PS2

LT.GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
74310-B5180B0

S321,331..CR,DLX

#−ﾋﾞｭｰﾃｨﾊﾟｯｸ,LT.GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
74320 - VISOR ASSY, LH
74320-B5130B0

S321,331..CR,DLX

LT.GRAY,TRIM1#

 1
74320-B5050B1

S321,331..(CR,DLX)..PS2

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-97401B2

S321,331..(CR,DLX)..PS2

LT.GRAY,TRIM1#

 2
74610U - GRIP ASSY, ASSIST
74610-97501B1

S321,331..CR..PS2

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,LT.GRAY,TRIM1#

 2
74610-97501B1

S321,331..CR..PS2

LT.GRAY,TRIM1#

 3
74610U - GRIP ASSY, ASSIST
74610-97501B1

S321,331..CR..PS2

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,LT.GRAY,TRIM1#

 2
74610-97501B1

S321,331..CR..PS2

LT.GRAY,TRIM1#

 3
74611B - GRIP, ASSIST
74611-B5030B2

S321,331..CR..PS2

LT.GRAY,TRIM1#

 3
Common parts
90041-62056
90041-62057
90041-68072
90041-89019
93311-16025
93540-56020
Linked diagrams
5752
8401
