S321M-ZQGF3 (2015)
Toyota Pixis Van
(1112-1511)STD ; (1112-1511)ULEV..PS1

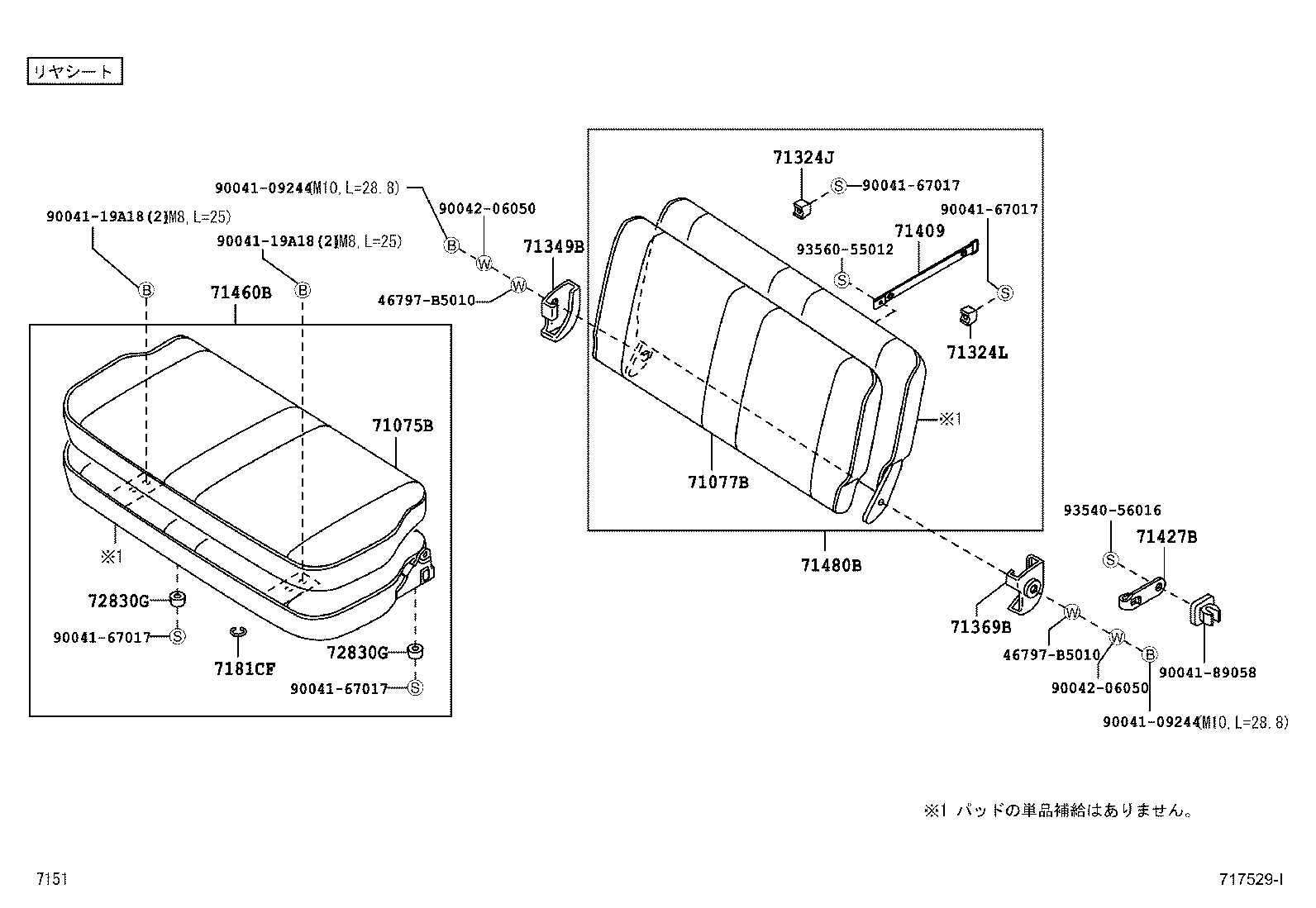

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-B5120J1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-B5110J1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71077-B5111J1 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S321,331..CR..PS2 |
2 | ||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-B5010 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-B5010 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-B5020 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71427B - HOOK, REAR SEAT BACK STOP | ||||
| 71679-87506 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-B5130B1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71460-B5230B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-B5140B1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71480-B5230B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S321,331..STD..PS2 |
18 | ||
| 72830G - CUSHION | ||||
| 47131-B5041 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 47131-B5040 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 72830G - CUSHION | ||||
| 47131-B5041 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 47131-B5040 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| Common parts | ||||
| 46797-B5010 | ||||
| 90041-09244 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-89058 | ||||
| 90042-06050 | ||||
| 93540-56016 | ||||
| 93560-55012 | ||||
(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-B5120J1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-B5110J1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71077-B5111J1 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,BLUE,TRIM1# |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S321,331..CR..PS2 |
2 | ||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-B5130B1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71460-B5230B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-B5140B1 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 71480-B5230B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1# |
1 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S321,331..STD..PS2 |
18 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-97501 |
S321,331..CR |
1 | ||
| 72693-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-97501 |
S321,331..CR |
1 | ||
| 72693-B5020 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72476 - SCREW, HORIZONTAL JACK, INNER | ||||
| 72189-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72636-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-B5010B0 |
S321,331..CR..PS2 GRAY,TRIM1# |
1 | ||
| 72665-B5051B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-B5071B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 72666-B5010B0 |
S321,331..CR..PS2 GRAY,TRIM1# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-B5020B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1#,右側 |
1 | ||
| 72694-B5030B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1#,左側 |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-B5020B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1#,右側 |
1 | ||
| 72694-B5030B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1#,左側 |
1 | ||
| 72702B - WIRE SUB-ASSY, REAR SEAT RECLINING CONTROL | ||||
| 72702-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72830G - CUSHION | ||||
| 47131-B5041 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 47131-B5040 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 72830G - CUSHION | ||||
| 47131-B5041 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| 47131-B5040 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
2 | ||
| Common parts | ||||
| 21814-B5020 | ||||
| 46797-B5010 | ||||
| 84139-B5080 | ||||
| 90041-09244 | ||||
| 90041-19A18 | ||||
| 90041-67013 | ||||
| 90041-67017 | ||||
| 90042-06059 | ||||
(1112-1711)CR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-B5141J1 |
S321,331..CR..PS2 BLUE,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-B5130J1 |
S321,331..CR..PS2 BLUE,TRIM1# |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-B5010 |
S321,331..CR..PS2 |
1 | ||
| 71324K - CUSHION, REAR SEAT | ||||
| 90045-40161 |
S321,331..CR..PS2 |
2 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S321,331..CR..PS2 |
2 | ||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-B5151B0 |
S321,331..CR..PS2 -,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-B5160B1 |
S321,331..CR..PS2 -,TRIM1# |
1 | ||
| 71480-B5160B3 |
S321,331..CR -,TRIM1# |
1 | ||
| 71819 - CUSHION (FOR REAR SEAT CUSHION) | ||||
| 47131-B5030 |
S321,331..CR..PS2 |
4 | ||
| 7181CD - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
S321,331..CR..PS2 |
3 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S321,331..STD..PS2 |
18 | ||
| 71831E - COVER, REAR SEAT HINGE, RH | ||||
| 71831-87201C0 |
S321,331..CR..PS2 BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202B1 |
S321,331..CR..PS2 DK.GRAY,TRIM1#,ﾛｯｸｱﾘ |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202B1 |
S321,331..CR..PS2 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71940B - HEADREST ASSY, REAR SEAT, RH | ||||
| 71940-B5091J0 |
S321,331..CR BLUE,TRIM1# |
1 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-97501 |
S321,331..CR |
1 | ||
| 72693-B5010 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-B5010 |
S321,331..CR..PS2 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-B5010B0 |
S321,331..CR..PS2 GRAY,TRIM1# |
1 | ||
| 72665-B5051B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 72687A - HOLDER, REAR SEAT BACK LOCK | ||||
| 72687-87502 |
S321,331..CR..PS2 |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-B5010 |
S321,331..CR |
2 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-87501C0 |
S321,331..CR..PS2 BLACK,TRIM1# |
1 | ||
| 72748 - WIRE, REAR SEAT RECLINING CONTROL | ||||
| 72748-B5010 |
S321,331..CR |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-B5030 |
S321,331..CR 左側 |
1 | ||
| 78791-B5020 |
S321,331..CR 右側 |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-B5010B0 |
S321,331..CR DK.GRAY,TRIM1# |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.2 |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 44699-B5010 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 91551-80825 | ||||
| 93249-15008 | ||||
| 96160-00600 | ||||
| 96160-01000 | ||||

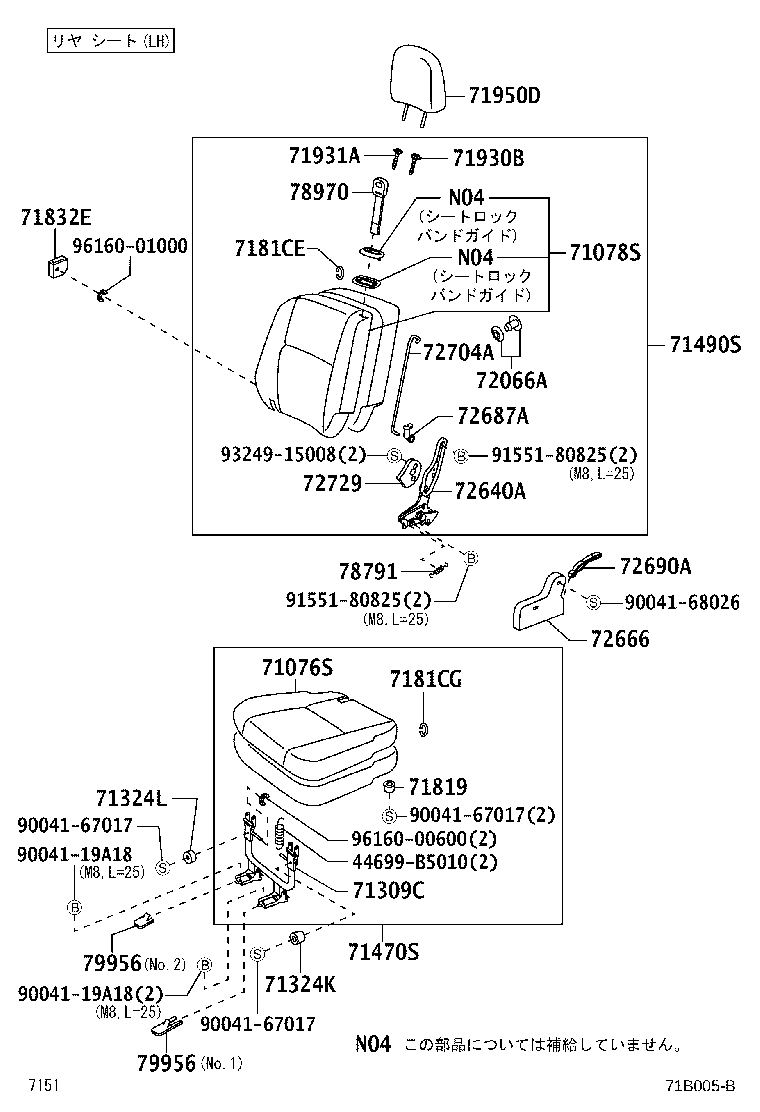

(1112-1711)CR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-B5071J1 |
S321,331..CR..PS2 BLUE,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-B5080J1 |
S321,331..CR..PS2 BLUE,TRIM1# |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-B5010 |
S321,331..CR..PS2 |
1 | ||
| 71324K - CUSHION, REAR SEAT | ||||
| 90045-40161 |
S321,331..CR..PS2 |
2 | ||
| 71324L - CUSHION, REAR SEAT, NO.5 | ||||
| 90045-40124 |
S321,331..CR..PS2 |
2 | ||
| 90045-41268 |
S321,331..CR..PS2 ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-B5071B0 |
S321,331..CR..PS2 -,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-B5100B1 |
S321,331..CR..PS2 -,TRIM1# |
1 | ||
| 71490-B5100B3 |
S321,331..CR -,TRIM1# |
1 | ||
| 71819 - CUSHION (FOR REAR SEAT CUSHION) | ||||
| 47131-B5030 |
S321,331..CR..PS2 |
4 | ||
| 7181CE - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
S321,331..CR..PS2 |
3 | ||
| 7181CG - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
S321,331..CR..PS2 |
20 | ||
| 71832E - COVER, REAR SEAT HINGE, LH | ||||
| 71832-87201C0 |
S321,331..CR..PS2 BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202B1 |
S321,331..CR..PS2 DK.GRAY,TRIM1#,ﾛｯｸｱﾘ |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202B1 |
S321,331..CR..PS2 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71950D - HEADREST ASSY, REAR SEAT, LH | ||||
| 71940-B5091J0 |
S321,331..CR BLUE,TRIM1# |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-97501 |
S321,331..CR |
1 | ||
| 72693-B5020 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-B5010 |
S321,331..CR..PS2 |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-B5071B0 |
S321,331..CR ﾋﾞｼﾞﾈｽﾊﾟｯｸ,GRAY,TRIM1# |
1 | ||
| 72666-B5010B0 |
S321,331..CR..PS2 GRAY,TRIM1# |
1 | ||
| 72687A - HOLDER, REAR SEAT BACK LOCK | ||||
| 72687-87502 |
S321,331..CR..PS2 |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-B5010 |
S321,331..CR |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72748-B5010 |
S321,331..CR |
1 | ||
| 72729 - PROTECTOR, REAR SEAT RECLINING, INNER LH | ||||
| 72729-87501C0 |
S321,331..CR..PS2 BLACK,TRIM1# |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-B5030 |
S321,331..CR 左側 |
1 | ||
| 78791-B5020 |
S321,331..CR 右側 |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-B5010B0 |
S321,331..CR DK.GRAY,TRIM1# |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.2 |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-B5010C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.1 |
2 | ||
| 79956-B5020C0 |
S321,331..CR..PS2 BLACK,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 44699-B5010 | ||||
| 90041-19A18 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 91551-80825 | ||||
| 93249-15008 | ||||
| 96160-00600 | ||||
| 96160-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
