S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

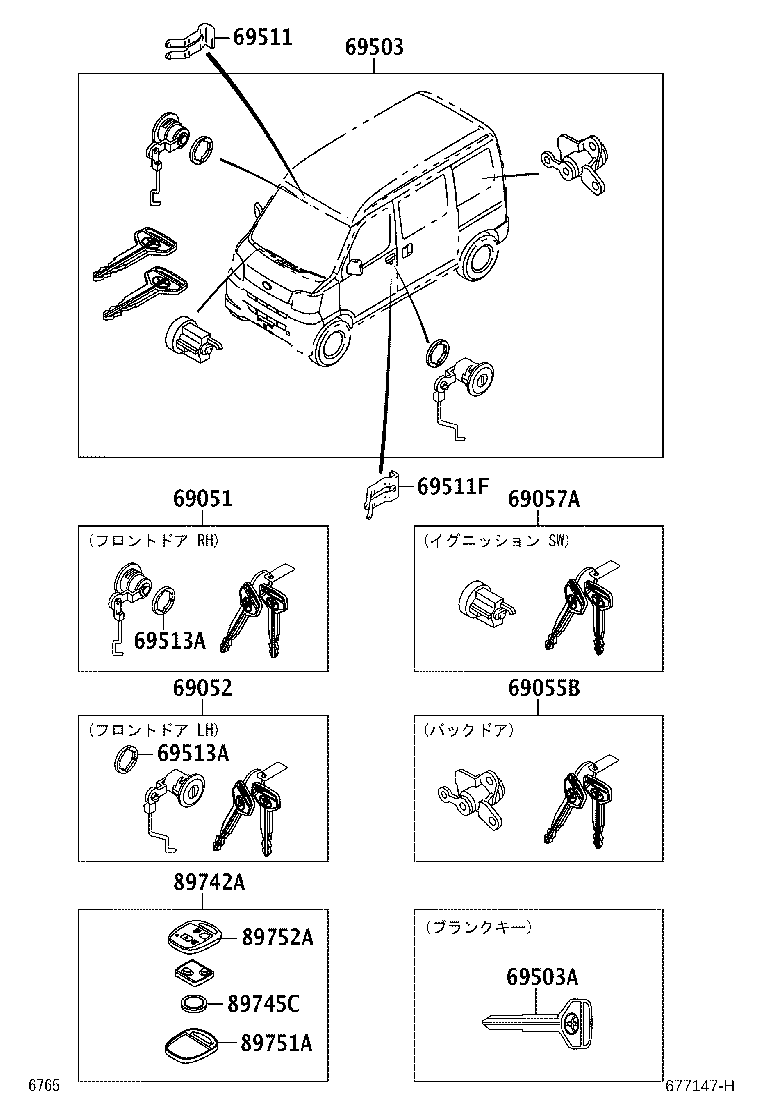

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69503 69503A 69511 69511F 69513A 69513A 89742A 89745C 89751A 89752A
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B5050

S321,331..PS2

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-B5050

S321,331..PS2

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-B5060

S321,331..PS2

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-B5050

S321,331..PS2

 1
69503 - CYLINDER SET, LOCK
69005-B5200

S321,331..PS2

 1
69503A - KEY, BLANK
69515-B5120

S321,331..PS2

ﾌﾞﾗﾝｸｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69682-97202

S321,331

ﾌﾛﾝﾄ右側

 1
69511F - RETAINER, FRONT DOOR LOCK CYLINDER
69682-97202

S321,331

ﾌﾛﾝﾄ左側

 1
69513A - PAD, DOOR CYLINDER
69513-87201

S321,331..PS2

 2
69513A - PAD, DOOR CYLINDER
69513-87201

S321,331..PS2

 2
89742A - TRANSMITTER, DOOR CONTROL
89742-B5091

S321,331..CR,DLX

 1
89745C - BATTERY, TRANSMITTER
89745-B1020

S321,331..(CR,DLX)..PS2

 1
89751A - COVER, TRANSMITTER HOUSING
89751-B5030

S321,331..(CR,DLX)..PS2

 1
89752A - CASE, TRANSMITTER HOUSING
89752-B5030

S321,331..(CR,DLX)..PS2

 1
