S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)HRF

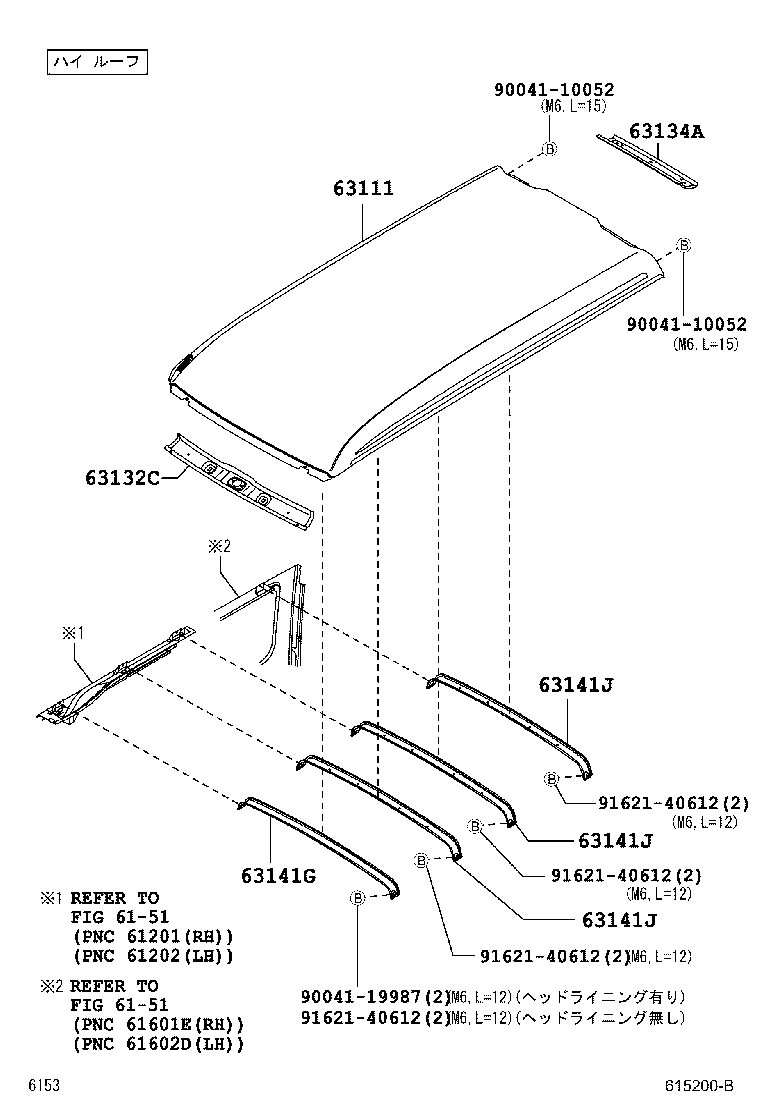

Click highlighted areas on diagram

diagram 6151 6151 63111 63132C 63134A 63141G 63141J 63141J 63141J 9004110052 9004110052 9004119987 9162140612 9162140612 9162140612 9162140612
Part # Description Qty Price
63111 - PANEL, ROOF
63111-B5011

S321,331..HRF

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-B5020

S321,331..CR,DLX

ﾊﾞｲｻﾞｰ取付穴 有り

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63134-B5010

S321,331..HRF..PS2

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-B5010B0

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1#

 1
63141-B5030

S321,331..CR..PS2

 1
63141J - REINFORCEMENT, ROOF PANEL
63141-B5020B0

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1#

 3
63141-B5040

S321,331..CR

 3
63141J - REINFORCEMENT, ROOF PANEL
63141-B5020B0

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1#

 3
63141-B5040

S321,331..CR

 3
63141J - REINFORCEMENT, ROOF PANEL
63141-B5020B0

S321,331..CR

ﾋﾞｼﾞﾈｽﾊﾟｯｸ,-,TRIM1#

 3
63141-B5040

S321,331..CR

 3
Common parts
90041-10052
90041-19987
91621-40612
Linked diagrams
6151
