S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

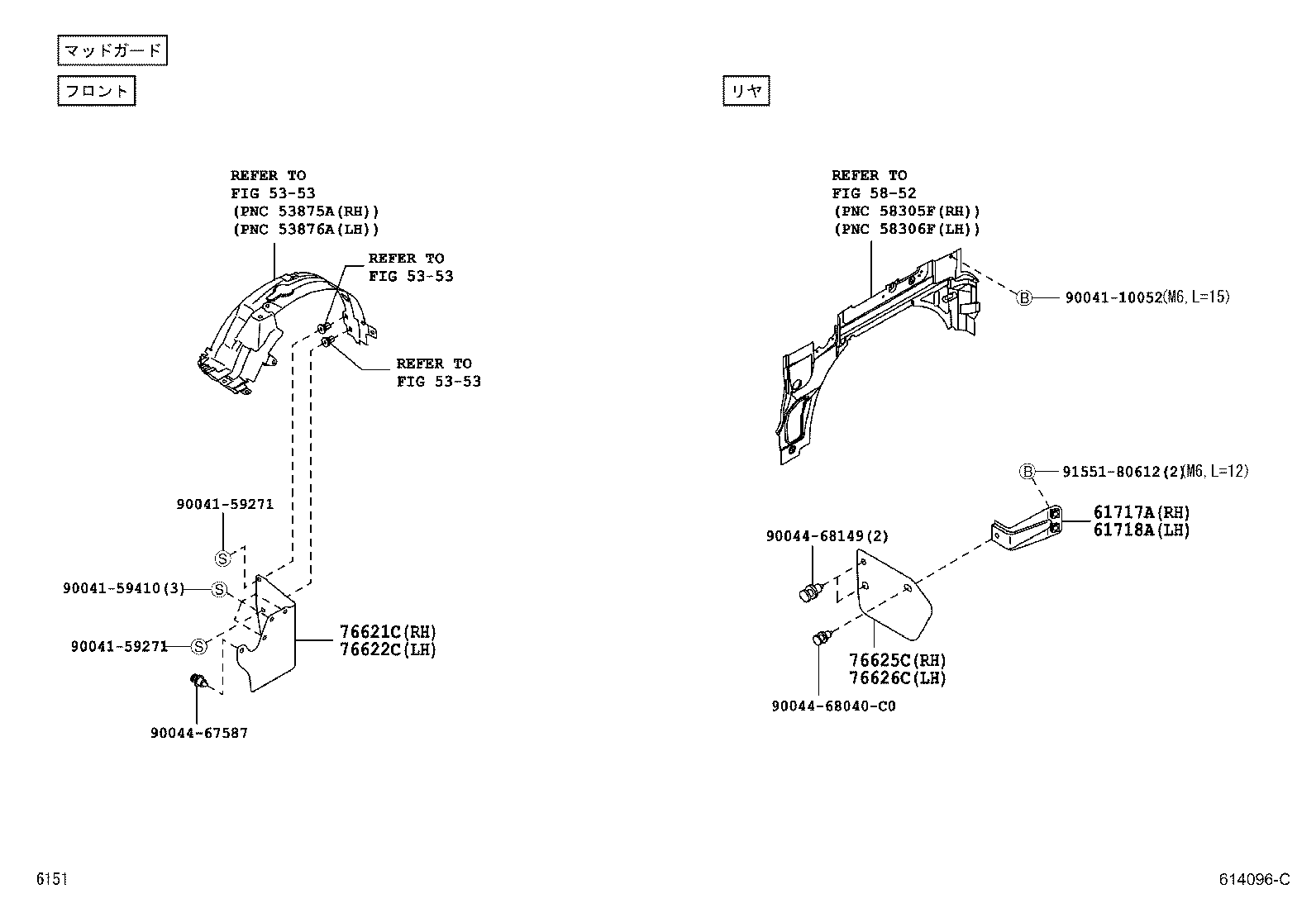

ILLUST NO. 3 OF 4(1112-1711)

Click highlighted areas on diagram

ﾏｯﾄﾞｶﾞｰﾄﾞ

diagram 5353 5353 5353 5852 61717A 61718A 76621C 76622C 76625C 76626C 9004110052 9004159271 9004159271 9004159410 9004467587 9004468040C0 9004468149 9155180612
Part # Description Qty Price
61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH
57615-B5020

S321,331..(CR,DLX)..PS2

 1
61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH
57616-B5020

S321,331..(CR,DLX)..PS2

 1
76621C - MUDGUAD, FRONT FENDER, RH
76621-B5010

S321,331..PS2

 1
76622C - MUDGUARD, FRONT FENDER, LH
76621-B5010

S321,331..PS2

 1
76625C - MUDGUAD, QUARTER PANEL, REAR RH
76628-B5010

S321,331..(CR,DLX)..PS2

ﾌﾟﾚｰﾄ ﾀｲﾌﾟ

 1
76626C - MUDGUAD, QUARTER PANEL, REAR LH
76628-B5010

S321,331..(CR,DLX)..PS2

ﾌﾟﾚｰﾄ ﾀｲﾌﾟ

 1
Common parts
90041-10052
90041-59271
90041-59410
90044-67587
90044-68040C0
90044-68149
91551-80612
Linked diagrams
5353
5852
