S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

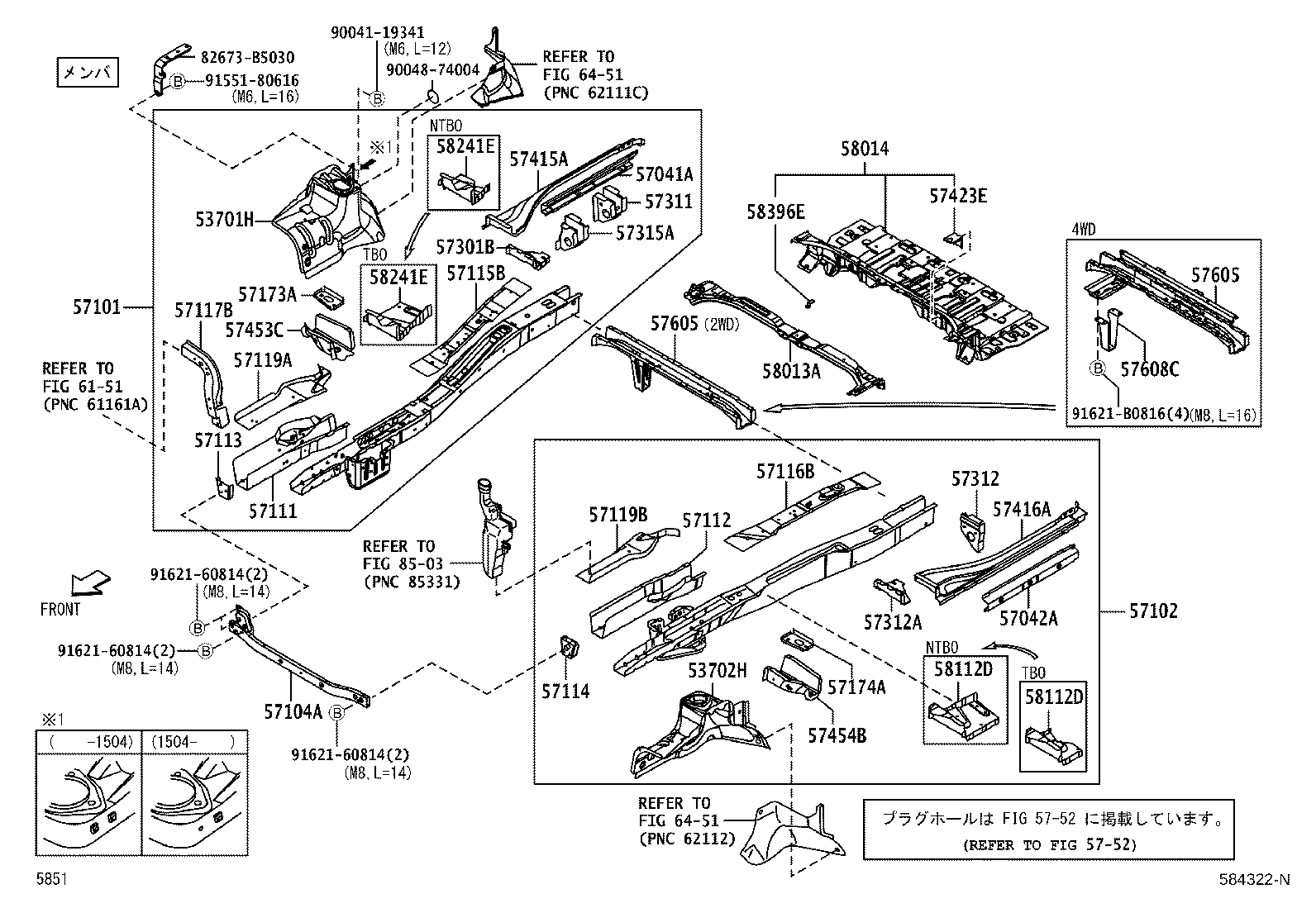

ILLUST NO. 2 OF 2(1112-1711)

Click highlighted areas on diagram

ﾒﾝﾊﾞ

diagram 53701H 53702H 57041A 57042A 57101 57102 57104A 57111 57112 57113 57114 57115B 57116B 57117B 57119A 57119B 57119B 57173A 57174A 57301B 57311 57312 57312A 57315A 57415A 57416A 57423E 57453C 57454B 5752 57605 57605 57608C 58013A 58014 58112D 58112D 58241E 58241E 58396E 6151 6451 6451 82673B5030 8503 9004119341 9004874004 9155180616 9162160814 9162160814 9162160814 91621B0816
Part # Description Qty Price
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-B5022

S321,331..CR

 1
53702H - APRON SUB-ASSY, FENDER, LH
53702-B5021

S321,331..CR

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-B5031

S321,331..TBO

 1
57101-B5151

S321,331..CR..NTBO

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-B5080

S321,331..NTBO..PS2

 1
57102-B5020

S321,331..TBO..PS2

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-B5011

S321,331

 1
57104-B5010

S321,331..PS2

 1
57111 - MEMBER, FRONT SIDE, RH
57111-B5010

S321,331

 1
57112 - MEMBER, FRONT SIDE, LH
57112-B5010

S321,331

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-B5010

S321,331..PS2

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57202-B5010

S321,331..PS2

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57115-B5010

S321,331..NTBO..PS2

 1
57105-B5010

S321,331..TBO..PS2

 1
57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH
57116-B5020

S321,331..TBO..PS2

 1
57106-B5010

S321,331..NTBO..PS2

 1
57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH
52021-B5011

S321,331..PS2

 1
57119A - PLATE, FRONT SIDE MEMBER, FRONT RH
57119-B5010

S321,331..PS2

 1
57119B - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-B5010

S321,331..PS2

 1
57119B - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-B5010

S321,331..PS2

 1
57301B - OUTRIGGER SUB-ASSY, NO.1 RH
57331-B5010

S321,331..PS2

 1
57312A - OUTRIGER, FRONT, NO.1 LH
57332-B5010

S321,331..PS2

 1
57423E - CLAMP, FRONT FLOOR, NO.2
57423-B5010

S321,331..NTBO

 1
57423-97501

S321,331..TBO..PS2

 1
57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH
57453-B5010

S321,331..PS2

 1
57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH
57454-B5010

S321,331..PS2

 1
58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58013-B5040

S321,331..PS2

 1
58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58014-B5200

S321,331..TBO

 1
58014-B5170

S321,331..TBO

ﾋﾞｼﾞﾈｽﾊﾟｯｸ

 1
58014-B5220

S321,331..CR..NTBO

 1
58014-B5230

S321,331..CR..NTBO

ﾋﾞｼﾞﾈｽﾊﾟｯｸ

 1
Common parts
82673-B5030
90041-19341
90048-74004
91551-80616
91621-60814
91621-B0816
Linked diagrams
5752
6151
6451
8503

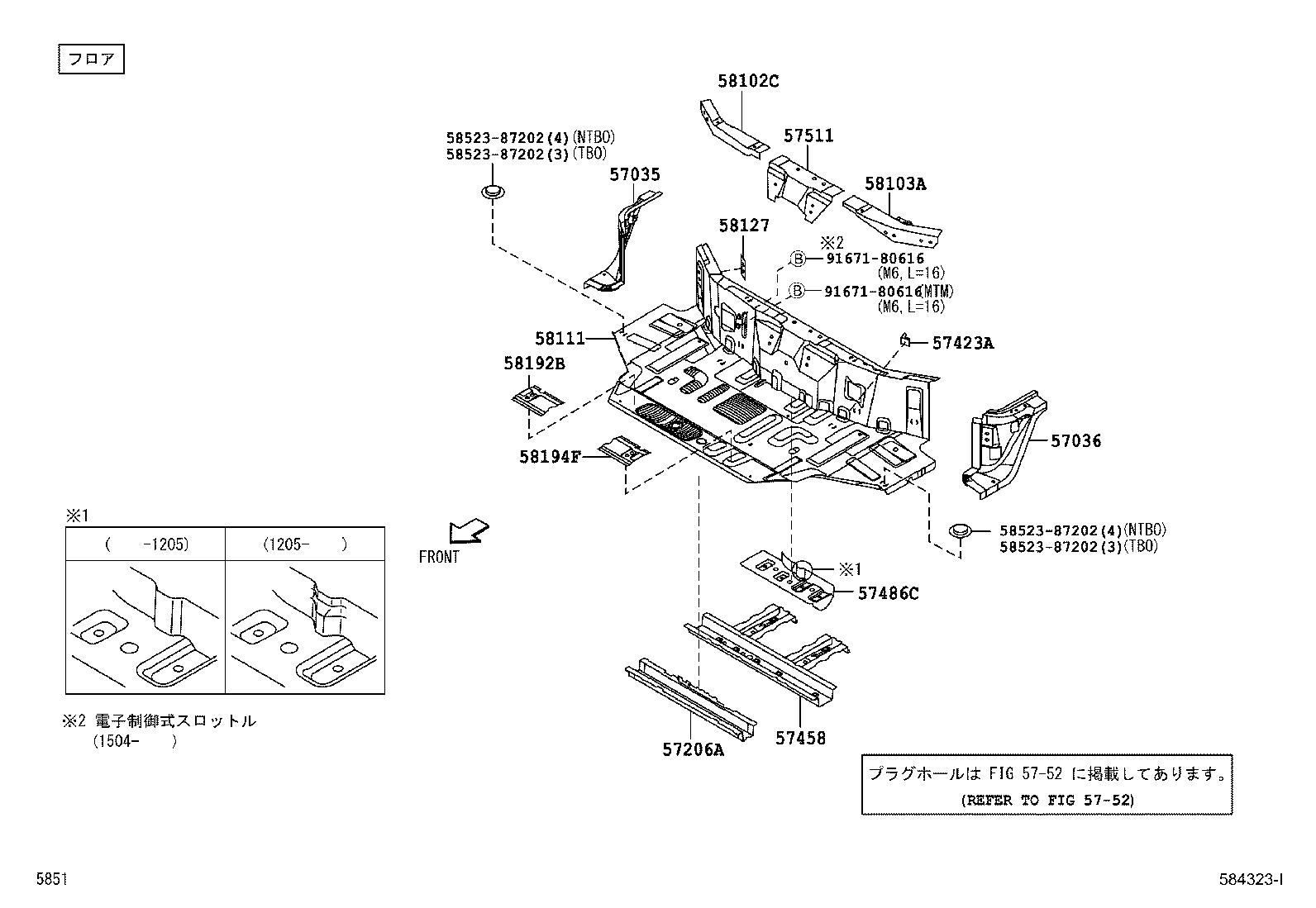

ILLUST NO. 1 OF 2(1112-1711)

Click highlighted areas on diagram

ﾌﾛｱ

diagram 57035 57036 57206A 57423A 57458 57486C 57511 5752 58102C 58103A 58111 58127 58192B 58194F 5852387202 5852387202 5852387202 5852387202 9167180616 9167180616
Part # Description Qty Price
57423A - CLAMP, FRONT FLOOR
57423-97501

S321,331..PS2

 2
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57408-B5012

S321

 1
57511 - REINFORCEMENT, FRONT FLOOR, CENTER
57509-B5010

S321,331..PS2

 1
58102C - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58102-B5011

S321,331..PS2

 1
58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58103-B5020

S321,331..TBO..PS2

 1
58103-B5010

S321,331..NTBO..PS2

 1
58127 - PATCH, FRONT FLOOR PANEL
58127-B5010

S321,331..PS2

 1
58192B - PLATE, FRONT FLOOR, REAR
58192-B5010

S321,331..PS2

 1
58194F - PLATE, FRONT FLOOR, REAR NO.2
58192-B5040

S321,331..PS2

 1
Common parts
58523-87202
91671-80616
Linked diagrams
5752
