S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1112-1711)

Click highlighted areas on diagram

ﾌｰﾄﾞ

diagram 53301 53341C 76183
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-B5022

S321,331

ﾌｰﾄﾞｶﾞｰﾆｯｼｭ取付け穴無し

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-67551

S321,331

反転機構付き ｳｨﾝﾄﾞｼｰﾙﾄﾞﾜｲﾊﾟｰ

 1
76183 - PROTECTOR, HOOD BULGE, NO.1
76183-B5010

S321,331

反転機構付き ｳｨﾝﾄﾞｼｰﾙﾄﾞﾜｲﾊﾟｰ

 1

ILLUST NO. 2 OF 3(1112-1711)

Click highlighted areas on diagram

ﾌｪﾝﾀﾞ ﾗｲﾅ

diagram 53875A 53875C 53875D 53875K 53876A 53876C 6151 6151
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-B5040

S321,331

 1
53875C - CLIP, FRONT FENDER LINER
90044-68320

S321,331

 8
53875D - CLIP, FRONT FENDER LINER, NO.2
90044-68320

S321,331

 7
53875K - GROMMET, SCREW
90041-89021

S321,331

 2
53876A - LINER, FRONT FENDER, LH
53876-B5040

S321,331

 1
53876C - GROMMET, SCREW
90041-89021

S321,331

 2
Linked diagrams
6151

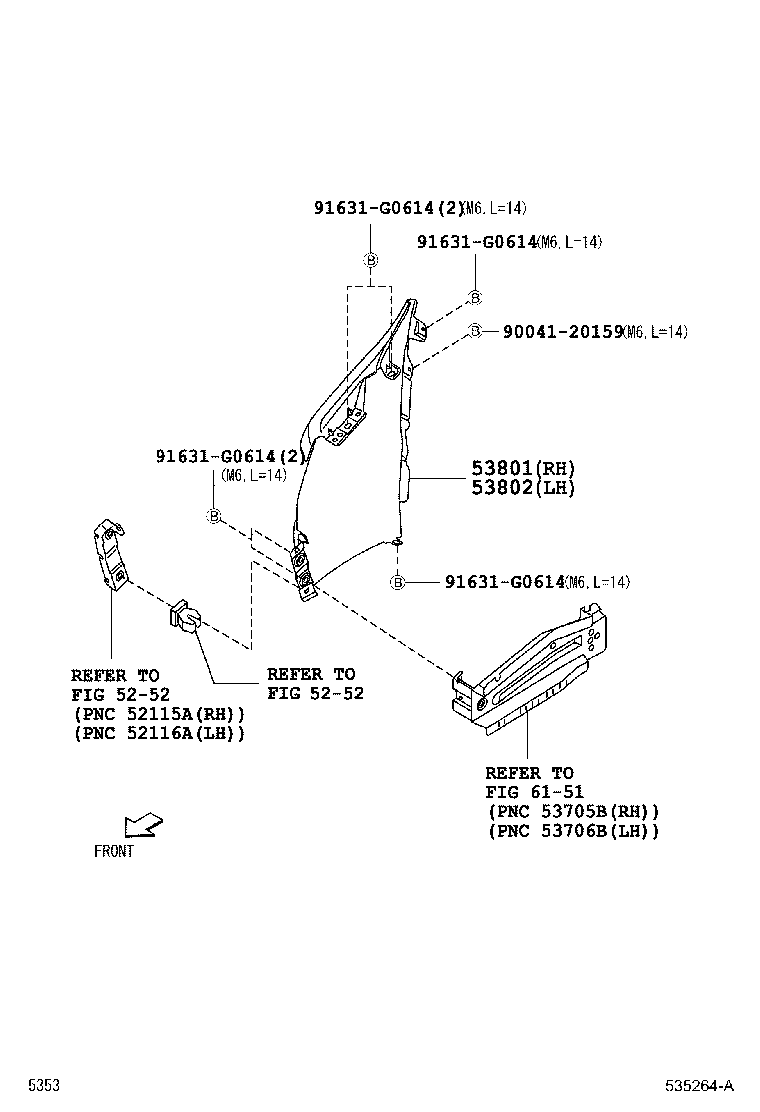

ILLUST NO. 3 OF 3(1112-1711)

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾌｪﾝﾀﾞ

diagram 5252 5252 53801 53802 6151 9004120159 91631G0614 91631G0614 91631G0614 91631G0614
Part # Description Qty Price
53801 - FENDER SUB-ASSY, FRONT RH
53811-B5011

S321,331

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-B5011

S321,331

 1
Common parts
90041-20159
91631-G0614
Linked diagrams
5252
6151
