S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

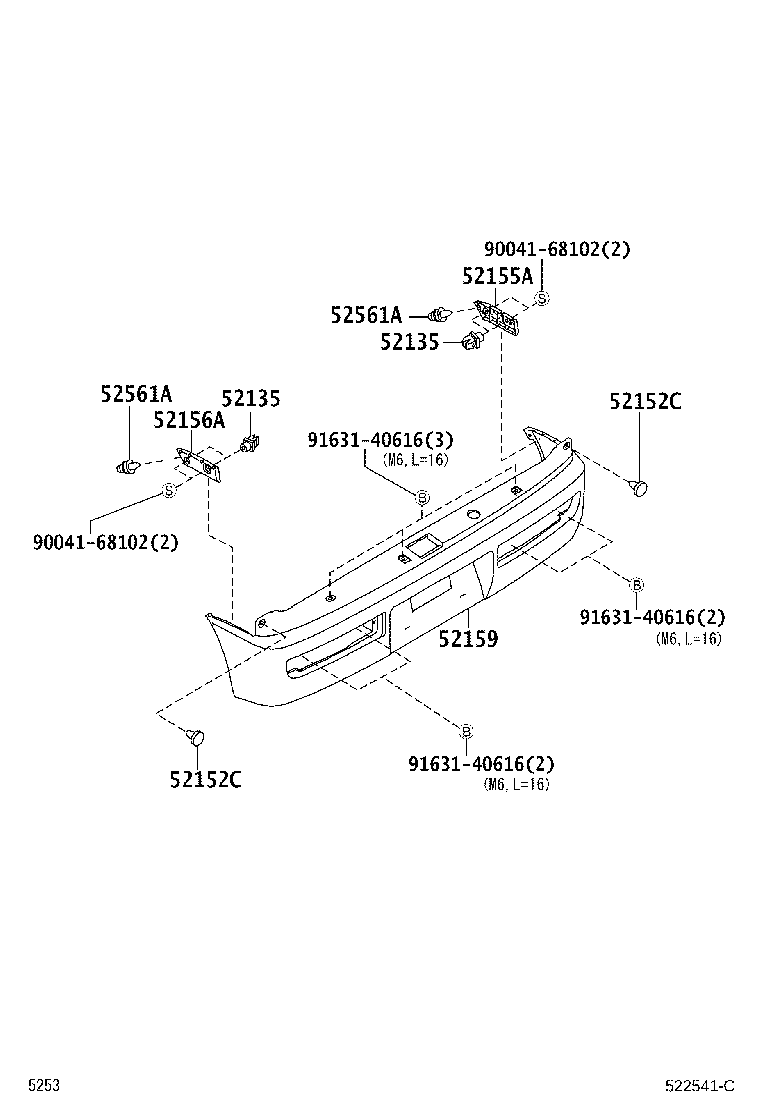

Click highlighted areas on diagram

diagram 52135 52135 52152C 52152C 52155A 52156A 52159 52561A 52561A 9004168102 9004168102 9163140616 9163140616 9163140616
Part # Description Qty Price
52135 - GROMMET, REAR BUMPER STAY
90041-89082

S321,331..PS2

 4
52135 - GROMMET, REAR BUMPER STAY
90041-89082

S321,331..PS2

 4
52152C - CLIP, REAR BUMPER SIDE
90044-68316

S321,331..PS2

 2
52152C - CLIP, REAR BUMPER SIDE
90044-68316

S321,331..PS2

 2
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-B5010

S321,331

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-B5010

S321,331..PS2

 1
52159 - COVER, REAR BUMPER
52159-B5020A3

S321,331..PS2

WHITE,W09 ,W19

 1
52159-B5020A2

S321,331..CR..PS2

WHITE PEARL MC.CS,W24

 1
52159-B5020C1

S321,331..PS2

BLACK M.M.,X07

 1
52159-B5020B2

S321,331..PS2

SILVER ME.,S28

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67526

S321,331..PS2

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67526

S321,331..PS2

 2
Common parts
90041-68102
91631-40616
