S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

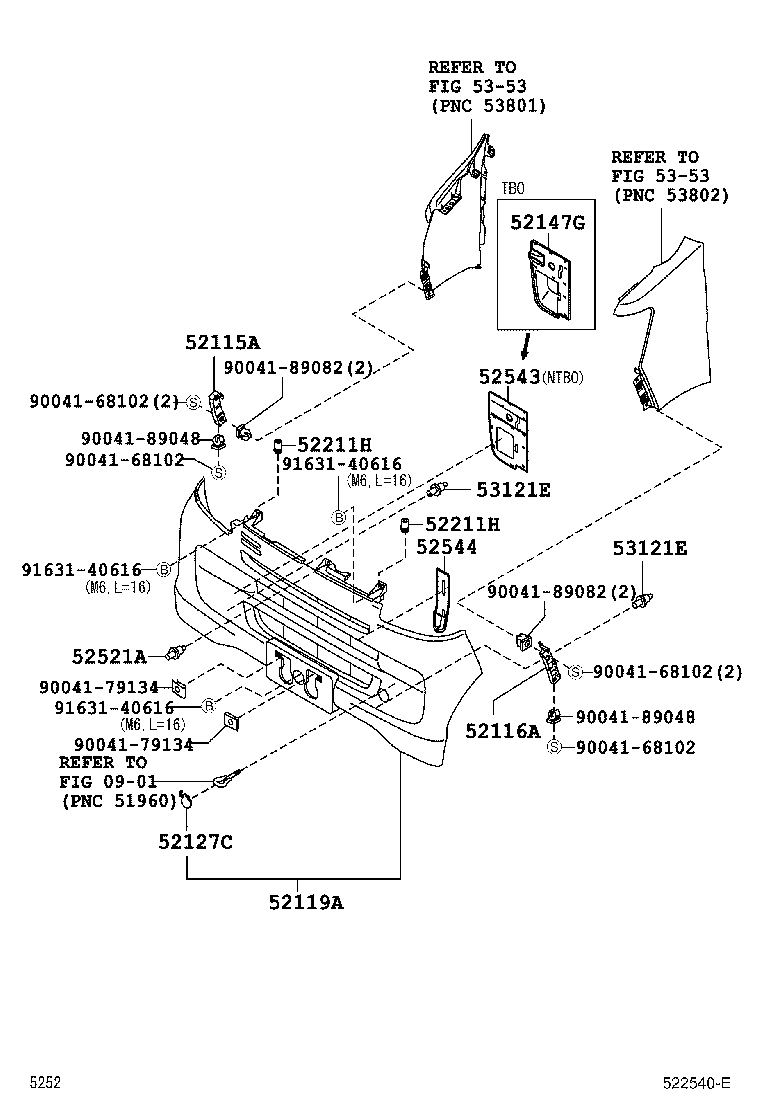

Click highlighted areas on diagram

diagram 0901 52115A 52116A 52119A 52127C 52147G 52211H 52211H 52521A 52543 52544 53121E 53121E 5353 5353 9004168102 9004168102 9004168102 9004168102 9004179134 9004179134 9004189048 9004189048 9004189082 9004189082 9163140616 9163140616 9163140616
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-B5010

S321,331..PS2

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-B5010

S321,331..PS2

 1
52119A - COVER, FRONT BUMPER
52119-B5160C0

S321,331..PS2

BLACK M.M.,X07

 1
52119-B5160A2

S321,331..CR..PS2

WHITE PEARL MC.CS,W24

 1
52119-B5160B0

S321,331..PS2

SILVER ME.,S28

 1
52119-B5160A3

S321,331..PS2

WHITE,W09 ,W19

 1
52127C - COVER, FRONT BUMPER HOLE
52128-B5110C0

S321,331..PS2

BLACK M.M.,X07

 1
52128-B5110A2

S321,331..CR..PS2

WHITE PEARL MC.CS,W24

 1
52128-B5110A3

S321,331..PS2

WHITE,W09 ,W19

 1
52128-B5110B0

S321,331..PS2

SILVER ME.,S28

 1
52147G - GUIDE, FRONT BUMPER LOCATING
52147-B5030

S321,331..TBO..PS2

 1
52211H - CUSHION(FOR FRONT BUMPER ARM)
67855-B5010

S321,331..PS2

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
67855-B5010

S321,331..PS2

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90044-68320

S321,331..PS2

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-B5050

S321,331..NTBO..PS2

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-B5030

S321,331..PS2

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68346

S321,331..PS2

 2
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68346

S321,331..PS2

 2
Common parts
90041-68102
90041-79134
90041-89048
90041-89082
91631-40616
Linked diagrams
0901
5353
