S321M-ZQGF3 (2015)
Toyota Pixis Van

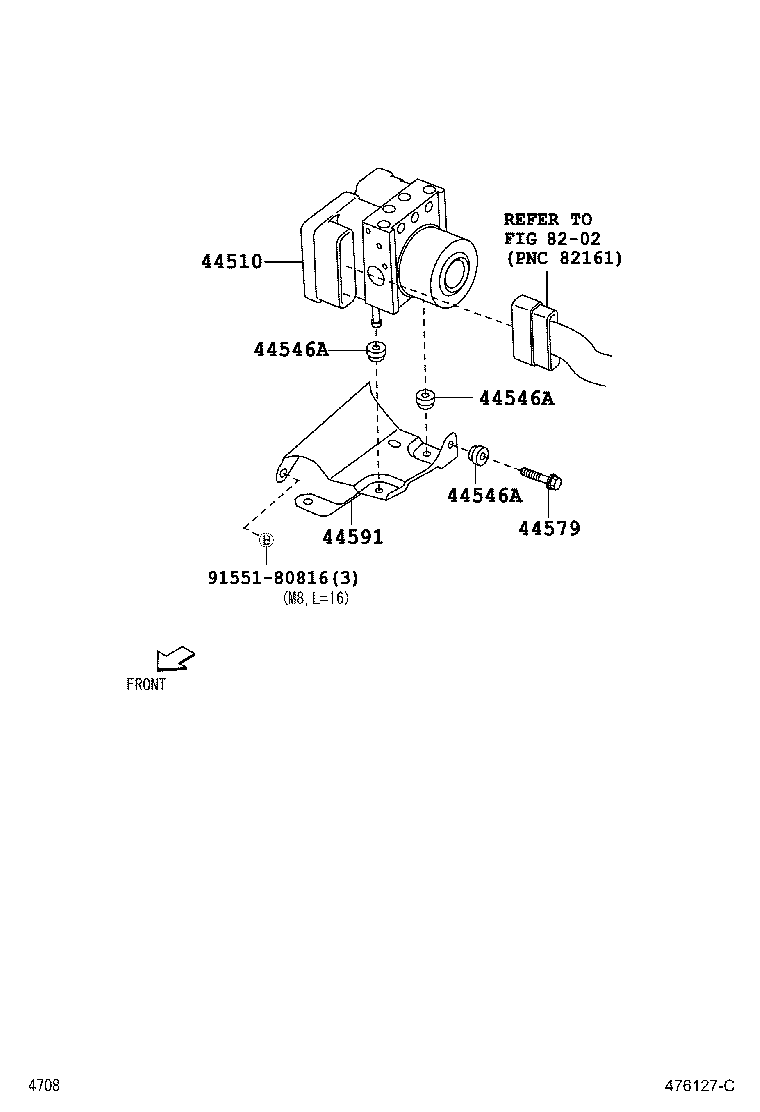

ILLUST NO. 2 OF 2(1112-1711)
ABSｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B5010 |
S321..CR..PS2 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-B5010 |
S321,331..CR..PS2 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-B5010 |
S321,331..CR..PS2 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-B5010 |
S321,331..CR..PS2 |
3 | ||
| 44579 - BOLT, BRAKE ACTUATOR BRACKET | ||||
| 44548-B5010 |
S321,331..CR..PS2 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-B5010 |
S321,331..CR..PS2 |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 8202 | ||||

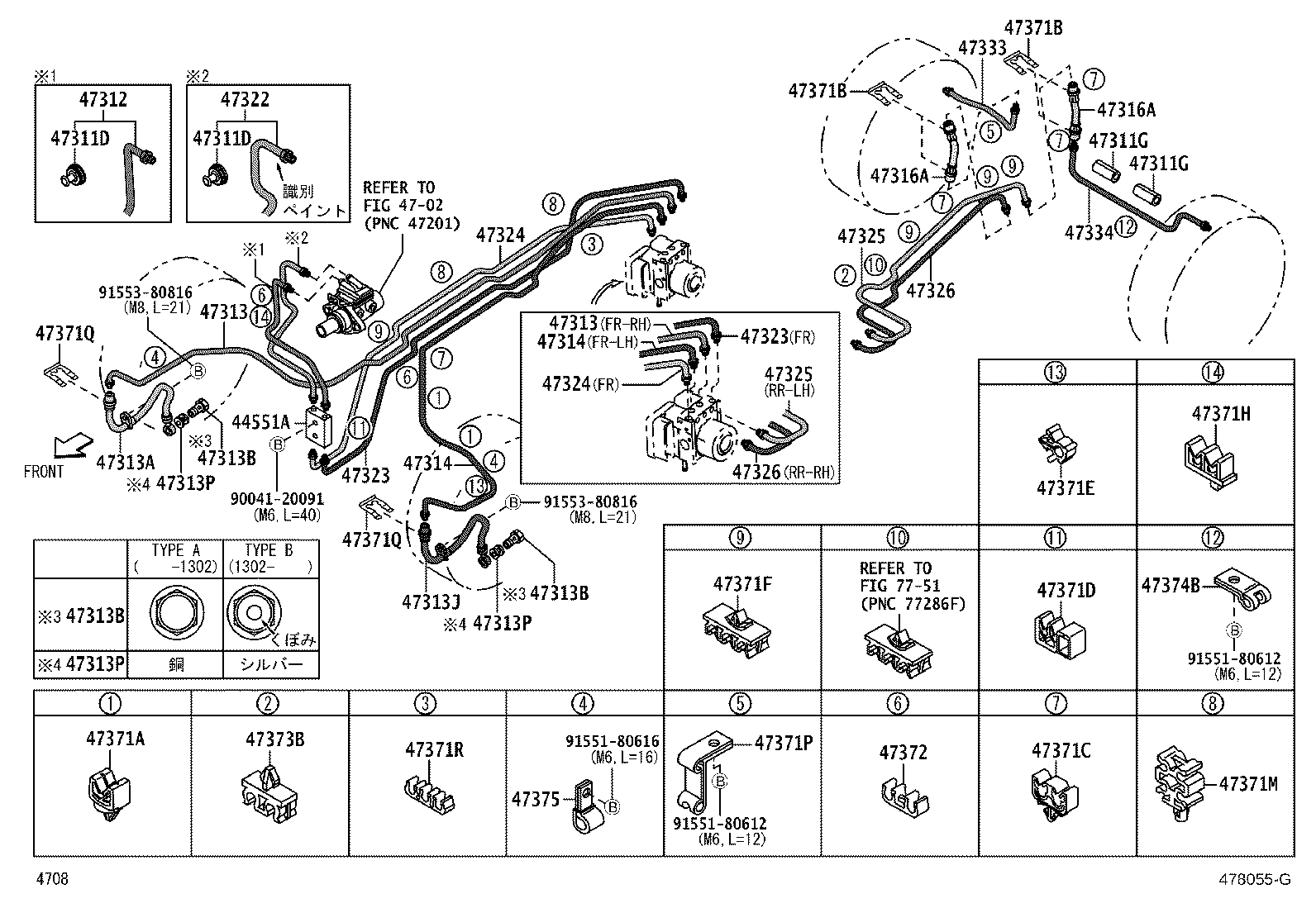

ILLUST NO. 1 OF 2(1112-1711)
W/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44589-B2010 |
S321,331..CR..PS2 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90044-80648 |
S321,331..PS2 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90044-80648 |
S321,331..PS2 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90044-46059 |
S321,331..CR..PS2 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90044-46059 |
S321,331..CR..PS2 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B5050 |
S321,331..CR..PS2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B5021 |
S321,331..CR..PS2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B5021 |
S321,331..CR..PS2 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22195 |
S321,331 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90049-22195 |
S321,331 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
S321,331 TYPE B ｼﾙﾊﾞｰ |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
S321,331 TYPE B ｼﾙﾊﾞｰ |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
S321,331 TYPE B ｼﾙﾊﾞｰ |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B5011 |
S321,331..CR..PS2 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B5011 |
S321,331..CR..PS2 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22303 |
S321,331..CR..PS2 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22303 |
S321,331..CR..PS2 |
2 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B5050 |
S321,331..CR..PS2 識別ﾍﾟｲﾝﾄ=黄 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B5011 |
S321,331..CR..PS2 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B5011 |
S321,331..CR..PS2 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B5010 |
S321,331..CR..PS2 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64826 |
S321,331..CR..PS2 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
S321,331..CR |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
S321,331..CR |
4 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90469-07012 |
S321,331..CR..PS2 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90044-64710 |
S321,331..PS2 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90044-64659 |
S321,331..CR..PS2 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90044-64742 |
S321,331..CR..PS2 |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-64790 |
S321,331..PS2 |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90044-65521 |
S321,331..CR..PS2 |
2 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90044-61364 |
S321,331..PS2 |
1 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90044-65441 |
S321,331 |
2 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90044-65441 |
S321,331 |
2 | ||
| 47371R - CLAMP, BRAKE TUBE, NO.16 | ||||
| 90044-64196 |
S321,331..CR..PS2 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64731 |
S321,331..CR..PS2 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64622 |
S321,331..CR..PS2 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
S321,331..PS2 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 96221-10706 |
S321,331..PS2 |
2 | ||
| Common parts | ||||
| 90041-20091 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91553-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
