S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

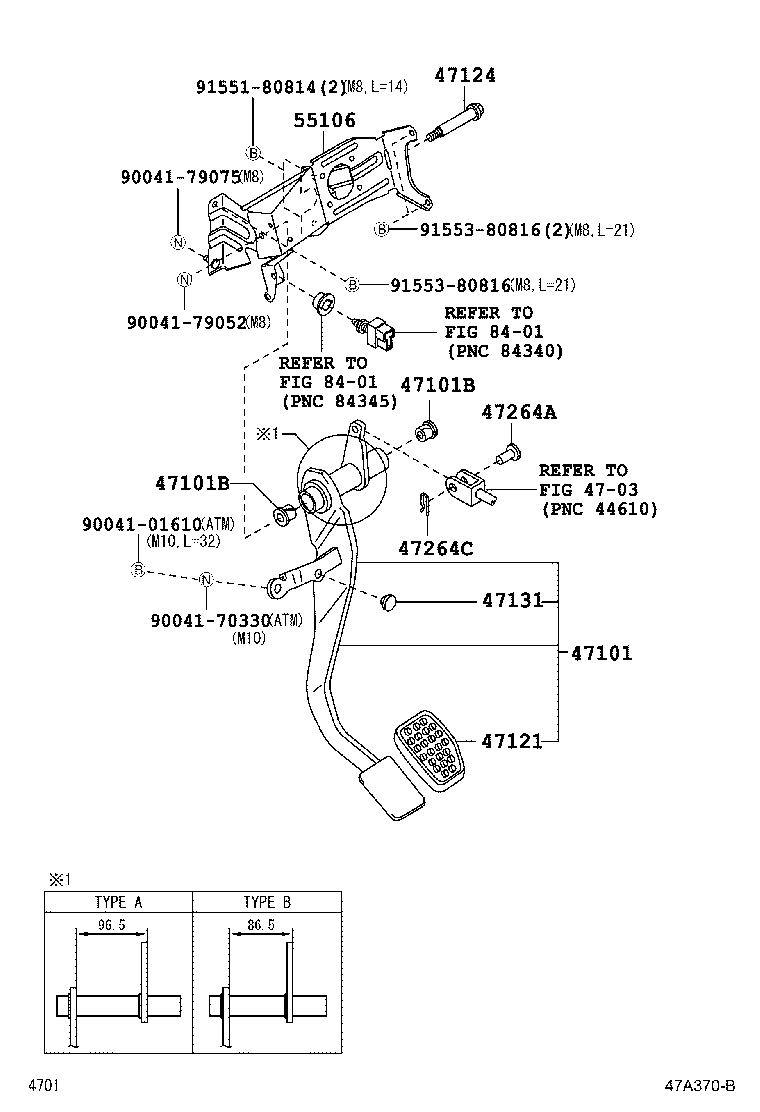

Click highlighted areas on diagram

diagram 4703 47101 47101B 47101B 47121 47124 47131 47264A 47264C 55106 8401 8401 9004101610 9004170330 9004179052 9004179075 9155180814 9155380816 9155380816
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-B5080

S321,331

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

S321,331..PS2

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

S321,331..PS2

 2
47121 - PAD, BRAKE PEDAL
31321-97501

S321,331..PS2

 1
47124 - SHAFT, BRAKE PEDAL
47124-B5010

S321,331..PS2

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

S321,331..PS2

 1
47264A - PIN(FOR PUSH ROD)
90042-40151

S321,331..PS2

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

S321,331..PS2

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-B5060

S321,331

 1
Common parts
90041-01610
90041-70330
90041-79052
90041-79075
91551-80814
91553-80816
Linked diagrams
4703
8401
