S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

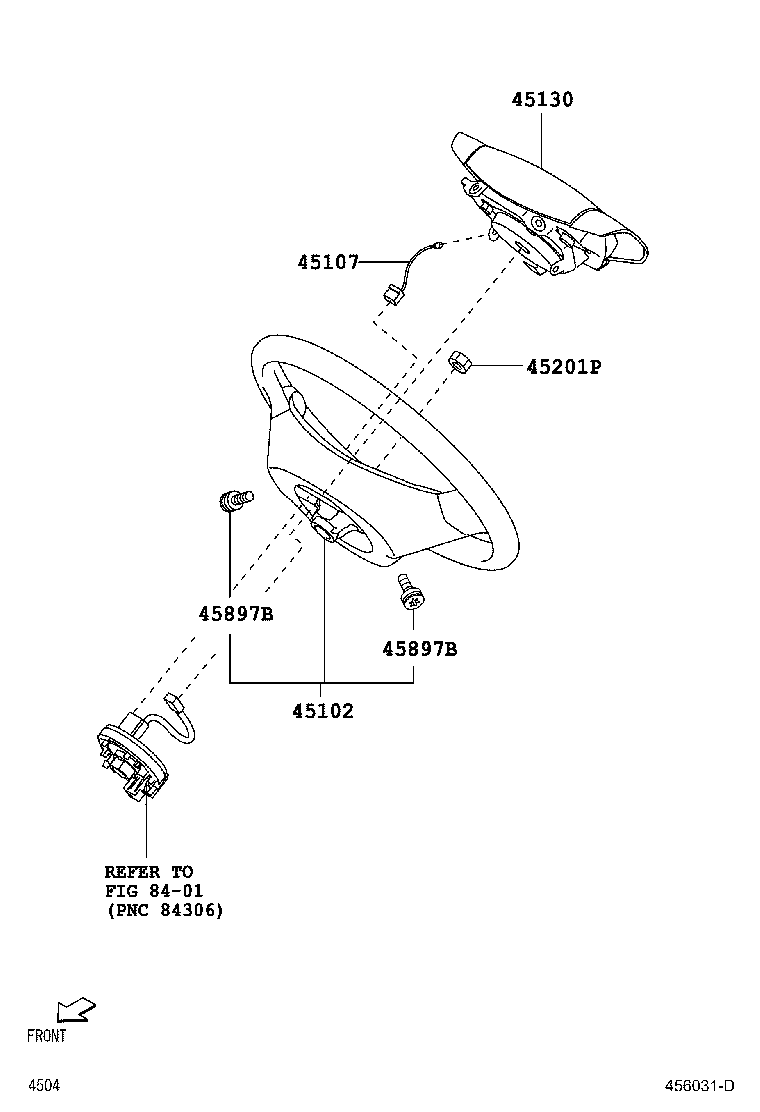

Click highlighted areas on diagram

diagram 45102 45107 45130 45201P 45897B 45897B 8401
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-B2180B2

S321,331..PS2

GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2030

S321,331..PS2

 1
45130 - BUTTON ASSY, HORN
45130-B5150B0

S321,331..CR..PS2

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90041-70014

S321,331..PS2

M12

 1
45897B - BOLT, STEERING LOCK SET
45897-B2020

S321,331..PS2

M6,L=12

 2
45897B - BOLT, STEERING LOCK SET
45897-B2020

S321,331..PS2

M6,L=12

 2
Linked diagrams
8401
