S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

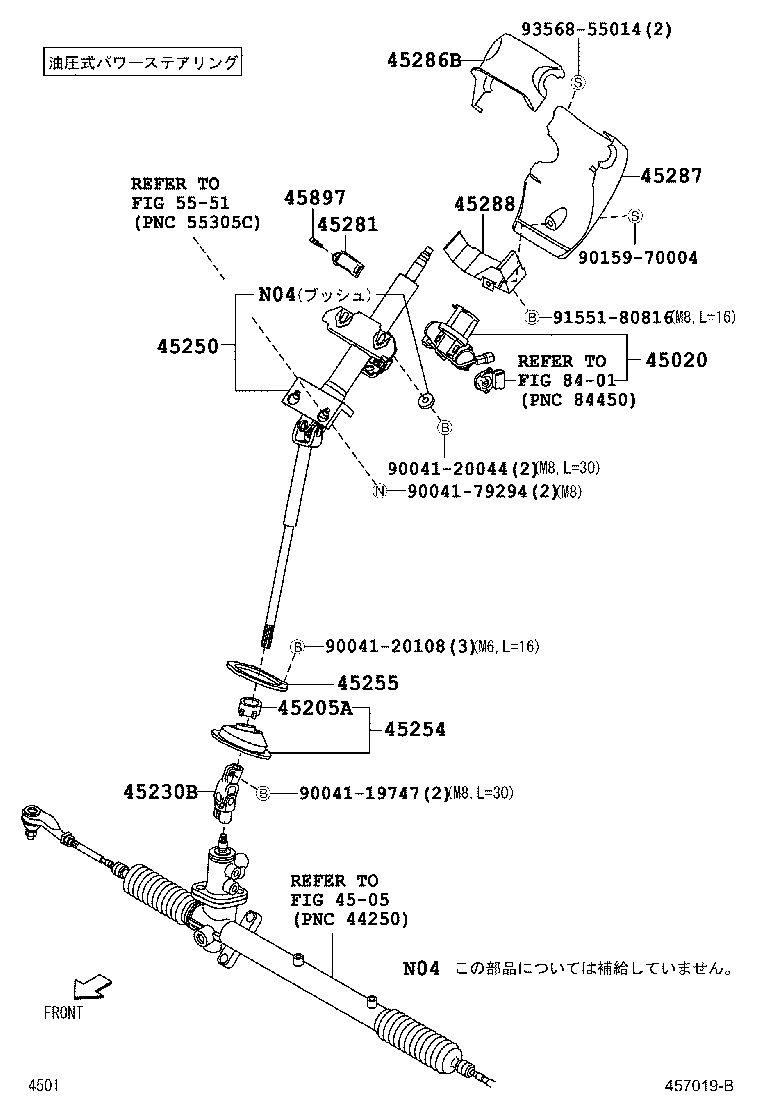

Click highlighted areas on diagram

diagram 45020 4505 45205A 45230B 45250 45254 45255 45281 45286B 45287 45288 45897 5551 8401 9004119747 9004120044 9004120108 9004179294 9015970004 9155180816 9356855014
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-B5020

S321,331..4FC..PS2

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
45273-B5010

S321,331..PS2

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B5021

S321,331..PS2

 1
45250 - COLUMN ASSY, STEERING
45250-B5050

S321,331..PS2

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B5011

S321,331..PS2

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45223-B5010

S321,331..PS2

 1
45281 - HOUSING, STEERING COLUMN
45281-B5010

S321,331..PS2

 1
45286B - COVER, STEERING COLUMN, UPR
45286-B5010B0

S321,331..PS2

GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-B5010B0

S321,331..PS2

GRAY,TRIM1#

 1
45288 - PLATE, STEERING COLUMN COVER
76616-B5010

S321,331..PS2

 1
45897 - BOLT, STEERING LOCK SET
45897-B1020

S321,331

M8,L=27

 1
45897-B5010

S321,331..PS2

M8,L=27

 1
Common parts
90041-19747
90041-20044
90041-20108
90041-79294
90159-70004
91551-80816
93568-55014
Linked diagrams
4505
5551
8401
