S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)4FC

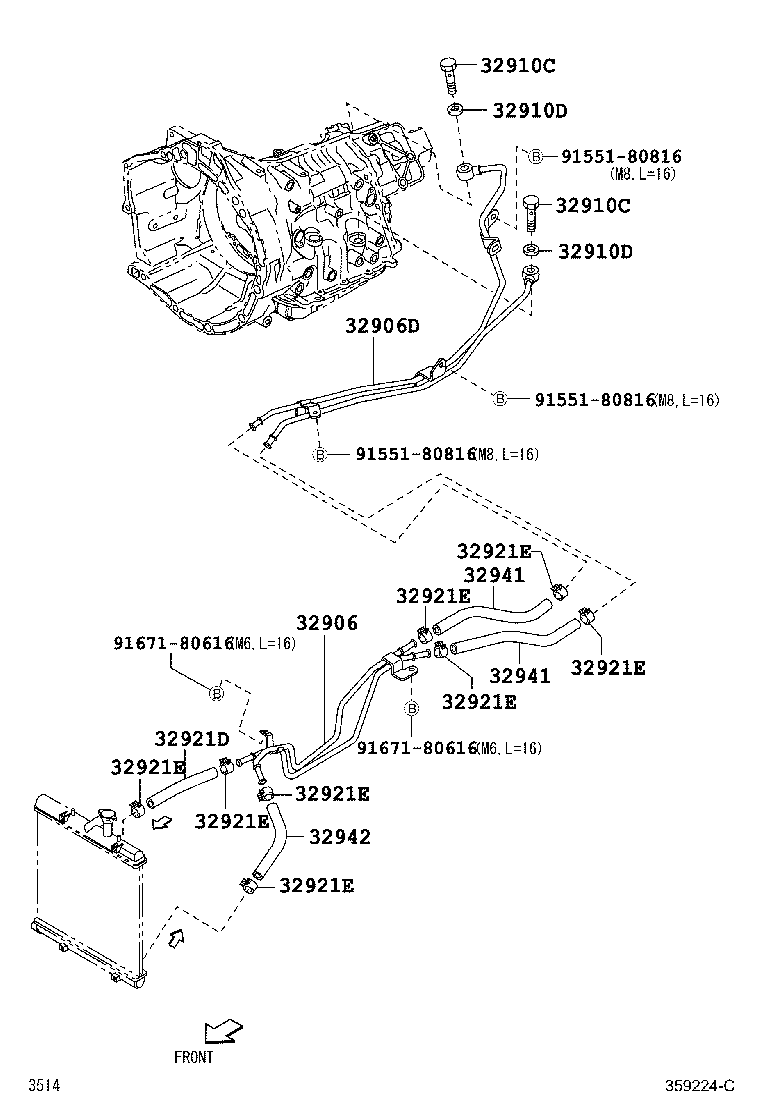

Click highlighted areas on diagram

diagram 32906 32906D 32910C 32910C 32910D 32910D 32921D 32921E 32921E 32921E 32921E 32921E 32921E 32921E 32921E 32941 32941 32942 9155180816 9155180816 9155180816 9167180616 9167180616
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32909-B5090

S321,331..4FC

 1
32906D - TUBE SUB-ASSY, OIL COOLER, NO.2
32909-B5080

S321,331..4FC

 1
32910C - BOLT, UNION(FOR OIL COOLER)
90044-01081

S321,331..4FC..PS2

M12,L=32

 2
32910C - BOLT, UNION(FOR OIL COOLER)
90044-01081

S321,331..4FC..PS2

M12,L=32

 2
32910D - GASKET(FOR OIL COOLER)
90044-30302

S321,331..4FC..PS2

 2
32910D - GASKET(FOR OIL COOLER)
90044-30302

S321,331..4FC..PS2

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-B5020

S321,331..4FC..PS2

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32921E - CLAMP, HOSE(FOR OIL COOLER)
90466-16002

S321,331..4FC

 8
32941 - HOSE, OIL COOLER INLET, NO.1
32941-B5010

S321,331..4FC..PS2

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-B5010

S321,331..4FC..PS2

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-B5011

S321,331..4FC..PS2

 1
Common parts
91551-80816
91671-80616
