S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)4FC ; (1711- )4FC

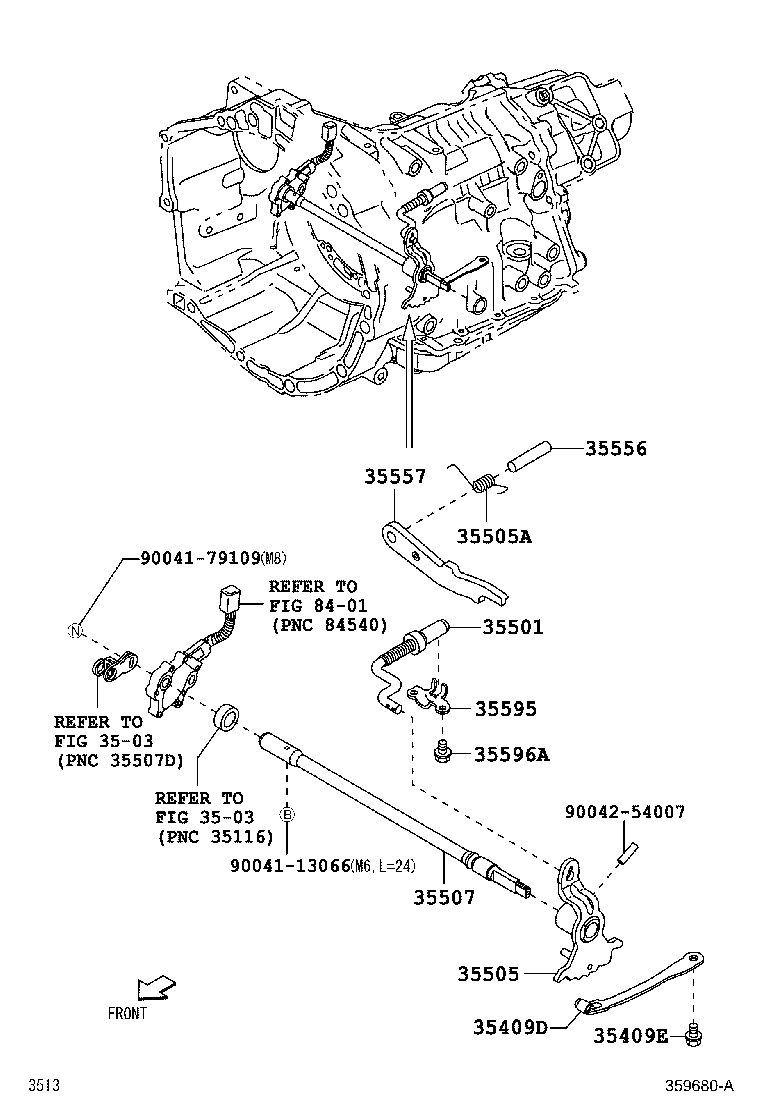

Click highlighted areas on diagram

diagram 3503 3503 35409D 35409E 35501 35505 35505A 35507 35556 35557 35595 35596A 8401 9004113066 9004179109 9004254007
Part # Description Qty Price
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-B1020

S321,331..4FC

 1
35409E - BOLT(FOR MANUAL DETENT SPRING)
90041-05511

S321,331..4FC

M6,L=30

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-B1021

S321,331..4FC

 1
35501-B5010

S321,331..4FC

 1
35501-B1020

S321,331..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35057-B1010

S321,331..4FC

 1
35505A - SPRING, TORSION (FOR MANUAL VALVE LEVER)
90045-08419

S321,331..4FC

 1
35507 - SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE
33511-B1010

S321,331..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-87502

S321,331..4FC..PS2

 1
35557 - PAWL, PARKING LOCK
35557-B1020

S321,331..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-B1020

S321,331..4FC

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90041-05412

S321,331..4FC

M8,L=20

 2
Common parts
90041-13066
90041-79109
90042-54007
Linked diagrams
3503
8401
