S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)S321..4FC ; (1711- )S321..4FC

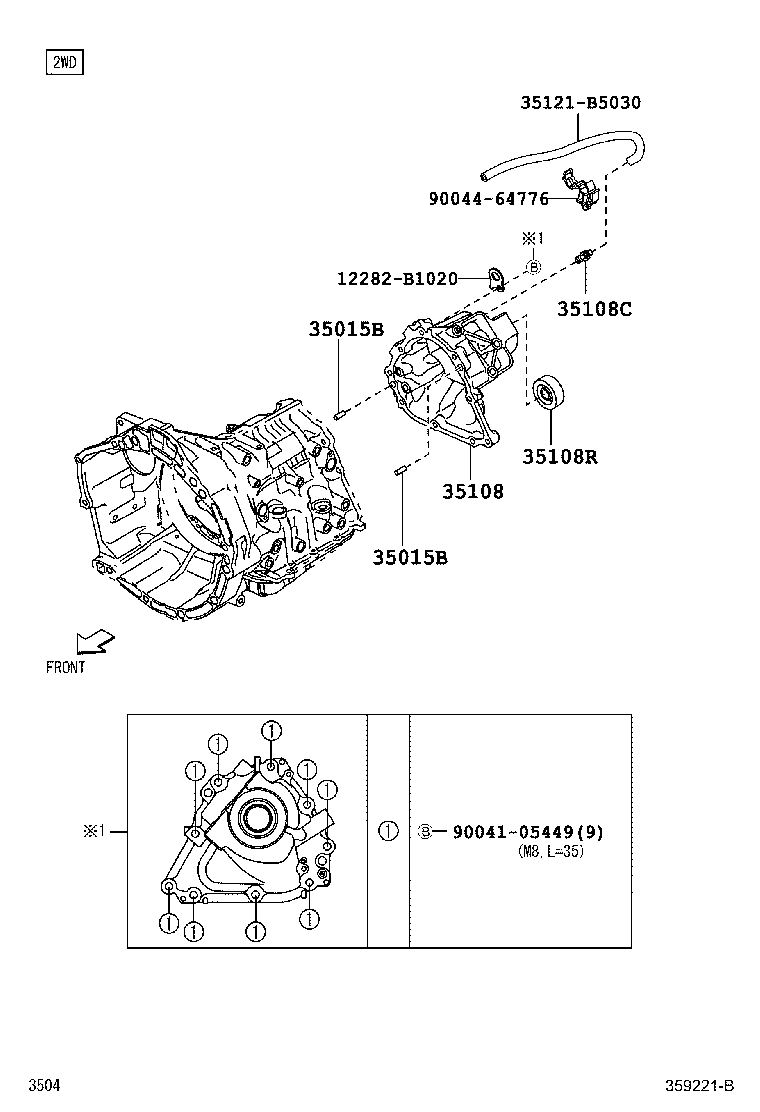

Click highlighted areas on diagram

2WD

diagram 12282B1020 35015B 35015B 35108 35108C 35108R 35121B5030 9004105449 9004464776
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90042-50157

S321,331..4FC..PS2

 2
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90042-50157

S321,331..4FC..PS2

 2
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-B1020

S321..4FC

 1
35108C - PLUG (FOR AUTOMATIC EXTENSION HOUSING)
90049-15054

S321,331..4FC

NO.1

 1
Common parts
12282-B1020
35121-B5030
90041-05449
90044-64776
