S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)4FC ; (1711- )4FC

Click highlighted areas on diagram

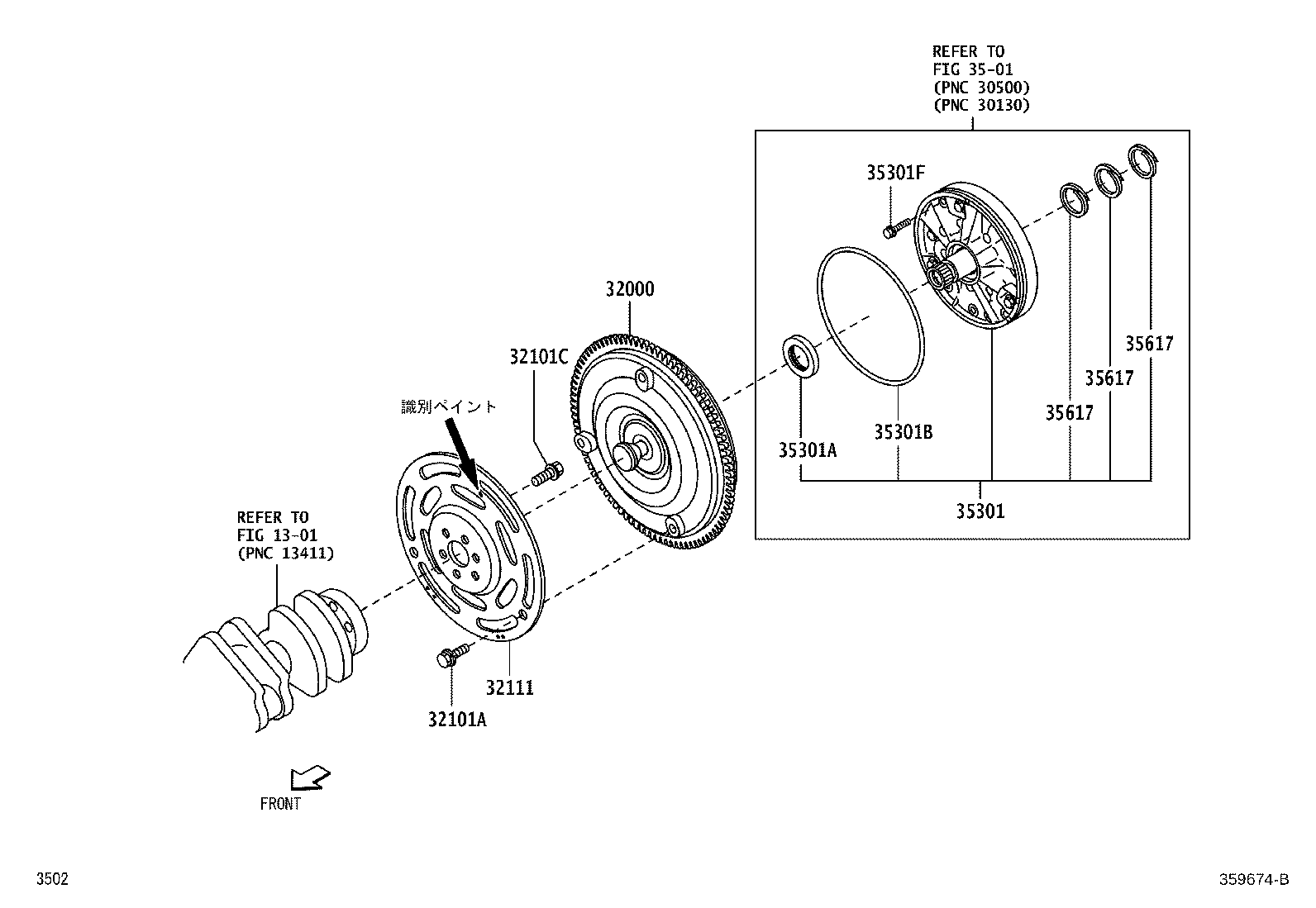

diagram 1301 32000 32101A 32101C 32111 3501 35301 35301A 35301B 35301F 35617 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-B1110

S321,331..4FC..TBO

 1
32000-B1090

S321,331..4FC..NTBO

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05542

S321,331..4FC..PS2

ﾌﾞﾗｯｸ(M10､L=10.7)

 2
90041-05541

S321,331..4FC..PS2

ｼﾙﾊﾞｰ(M10､L=10.2)

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

S321,331..4FC

M10,L=19.5(ｼｰﾙﾎﾞﾙﾄ)

 6
32111 - PLATE, PUMP IMPELLER DRIVE
32103-B5050

S321,331..4FC..PS2

識別ﾍﾟｲﾝﾄ=無し

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35310-B1050

S321,331..4FC

 1
35310-B1040

S321,331..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90043-11336

S321,331..4FC..PS2

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90043-01161

S321,331..4FC..PS2

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90041-05122

S321,331..4FC..PS2

M6,L=30

 7
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

S321,331..4FC

 3
35653-B1010

S321,331..4FC

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

S321,331..4FC

 3
35653-B1010

S321,331..4FC

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

S321,331..4FC

 3
35653-B1010

S321,331..4FC

 3
