S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)4FC

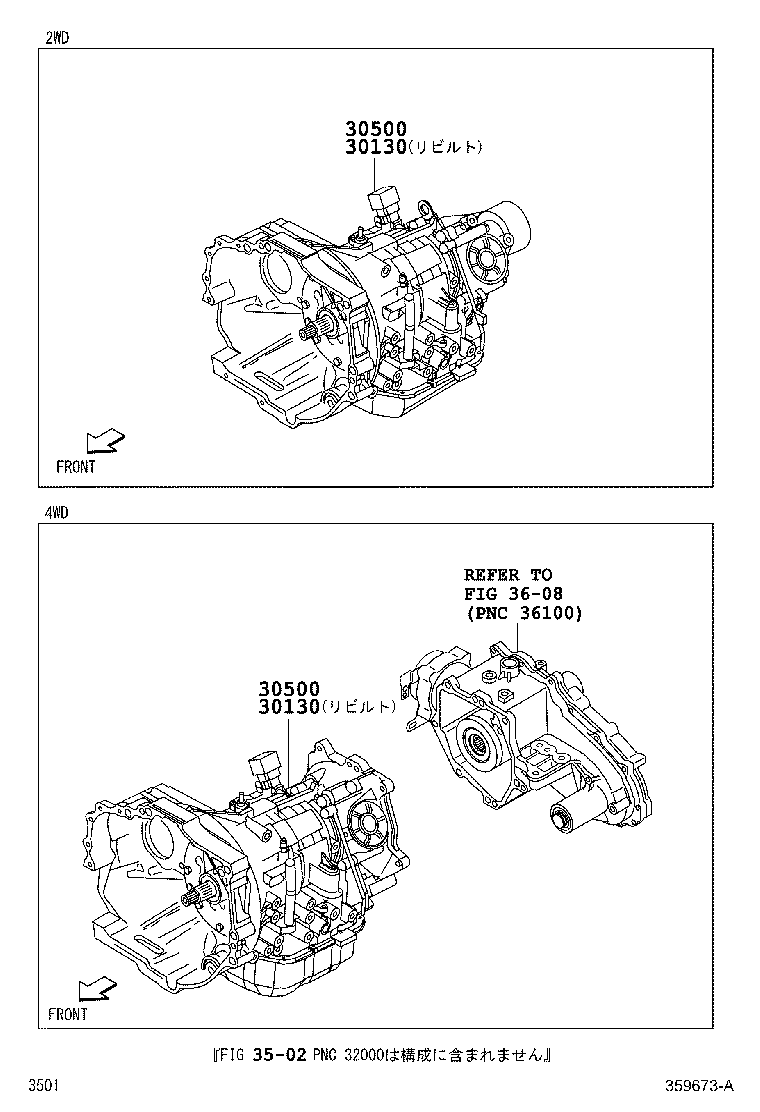

Click highlighted areas on diagram

diagram 30130 30130 30500 30500 3502 3608
Part # Description Qty Price
30130 - TRANSAXLE ASSY, REBUILT
30030-B2140

S321..4FC..TBO

識別ﾗﾍﾞﾙ AN9R,AP9R

 1
30030-B2120

S321..4FC..NTBO

識別ﾗﾍﾞﾙ AB9R,AC9R

 1
30130 - TRANSAXLE ASSY, REBUILT
30030-B2140

S321..4FC..TBO

識別ﾗﾍﾞﾙ AN9R,AP9R

 1
30030-B2120

S321..4FC..NTBO

識別ﾗﾍﾞﾙ AB9R,AC9R

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
35000-B5140

S321..4FC..TBO

識別ﾗﾍﾞﾙ AN9S,AP9S

 1
35000-B5120

S321..4FC..NTBO

識別ﾗﾍﾞﾙ AB9S,AC9S

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
35000-B5140

S321..4FC..TBO

識別ﾗﾍﾞﾙ AN9S,AP9S

 1
35000-B5120

S321..4FC..NTBO

識別ﾗﾍﾞﾙ AB9S,AC9S

 1
Linked diagrams
3502
3608
