S321M-ZQGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1711)KF#..5F ; (1504-1711)KF#..4FC

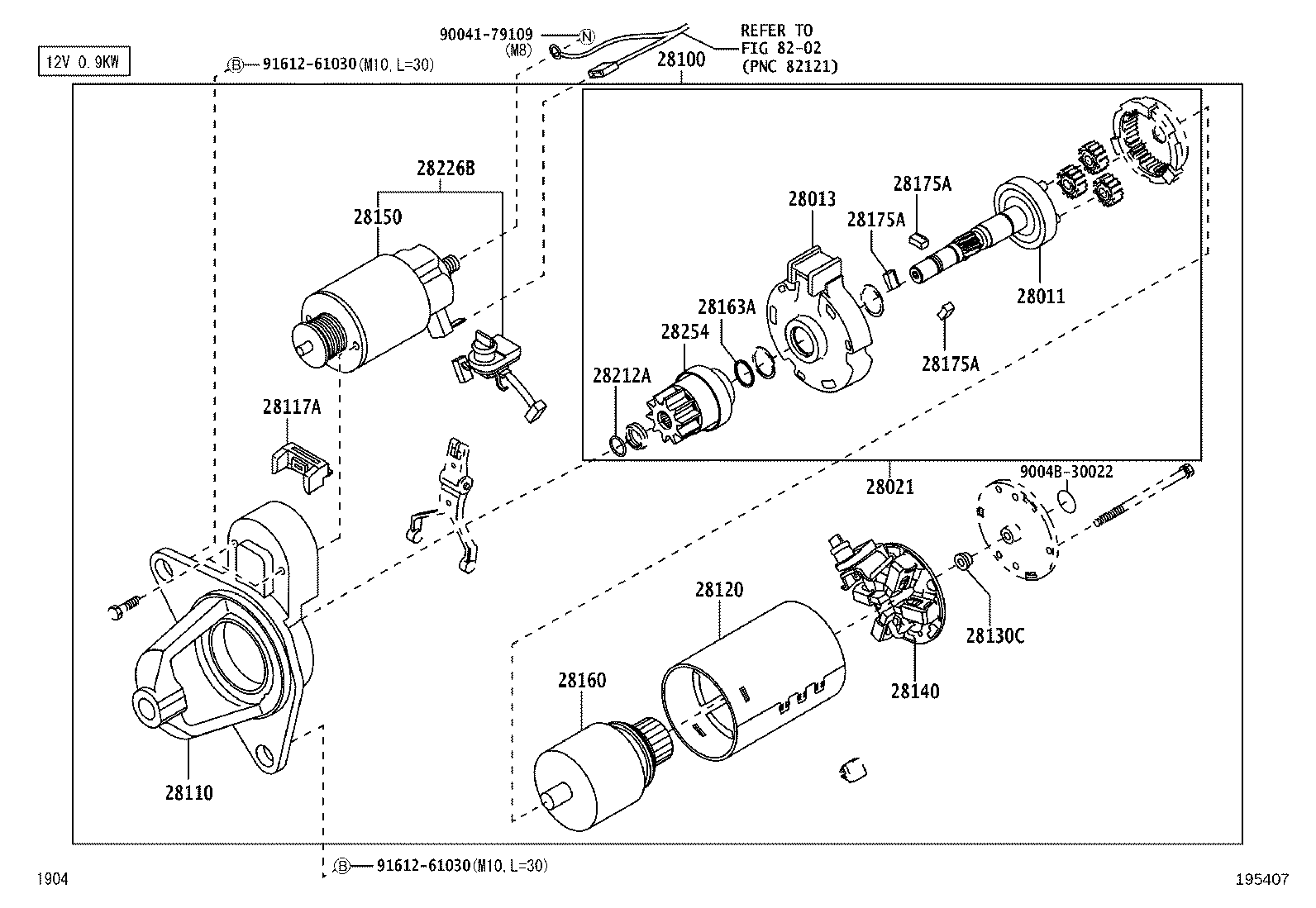

Click highlighted areas on diagram
12V 0.6KW, 12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-B5050 |
KF#..S321,331..4FC 12V 0.9KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-B5020 |
KF#..S321,331..4FC |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 28253-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-B5020 |
KF#..S321,331..4FC |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-B5010 |
KF#..S321,331..4FC |
1 | ||
| Common parts | ||||
| 90041-79109 | ||||
| 91612-61030 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(1504-1711)KF#..4FC
Click highlighted areas on diagram
12V 0.9KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28126-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-B5050 |
KF#..S321,331..4FC 12V 0.9KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-B5030 |
KF#..S321,331..4FC |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-B5020 |
KF#..S321,331..4FC |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 28253-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-B5020 |
KF#..S321,331..4FC |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 9004B-52011 |
KF#..S321,331..4FC |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 9004B-43001 |
KF#..S321,331..4FC |
3 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 9004B-43001 |
KF#..S321,331..4FC |
3 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 9004B-43001 |
KF#..S321,331..4FC |
3 | ||
| 28212A - RING, SNAP, STARTER CLUTCH HOUSING DISC | ||||
| 9004B-52012 |
KF#..S321,331..4FC |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-B5010 |
KF#..S321,331..4FC |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-B5010 |
KF#..S321,331..4FC |
1 | ||
| Common parts | ||||
| 90041-79109 | ||||
| 9004B-30022 | ||||
| 91612-61030 | ||||
| Linked diagrams | ||||
| 8202 | ||||
