S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)KFVE

Click highlighted areas on diagram

ｴｱ ｸﾘｰﾅ

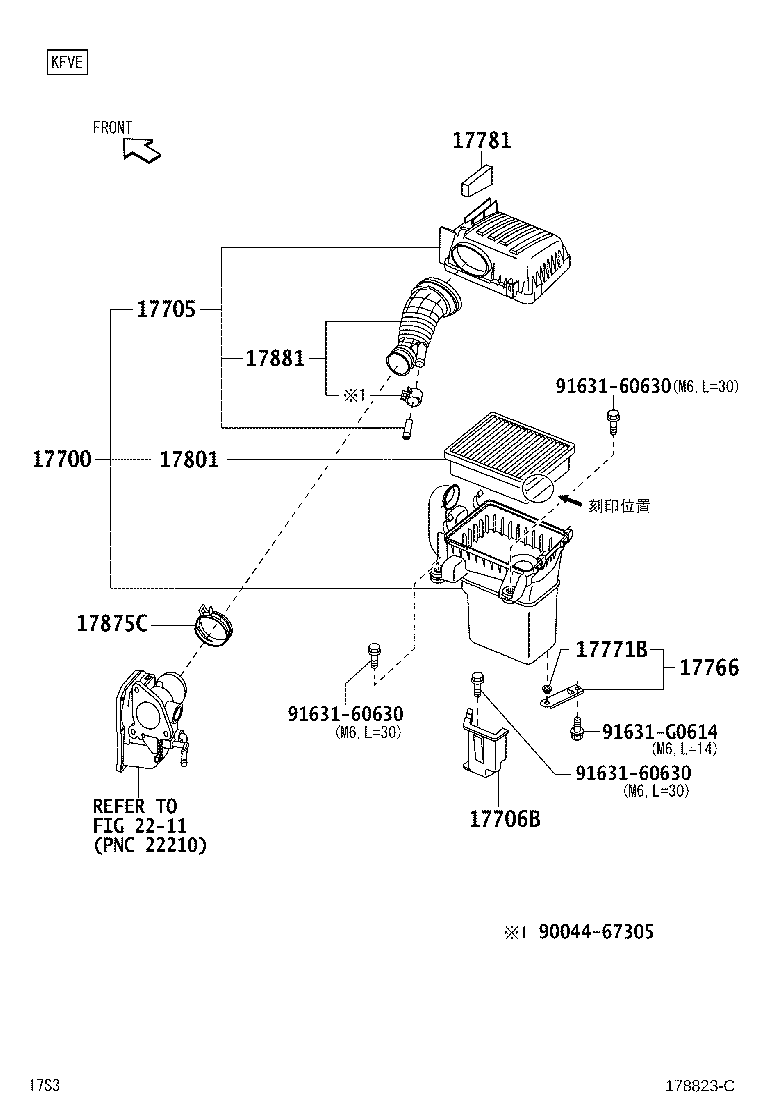

diagram 17700 17705 17706B 17766 17771B 17781 17801 17875C 17881 2211 9004467305 9163160630 9163160630 9163160630 91631G0614
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-B5020

KFVE..S321,331

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-B5040

KFVE..S321,331

 1
17706B - RETAINER, AIR CLEANER INLET PIPE
17799-B5010

KFVE..S321,331..PS2

 1
17766 - STAY, AIR CLEANER, NO.2
17766-B5011

KFVE..S321,331..PS2

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80598

KFVE..S321,331..PS2

 1
17781 - SEAL, AIR CLEANER INLET
17781-B5010

KFVE..S321,331..PS2

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-B5010

KFVE..S321,331

識別刻印=TD30

 1
17801-B5040

KFVE..S321,331

識別刻印=M20+GF10

 1
17875C - CLIP(FOR HOSE, NO.1)
90044-67613

KFVE..S321,331

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-B5030

KFVE..S321,331

 1
Common parts
90044-67305
91631-60630
91631-G0614
Linked diagrams
2211
