S321M-ZQGF3 (2015)
Toyota Pixis Van
Production
Mar 2015
-
Nov 2017
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )KFVE

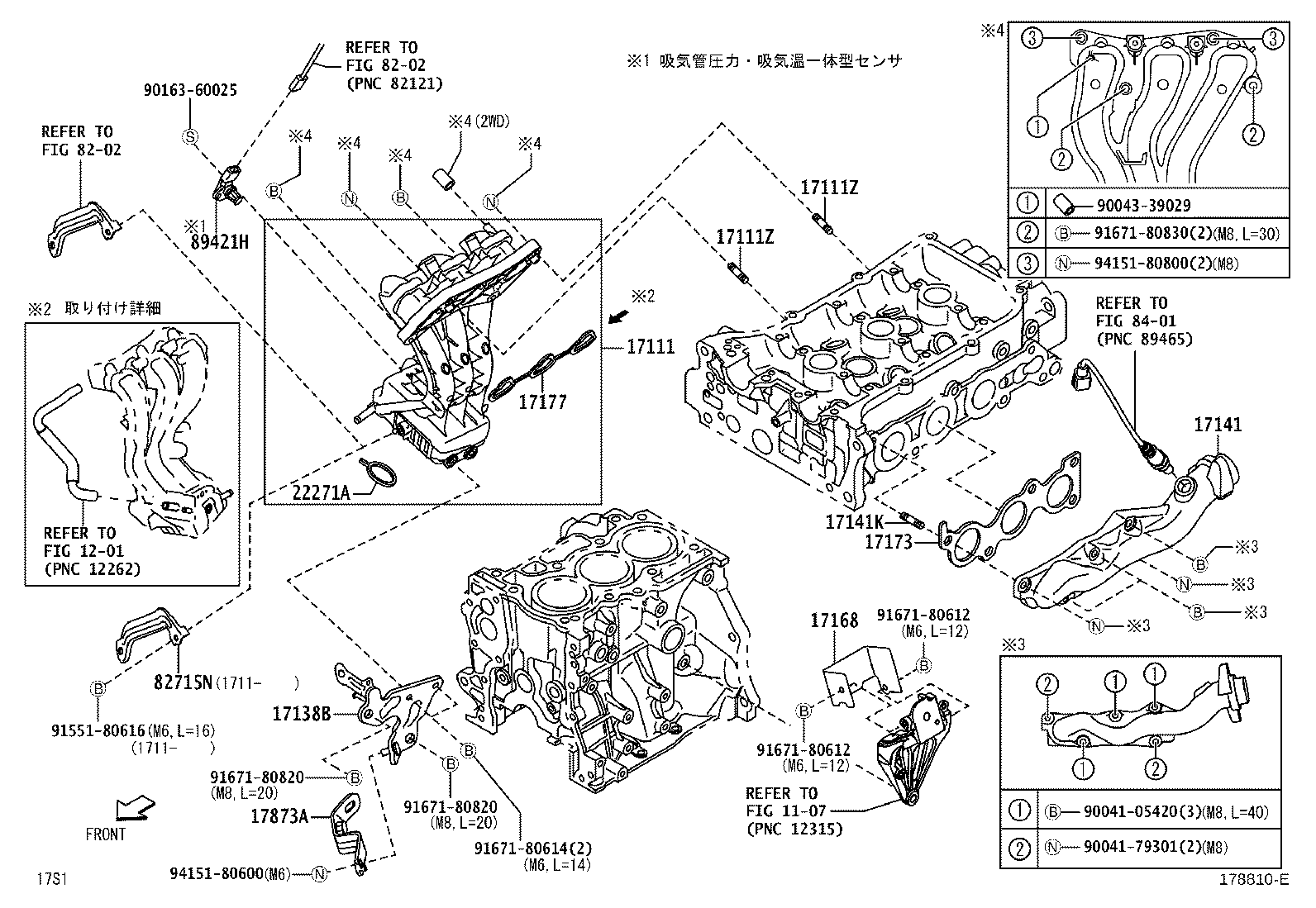

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-B2120 |
KF#..S321,331 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90041-26003 |
KF#..S321,331..PS2 |
2 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90041-26003 |
KF#..S321,331..PS2 |
2 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-B2101 |
KF#..S321,331 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-B2040 |
KFVE..S321,331..PS2 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90041-16487 |
KF#..S321,331..PS2 |
2 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-B2010 |
KFVE..S321,331..PS2 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-B2021 |
KF#..S321,331..PS2 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 17873A - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17872-B5010 |
KF#..S321,331 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-B2040 |
KF#..S321,331 |
1 | ||
| 89421H - SENSOR, VACUUM | ||||
| 89421-B2020 |
S321,331..TBO..PS2 |
1 | ||
| Common parts | ||||
| 90041-05420 | ||||
| 90041-79301 | ||||
| 90043-39029 | ||||
| 90163-60025 | ||||
| 91551-80616 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 91671-80830 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1201 | ||||
| 8202 | ||||
| 8401 | ||||
