S321M-ZQGF3 (2015)
Toyota Pixis Van
(1504-1711)KFVE

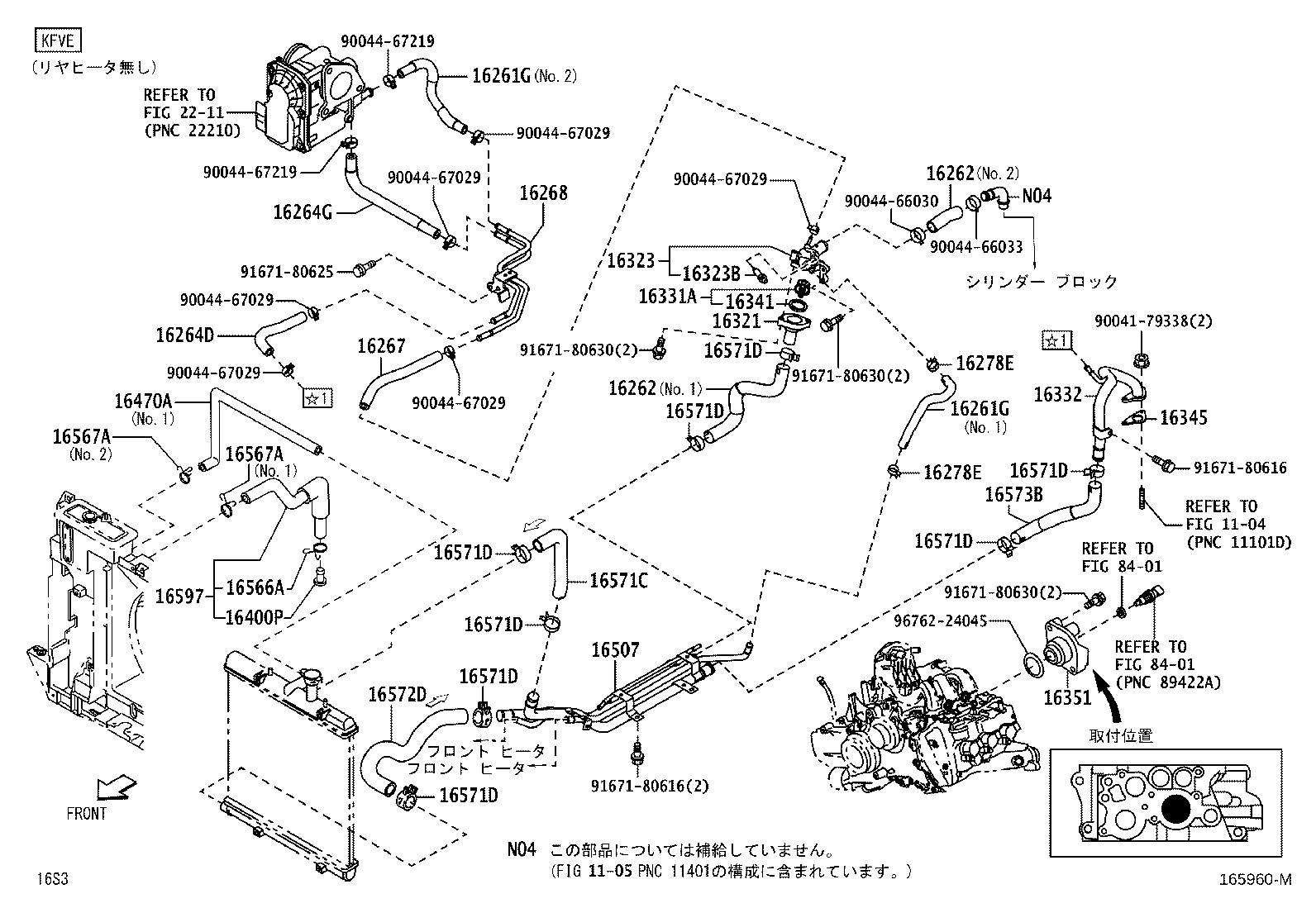

ﾎｰｽ(ﾘﾔﾋｰﾀﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B5050 |
KFVE..S321,331 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-B5010 |
KF#..S321,331 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-B5010 |
KF#..S321,331 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B5020 |
KFVE..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS2 |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS2 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B5040 |
KFVE..S321,331 |
1 | ||
| 16332-B5020 |
KFVE..S321,331 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-B2030 |
KFVE..S321,331 |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 12118-B5010 |
KFVE..S321,331..PS2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS2 NO.1 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-B5080 |
KFVE..S321,331 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B5070 |
KFVE..S321,331 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 NO.1 |
1 | ||
| 90044-66032 |
KFVE..S321,331 NO.1 |
1 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 NO.1 |
1 | ||
| 90044-66032 |
KFVE..S321,331 NO.1 |
1 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16597 - HOSE, RESERVE TANK OUTLET, NO.2 | ||||
| 16503-B5010 |
KFVE..S321,331..PS2 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-66030 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 90044-67219 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| 96762-24045 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 2211 | ||||
| 8401 | ||||
(1504-1711)KFVE

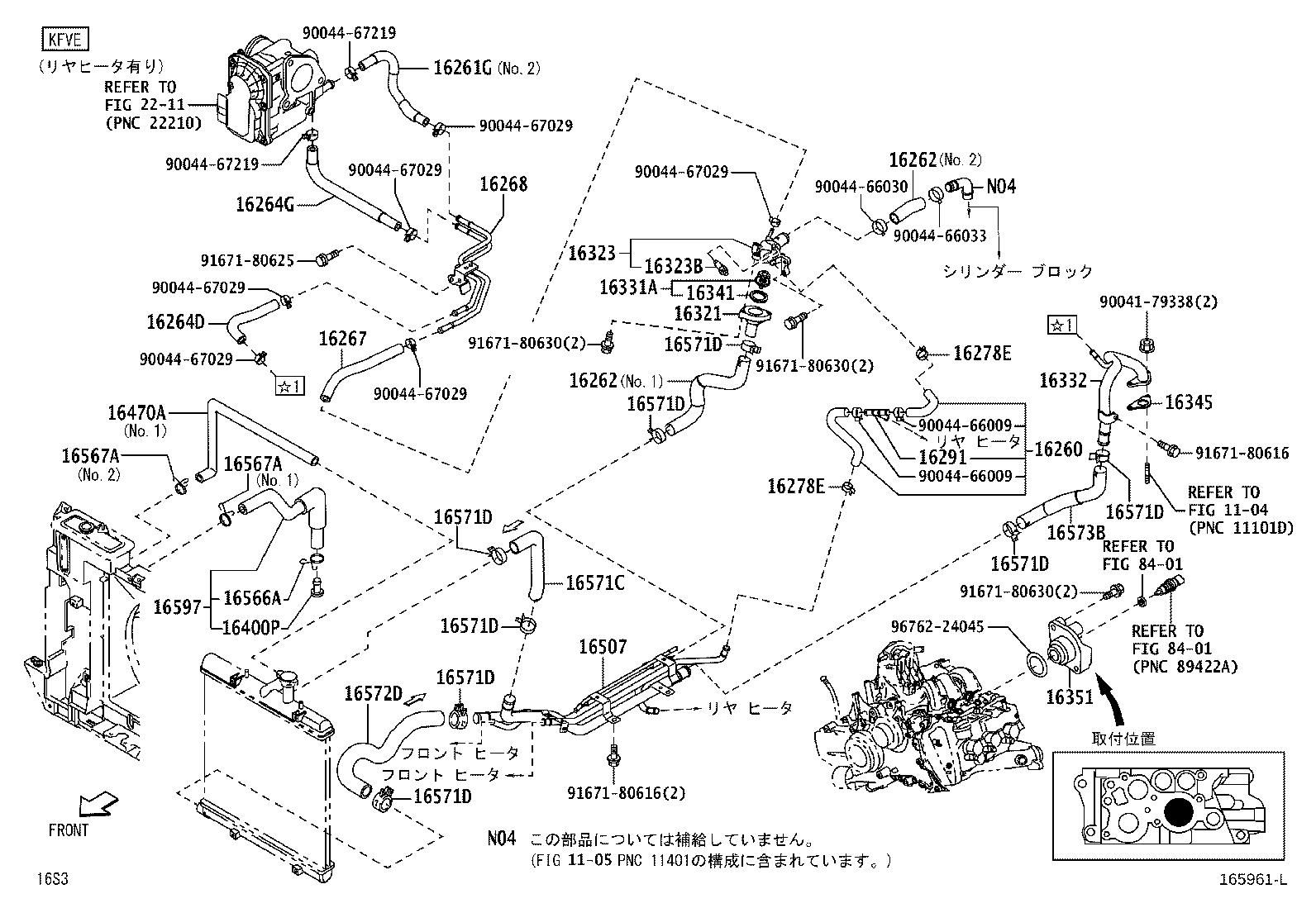

ﾎｰｽ(ﾘﾔﾋｰﾀｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B2030 |
KF#..S321,331..PS2 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B5050 |
KFVE..S321,331 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-B5010 |
KF#..S321,331 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-B5010 |
KF#..S321,331 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B5020 |
KFVE..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS2 |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS2 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-B2020 |
KF#..S321,331..PS2 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B5040 |
KFVE..S321,331 |
1 | ||
| 16332-B5020 |
KFVE..S321,331 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-B2030 |
KFVE..S321,331 |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 12118-B5010 |
KFVE..S321,331..PS2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS2 NO.1 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-B5080 |
KFVE..S321,331 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B5070 |
KFVE..S321,331 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 NO.1 |
1 | ||
| 90044-66032 |
KFVE..S321,331 NO.1 |
1 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFVE..S321,331..PS2 NO.1 |
1 | ||
| 90044-66032 |
KFVE..S321,331 NO.1 |
1 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16597 - HOSE, RESERVE TANK OUTLET, NO.2 | ||||
| 16503-B5010 |
KFVE..S321,331..PS2 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-66009 | ||||
| 90044-66030 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 90044-67219 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| 96762-24045 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 2211 | ||||
| 8401 | ||||
