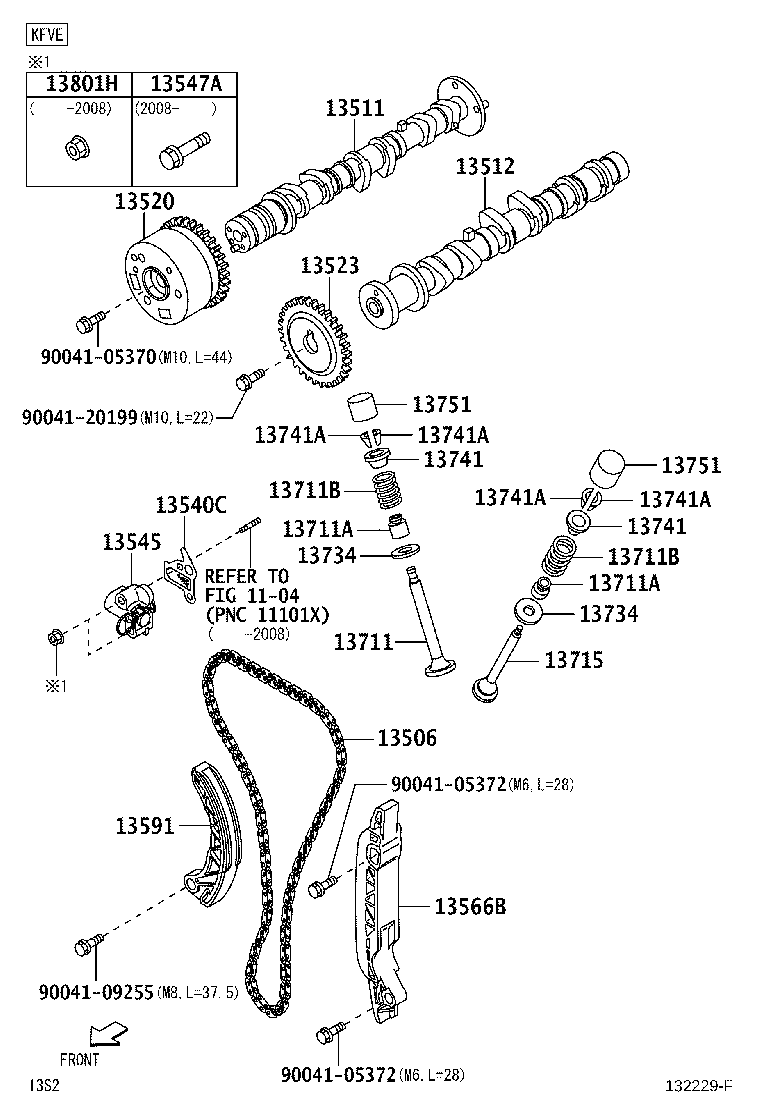

S321M-ZQGF3 (2015)
Toyota Pixis Van
(1504- )KFVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-B2110 |
KFVE..S321,331 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-B2011 |
KFVE..S321,331..PS2 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-B2030 |
KFVE..S321,331 |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-B2020 |
KFVE..S321,331 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-B2020 |
KFVE..S321,331 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-B2010 |
KFVE..S321,331 |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-B2020 |
KFVE..S321,331 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-B2011 |
KF#..S321,331..PS2 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-B2010 |
KF#..S321,331..PS2 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12030 |
KF#..S321,331 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12030 |
KF#..S321,331 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01926 |
KF#..S321,331..PS2 ｻﾝｺｰﾙ ﾌﾞﾙｰ |
12 | ||
| 90045-01915 |
KF#..S321,331..PS2 TOGO ﾗｲﾄｸﾞﾘｰﾝ |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01926 |
KF#..S321,331..PS2 ｻﾝｺｰﾙ ﾌﾞﾙｰ |
12 | ||
| 90045-01915 |
KF#..S321,331..PS2 TOGO ﾗｲﾄｸﾞﾘｰﾝ |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-B2010 |
KF#..S321,331..PS2 |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-B2011 |
KF#..S321,331..PS2 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-B2011 |
KF#..S321,331..PS2 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-B2010 |
KF#..S321,331..PS2 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-B2010 |
KF#..S321,331..PS2 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13015 |
KF#..S321,331..PS2 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13015 |
KF#..S321,331..PS2 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13015 |
KF#..S321,331..PS2 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13015 |
KF#..S321,331..PS2 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-B203010 |
KF#..S321,331..PS2 MARK10 |
12 | ||
| 13751-B203012 |
KF#..S321,331..PS2 MARK12 |
12 | ||
| 13751-B203016 |
KF#..S321,331..PS2 MARK16 |
12 | ||
| 13751-B203008 |
KF#..S321,331..PS2 MARK8 |
12 | ||
| 13751-B203014 |
KF#..S321,331..PS2 MARK14 |
12 | ||
| 13751-B203022 |
KF#..S321,331..PS2 MARK22 |
12 | ||
| 13751-B203018 |
KF#..S321,331..PS2 MARK18 |
12 | ||
| 13751-B203006 |
KF#..S321,331..PS2 MARK6 |
12 | ||
| 13751-B203034 |
KF#..S321,331..PS2 MARK34 |
12 | ||
| 13751-B203042 |
KF#..S321,331..PS2 MARK42 |
12 | ||
| 13751-B203030 |
KF#..S321,331..PS2 MARK30 |
12 | ||
| 13751-B203020 |
KF#..S321,331..PS2 MARK20 |
12 | ||
| 13751-B203024 |
KF#..S321,331..PS2 MARK24 |
12 | ||
| 13751-B203032 |
KF#..S321,331..PS2 MARK32 |
12 | ||
| 13751-B203038 |
KF#..S321,331..PS2 MARK38 |
12 | ||
| 13751-B203026 |
KF#..S321,331..PS2 MARK26 |
12 | ||
| 13751-B203044 |
KF#..S321,331..PS2 MARK44 |
12 | ||
| 13751-B203040 |
KF#..S321,331..PS2 MARK40 |
12 | ||
| 13751-B203046 |
KF#..S321,331..PS2 MARK46 |
12 | ||
| 13751-B203036 |
KF#..S321,331..PS2 MARK36 |
12 | ||
| 13751-B203028 |
KF#..S321,331..PS2 MARK28 |
12 | ||
| 13751-B203052 |
KF#..S321,331..PS2 MARK52 |
12 | ||
| 13751-B203048 |
KF#..S321,331..PS2 MARK48 |
12 | ||
| 13751-B203054 |
KF#..S321,331..PS2 MARK54 |
12 | ||
| 13751-B203050 |
KF#..S321,331..PS2 MARK50 |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-B203010 |
KF#..S321,331..PS2 MARK10 |
12 | ||
| 13751-B203012 |
KF#..S321,331..PS2 MARK12 |
12 | ||
| 13751-B203016 |
KF#..S321,331..PS2 MARK16 |
12 | ||
| 13751-B203008 |
KF#..S321,331..PS2 MARK8 |
12 | ||
| 13751-B203014 |
KF#..S321,331..PS2 MARK14 |
12 | ||
| 13751-B203022 |
KF#..S321,331..PS2 MARK22 |
12 | ||
| 13751-B203018 |
KF#..S321,331..PS2 MARK18 |
12 | ||
| 13751-B203006 |
KF#..S321,331..PS2 MARK6 |
12 | ||
| 13751-B203034 |
KF#..S321,331..PS2 MARK34 |
12 | ||
| 13751-B203042 |
KF#..S321,331..PS2 MARK42 |
12 | ||
| 13751-B203030 |
KF#..S321,331..PS2 MARK30 |
12 | ||
| 13751-B203020 |
KF#..S321,331..PS2 MARK20 |
12 | ||
| 13751-B203024 |
KF#..S321,331..PS2 MARK24 |
12 | ||
| 13751-B203032 |
KF#..S321,331..PS2 MARK32 |
12 | ||
| 13751-B203038 |
KF#..S321,331..PS2 MARK38 |
12 | ||
| 13751-B203026 |
KF#..S321,331..PS2 MARK26 |
12 | ||
| 13751-B203044 |
KF#..S321,331..PS2 MARK44 |
12 | ||
| 13751-B203040 |
KF#..S321,331..PS2 MARK40 |
12 | ||
| 13751-B203046 |
KF#..S321,331..PS2 MARK46 |
12 | ||
| 13751-B203036 |
KF#..S321,331..PS2 MARK36 |
12 | ||
| 13751-B203028 |
KF#..S321,331..PS2 MARK28 |
12 | ||
| 13751-B203052 |
KF#..S321,331..PS2 MARK52 |
12 | ||
| 13751-B203048 |
KF#..S321,331..PS2 MARK48 |
12 | ||
| 13751-B203054 |
KF#..S321,331..PS2 MARK54 |
12 | ||
| 13751-B203050 |
KF#..S321,331..PS2 MARK50 |
12 | ||
| 13801H - NUT | ||||
| 90041-79338 |
KF#..S321,331 M6 |
2 | ||
| 90041-70332 |
KF#..S321,331 M6 |
2 | ||
| Common parts | ||||
| 90041-05370 | ||||
| 90041-05372 | ||||
| 90041-09255 | ||||
| 90041-20199 | ||||
| Linked diagrams | ||||
| 1104 | ||||
