S321M-ZQGF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1504- )KFVE

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101J 11101V 11101X 11101X 11115 11155A 11159A 11401M 12282D 15330A 15678A 1603 1603 16334A 16341A 1701 1701 1701 58396L 8202 8401 8401 9004110073 9004C30008 9167180616 9167180630 9167180818 9167180820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-B2220

KFVE..S321,331

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-09258

KF#..S321,331..PS2

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637

KF#..S321,331..PS2

 8
11101D - BOLT, STUD(FOR WATER OUTLET)
90041-26006

KF#..S321,331

 2
90041-26001

KF#..S321,331

 2
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-B2030

KFVE..S321,331..PS2

 1
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFVE..S321,331

M8

 2
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFVE..S321,331

M8

 2
11155A - PIN, RING W/HEAD
90042-53010

KF#..S321,331..PS2

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

KF#..S321,331..PS2

 16
11401M - SENSOR, CRANK POSITION, NO.2
19311-B2011

KF#..S321,331

 1
12282D - HANGER, ENGINE, NO.2
12282-B2080

KFVE..S321,331

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90043-01262

KFVE..S321,331..PS2

 1
16334A - COVER, WATER OUTLET HOUSING
16334-B2020

KFVE..S321,331

 1
16341A - GASKET, WATER OUTLET
16341-B2040

KFVE..S321,331

 1
Common parts
90041-10073
9004C-30008
91671-80616
91671-80630
91671-80818
91671-80820
Linked diagrams
1603
1701
8202
8401

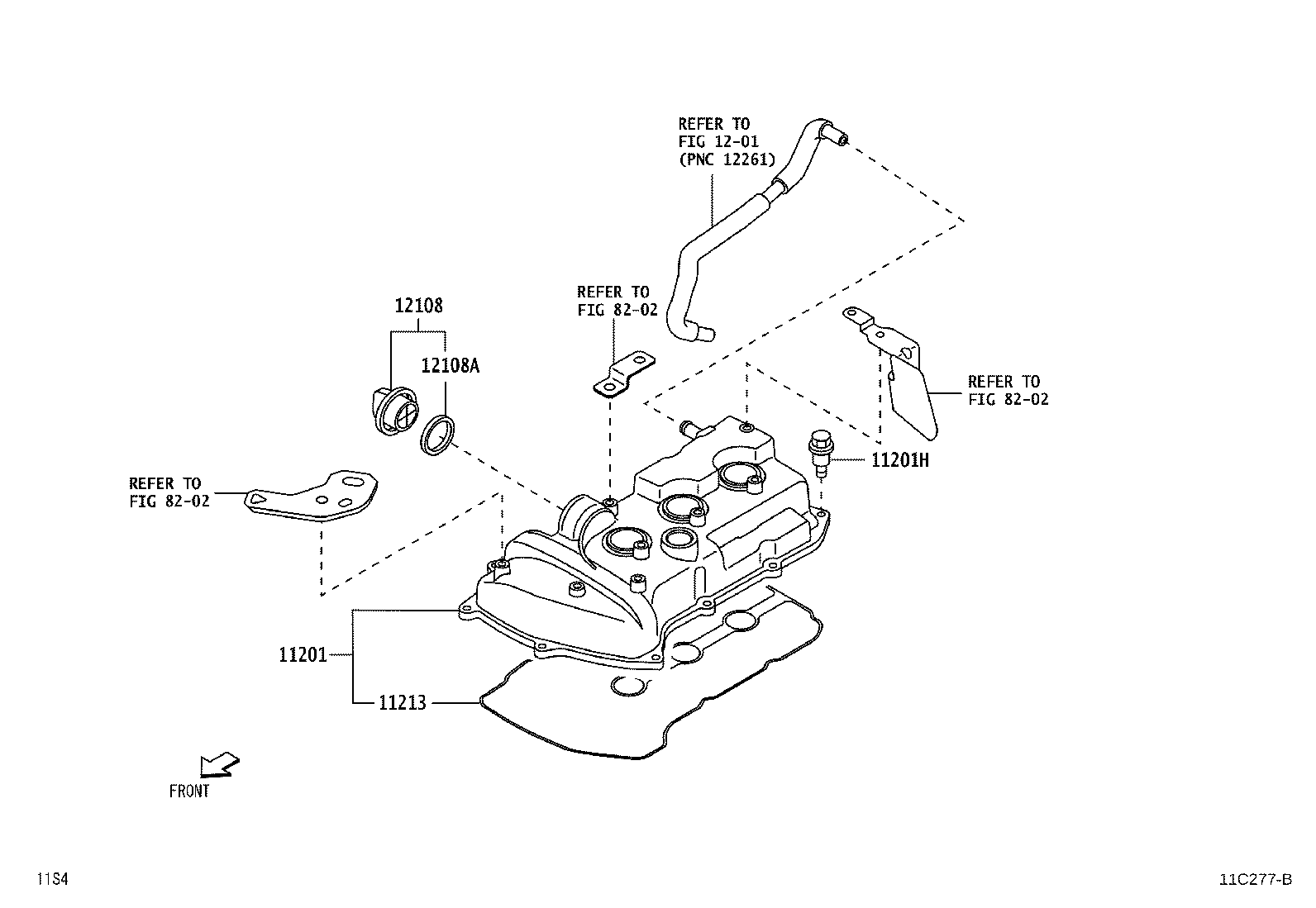

ILLUST NO. 1 OF 2(1504-1711)KFVE

Click highlighted areas on diagram

diagram 11201 11201H 11213 1201 12108 12108A 8202 8202 8202
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B2102

KF#..S321,331

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80620

KF#..S321,331..PS2

 10
11213 - GASKET, CYLINDER HEAD COVER
11213-B2050

KF#..S321,331..PS2

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97401

KF#..S321,331..PS2

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

KF#..S321,331..PS2

 1
Linked diagrams
1201
8202
