S321M-ZQDF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

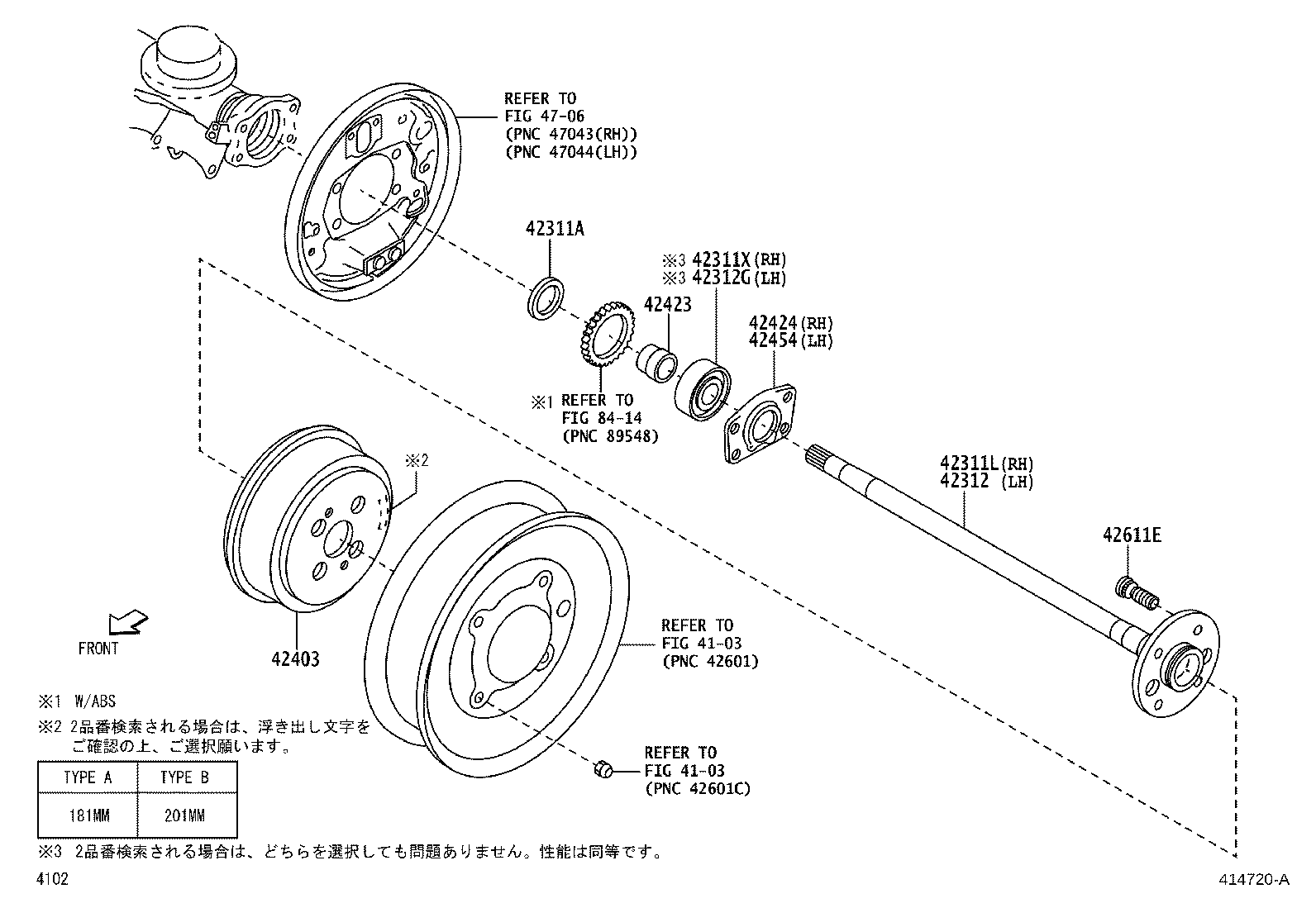

Click highlighted areas on diagram

diagram 4103 4103 42311A 42311L 42311X 42312 42312G 42403 42423 42424 42454 42611E 4706 8414
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90043-11291

S321,331

 2
90043-11291

S321,331

 2
42311L - SHAFT, REAR AXLE, RH
42311-B5010

S321,331..PS2

 1
42311X - BEARING (FOR REAR AXLE SHAFT INNER RH)
90043-63402

S321,331

NACHI

 1
42312 - SHAFT, REAR AXLE, LH
42312-B5010

S321,331..PS2

 1
42312G - BEARING (FOR REAR AXLE SHAFT INNER LH)
90043-63402

S321,331

NACHI

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-97501

S321,331..(DLX,SPL)..PS2

ﾀｲﾌﾟ A

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-87401

S321,331..(DLX,SPL)..PS2

 2
42423-97502

S321,331..(DLX,SPL)..PS2

ABS 有り

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-97501

S321,331..PS2

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-97501

S321,331..PS2

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12055

S321,331..PS2

 8
Linked diagrams
4103
4706
8414
