S321M-ZQDF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1504-1711)4FC

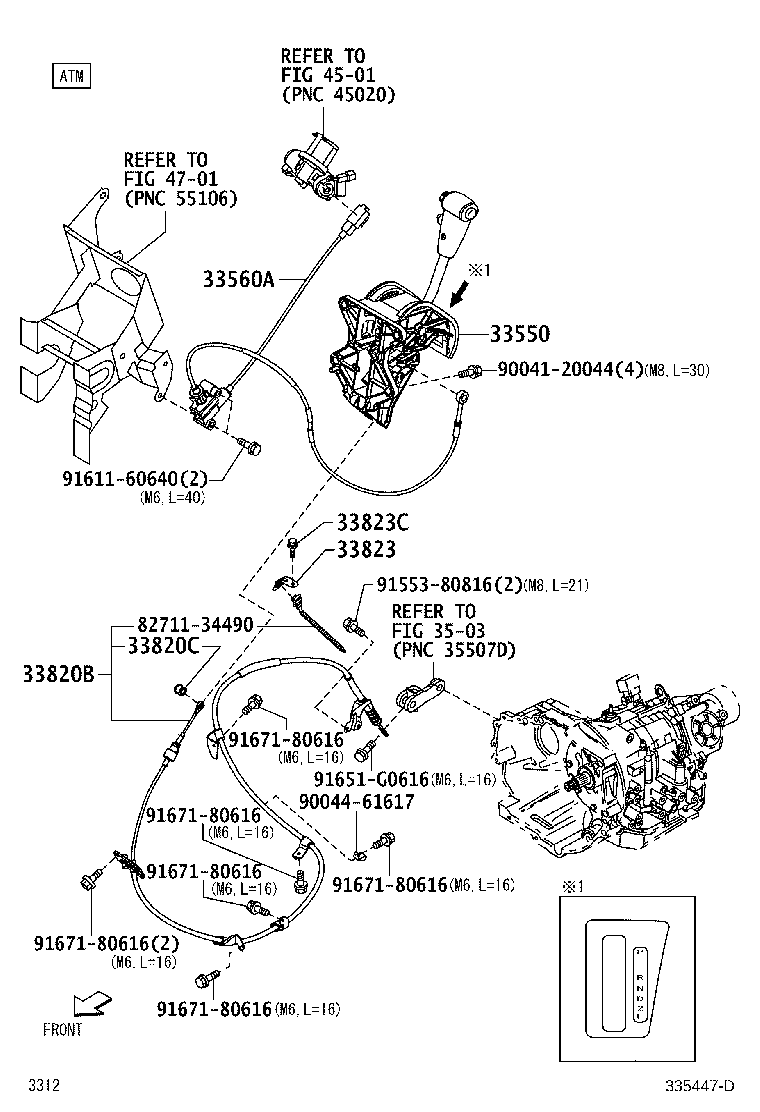

Click highlighted areas on diagram

diagram 33550 33560A 33820B 33820C 33823 33823C 3503 4501 4701 8271134490 9004120044 9004461617 9155380816 9161160640 91651G0616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-B5030B0

S321,331..4FC..PS2

GRAY,TRIM1#

 1
33560A - CABLE ASSY, SHIFT LOCK RELEASE
33560-B5012

S321,331..4FC

ｸﾗﾝﾌﾟ(黒)付き

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-B5100

S321,331..4FC

 1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
33835-B1010

S321,331..4FC..PS2

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-B5070

S321,331..4FC

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80614

S321,331..4FC

 1
Common parts
82711-34490
90041-20044
90044-61617
91553-80816
91611-60640
91651-G0616
91671-80616
Linked diagrams
3503
4501
4701
